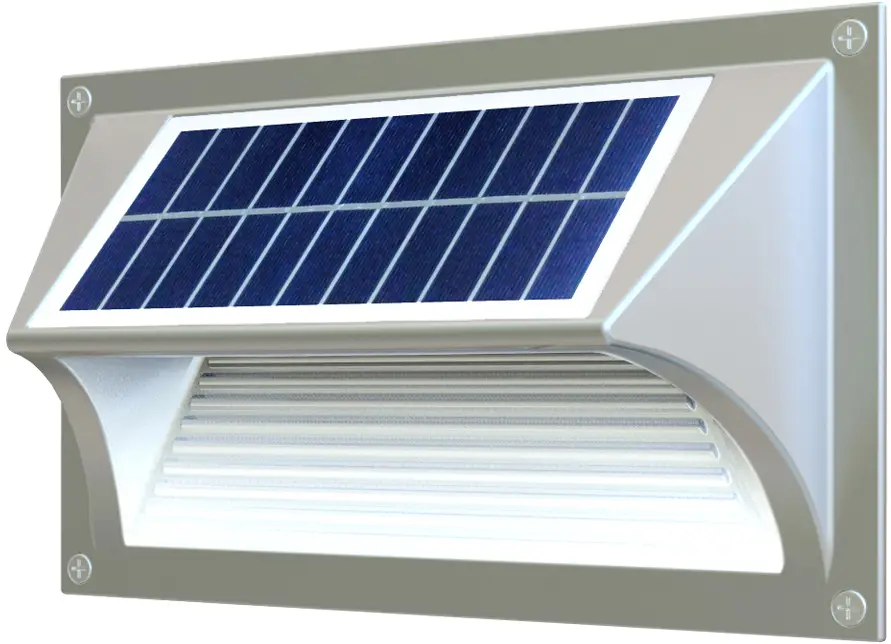

Xmart HL-STEP-06 Solar Lamp

HL-STEP-06 – TECHNICAL SPECIFICATIONS

• Luminosity (LM) 20
• Type Polycrystalline
• Capacity 1W

Li-Ion BATTERY

• Capacity: 3.7 Vdc/7.4 WH/2.000 mAH
• Charge & Discharge Temperature
  • Charge: 0 to/a 45 °C
  • Discharge: -20 to/a 60 °C
• Recharge Time: 11 H

ILLUMINATION

• Light Color Temperature: 3000K, Ra 80+
• Efficiency: 190 lm/W

OPERATION

• Backup (During cloudy days): Up to 3 nights
• Operation Modes: Automatic Turn-On, Turn-Off, and Battery Charge. Constant Bright all night
• IP Code: IP65
• Directives: CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
• Installation Height: < 2m

WARNING

1. Keep the device away from are and are a risk.
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
3. Do not remove the battery for other use. If backup time is too short, the lamp’s battery needs to be recharged under bright sunlight.
4. Clean solar panels regularly for more efficient operation and longer backups (Suggestion: At least every 6 months).
5. Long-term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion.
6. The operation temperature for this lamp must comply with Technical Specifications.

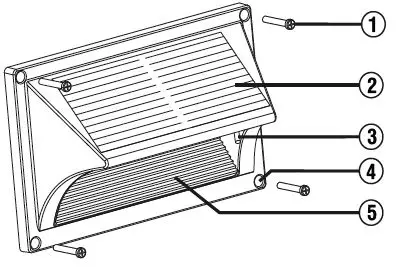

Parts Identification

1. Screw
2. Solar Panel
3. Switch
4. Fastening Hole
5. LED Light

Special Features:

• Polycrystalline Solar Panel
• Li-ion Rechargeable Battery
• Automatic Operation
• Material: Aluminum + ABS

Installation Instructions

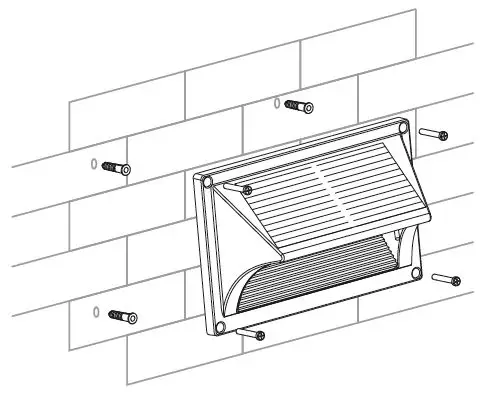

Drill the holes in the wall, insert wall plugs, and use screws to fix the lamp to the wall.

Solar Panels must be oriented toward the sun for battery charging efficiency.

IMPORTANT

1. Use standard installation accessories.
2. If stored, charge the lamp every 3 months, to avoid battery damage.
3. If stored for more than 1 year without charging, make a charge & discharge process to assure the battery is in good condition, otherwise, it is not allowed to use.

Operation Instructions

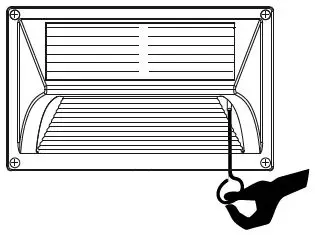

Use supplied key to click in the on/off switch hole to unlock the system and either start it up or shut it down.

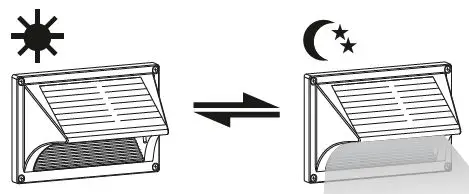

Automatic Operation:

• Auto turn-off for charging during daytime
• Auto turn-on for lightning at night

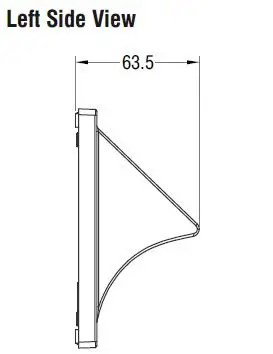

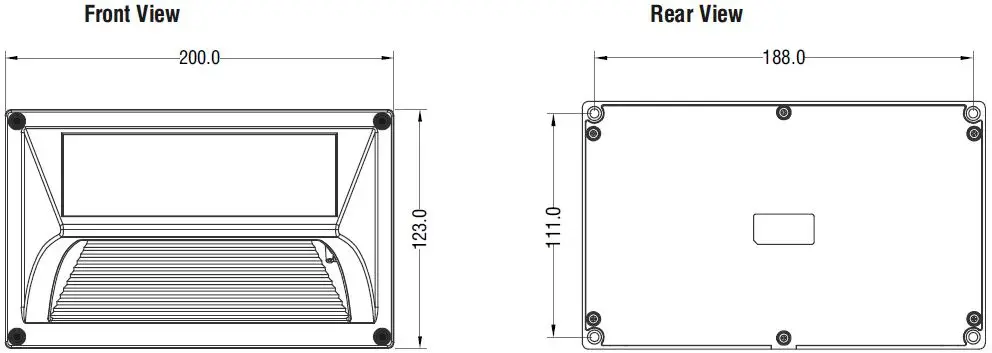

Dimensions

Packing Information

Net and Gross weight information is for reference purposes only.
