Xmart HL-WALL-20 Solar Lamp

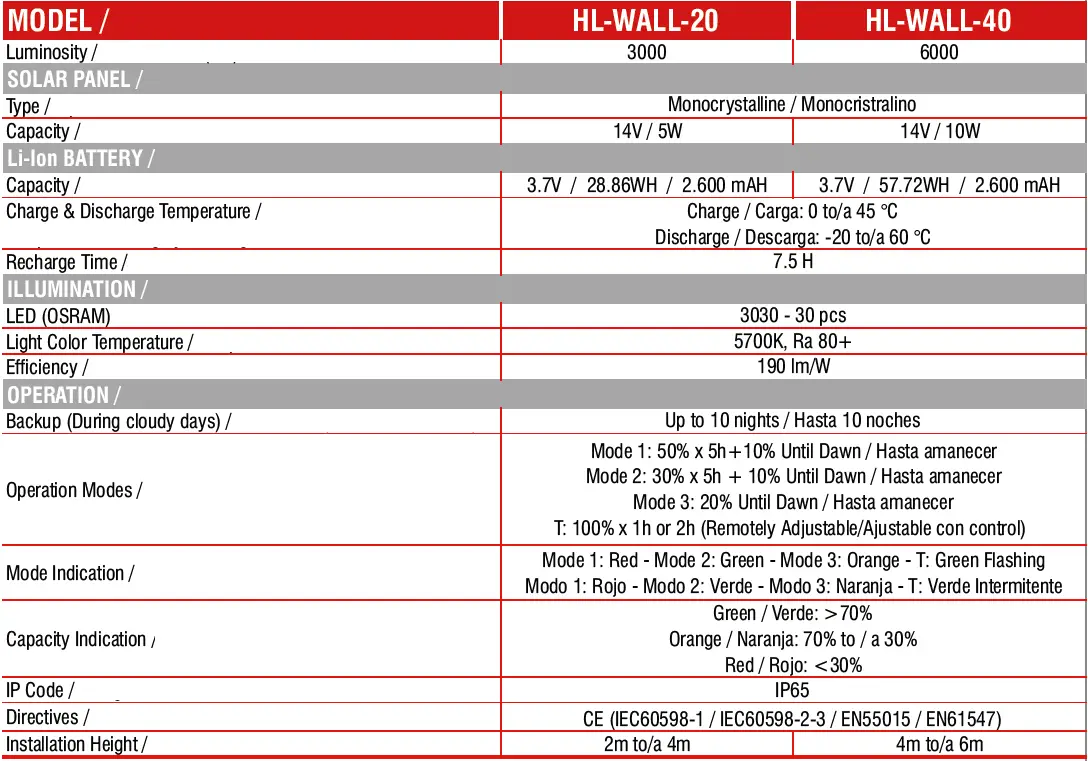

TECHNICAL SPECIFICATIONS
WARNING
- Keep the device away from TIre and tire risk
- There are no replaceable parts inside the lamp. If disassembled warranty will be void.
- Do not remove battery for other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
- Clean solar panel regularly for more efTIcient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
- Operation temperature for this lamp must comply with Technical Specitications

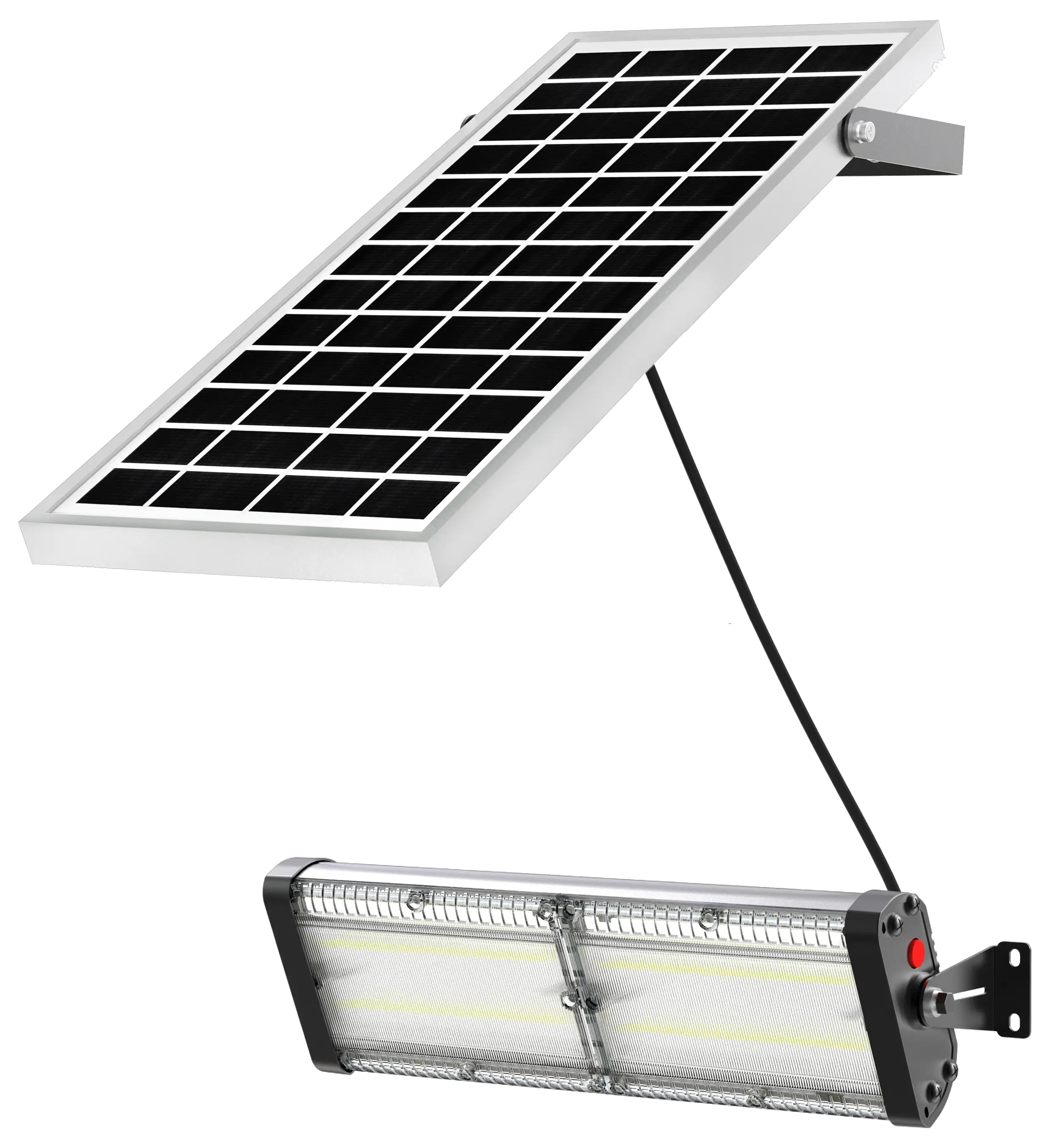

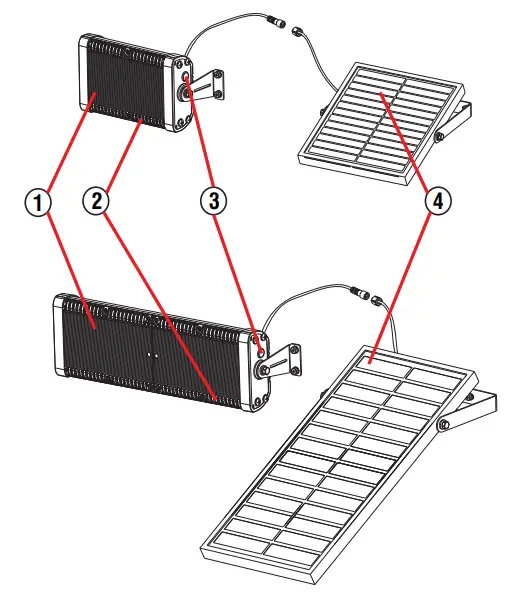

Parts Identification
Special Features: Monocrystalline Solar Panel Li-ion Rechargeable Battery sedoM noitarepO elbarugtinoC Material: Aluminum Alloy & PC
Installation Instructions

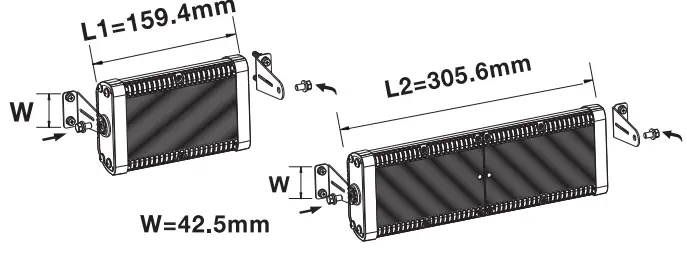

Fix Solar Panel Bracket to the wall:
- D1 (10W/5W): 6.5 mm F

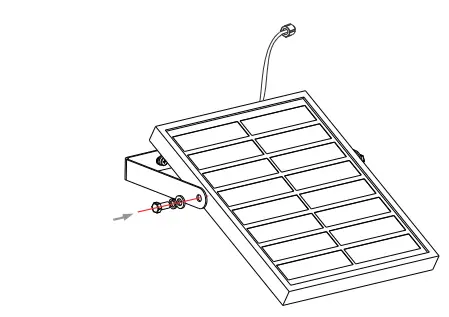

L1 (10W/5W): 100 mm - Screw Solar Panel to Bracket:
- Screw Lamp Bracket to the wall

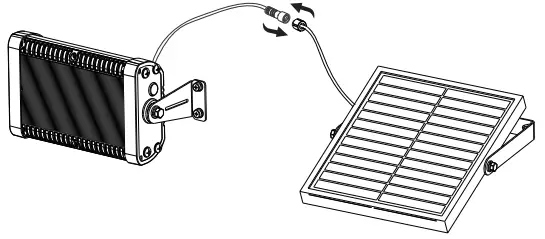

- Connect Lamp and Solar Panel cables
Solar Panel must be oriented toward sun for battery ycneictife gnigrahc
IMPORTANT
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge & discharge process to assure battery is in good condition, otherwise it is not allowed to use.
Operation Instructions

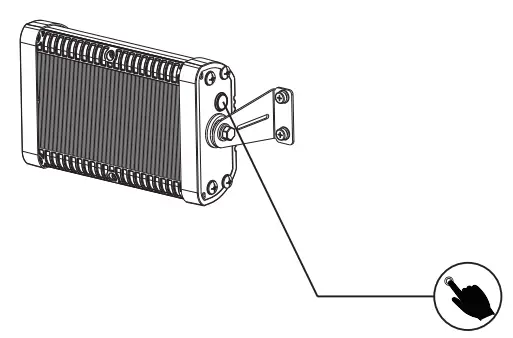

Power On/Off: Press switch for 1.5 Sec, approx.
Mode Change: Press switch shortly to choose Mode 1, Mode 2, or Mode 3.
Available Modes:
Mode 1 (Red): 50% x 5H + 10% Until dawn
Mode 2 (Green): 30% x 5H + 10% Until dawn
Mode 3 (Orange): 20% Until dawn
T Mode (Green Flasing): See note below
Select Operation Mode according to your own requirements
Battery Power Indication:
Green: > 70%
Orange: Between 30% and 70%
Red: < 30%
Note: Indicator LED regularly shows Battery Capacity. When changing Operation Mode it shows selected mode for 5 Sec, then it returns to show Battery Capacity

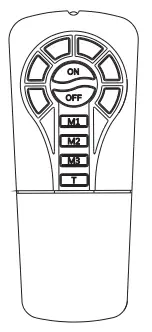

T Button on Remote Control
- Short press once for 100% bright for 1 hour
- Short press twice for 100% bright for 2 hours
- After selected time, lamp will go back to previous mode.
Dimensions

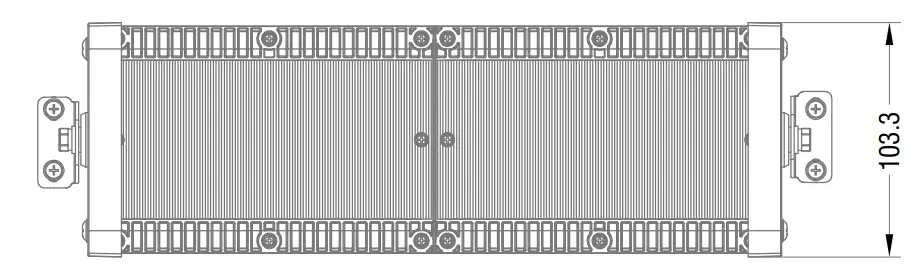

Top View

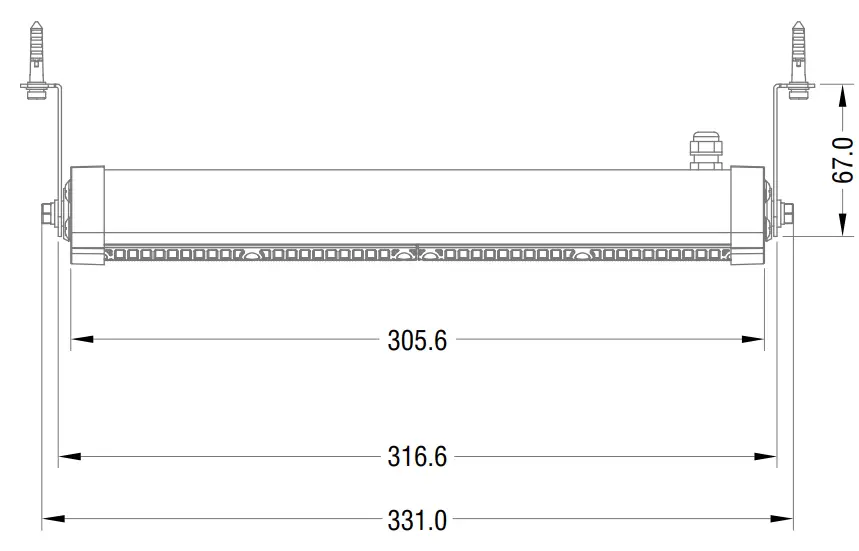

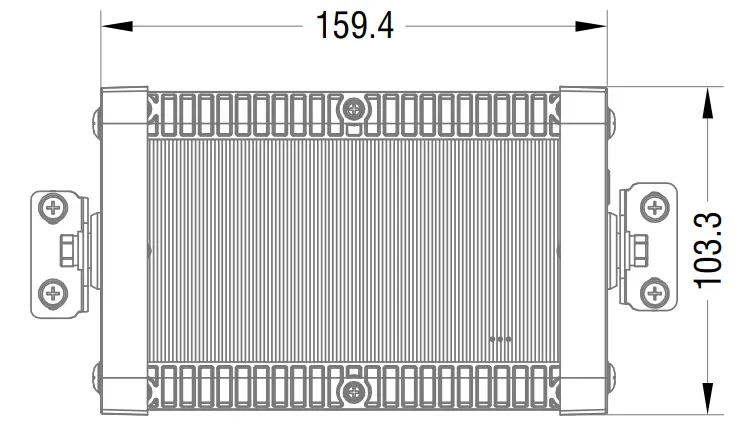

Front View

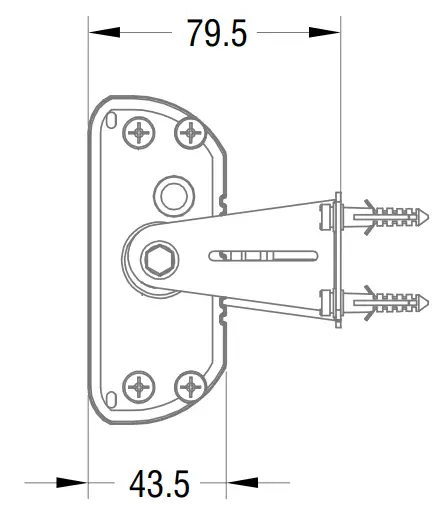

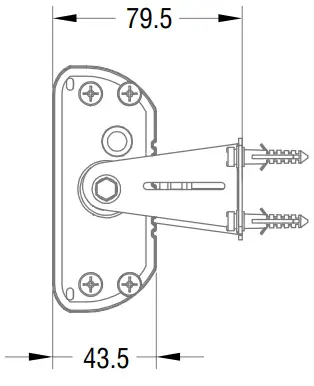

Right Side View

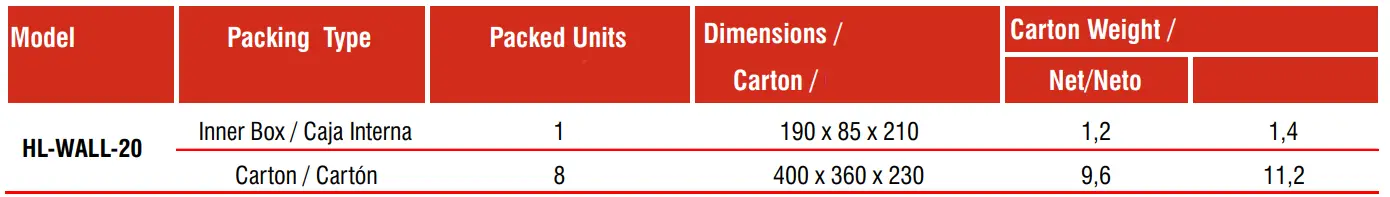

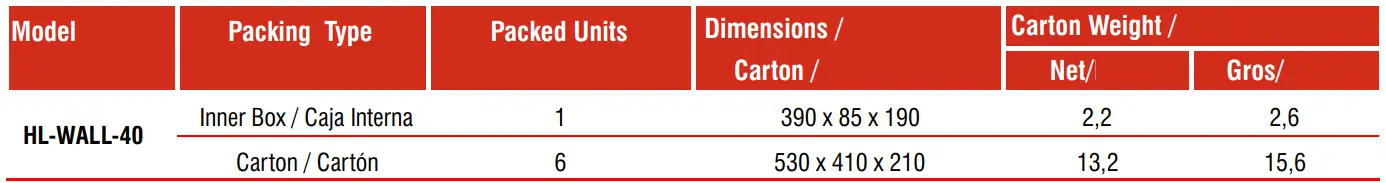

Packing Information
Net and Gross weight information is for reference purposes only
