Xmart HL-WALL-12 Solar Lamp

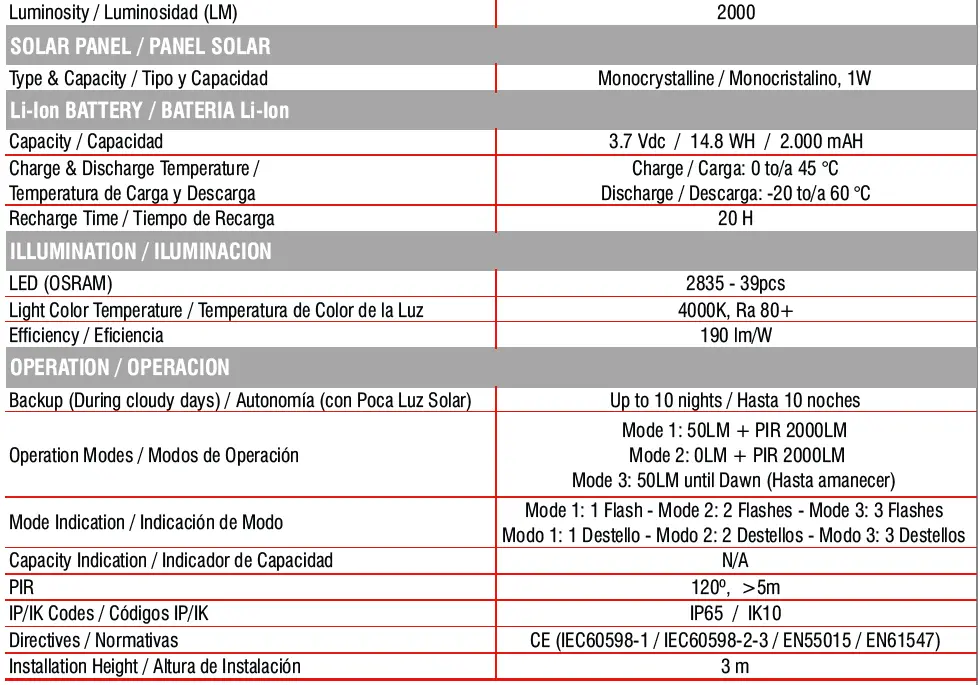

TECHNICAL SPECIFICATIONS
WARNING
- Keep the device away from fire and fire risk
- There are no replaceable parts inside the lamp. If disassembled warranty will be void.
- Do not remove battery for other use. lí backup time is too short, lamp’s battery needs to be recharged under bright sunlight
- Clean solar panel regularly for more efficient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
- Operation temperature for this lamp must comply with Technical Specifications

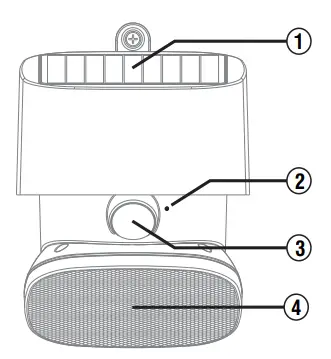

Parts Identification
- Solar Panel
- Switch
- PIR
- Lampshade
Special Features
- Polycrystalline Solar Panel
- Li-ion Rechargeable Battery
- Equipped With PIR Sensor
- Configurable Operation Modes
- Multi-angle Adjustable
- Multiple Installation Possibilities
- ABS&PC Case
- Compact Design, High Brightness

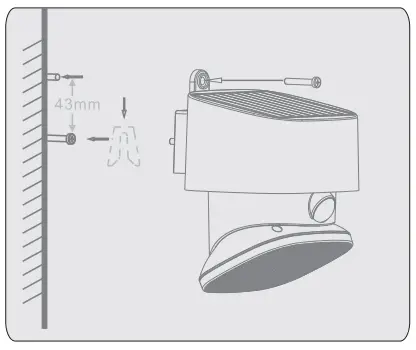

Installation Instructions
- Fix the lamp to the wall with screws
- Solar Panel must be oriented toward sun for battery charging efficiency

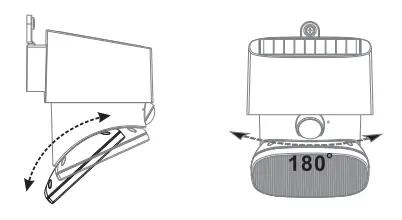

- Give lighting proper orientation by Vertical Sliding and/or Horizontally Moving
IMPORTANT
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge & discharge process to assure battery is in good condition, otherwise it is not allowed to use.
Operation Instructions

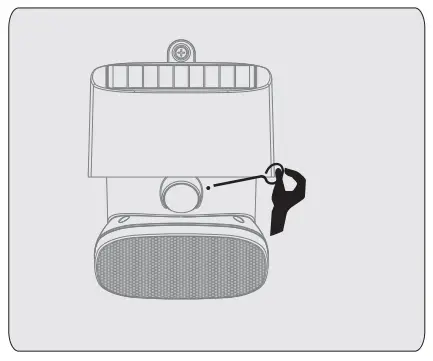

Mode Change: Press switch shortly to choose Mode 1, Mode 2, or Mode 3. Indicator LED will flash once when selecting Mode 1, twice when selecting Mode 2, and 3 times when selecting Mode 3
Available Modes:
- Mode 1: 50LM + PIR 1000LM x 10s
- Mode 2: 0LM + PIR 1000LM x 10s
- Mode 3: 50LM Until Dawn
Select Operation Mode according to your own requirements
Operation Mode Indicator:
- Mode 1: 1 Flash
- Mode 2: 2 Flashes
- Mode 3: 3 Flashes

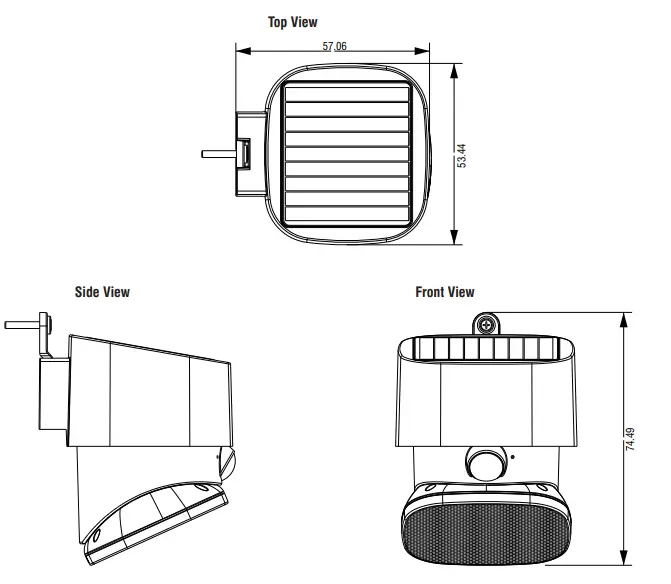

Dimensions

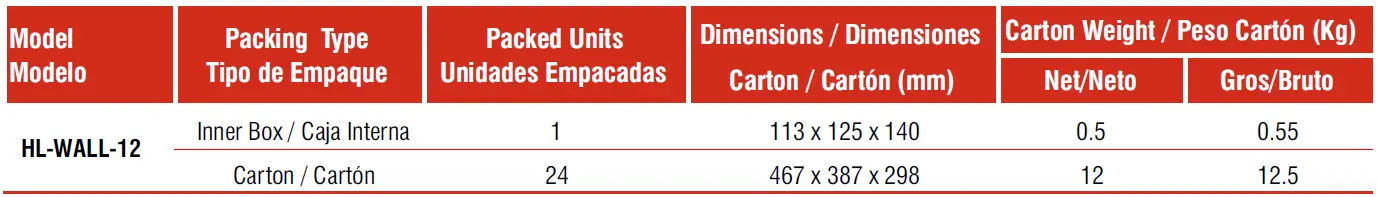

Packing Information
- Net and Gross weight information is for reference purposes only
