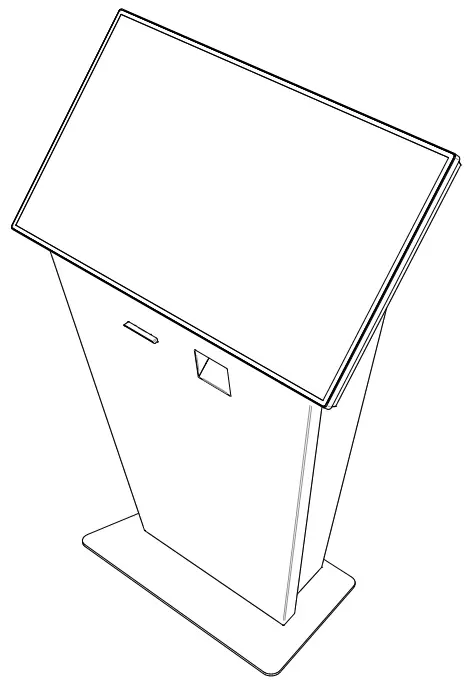

KIO430L-SLIM
USER MANUAL

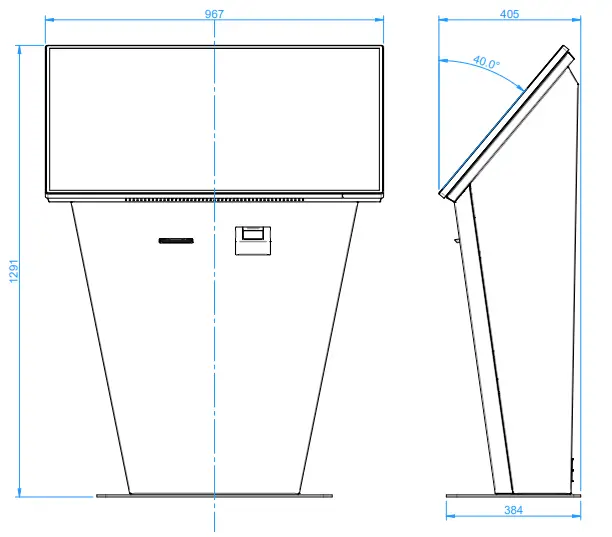

KIO430L-SLIM SPECIFICATIONS
- Touch Screen INTS430-4K
• 43” active viewable area
• 10-point PCAP multi-touch
• HDMI & DisplayPort input
• 3840 x 2160 Native Resolution - Scanner Datalogic Gryphon GFS4400 (OPTIONAL)
• Reads 1D & 2D barcodes
• Wide-angle field-of-view
• Reads QR Codes
• Programmable for “Always On”
or “Object Sense” mode - Printer VKP80ii Custom (OPTIONAL)
• Direct thermal printing
• Industrial Auto-Cutter
• Max. print width 82.5mm
• Anti Jamming System

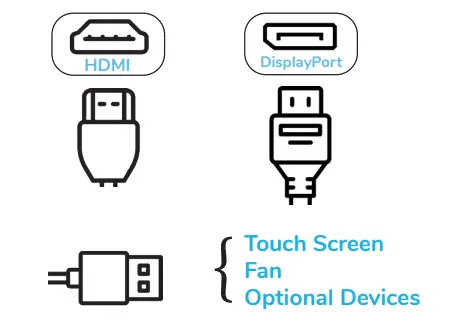

CABLING INFORMATION
Step 1. Connect your desired display cable. (HDMI recommended)
Step 2. Connect all USB devices.
Step 3. Connect your PC power cable to the internal power board.

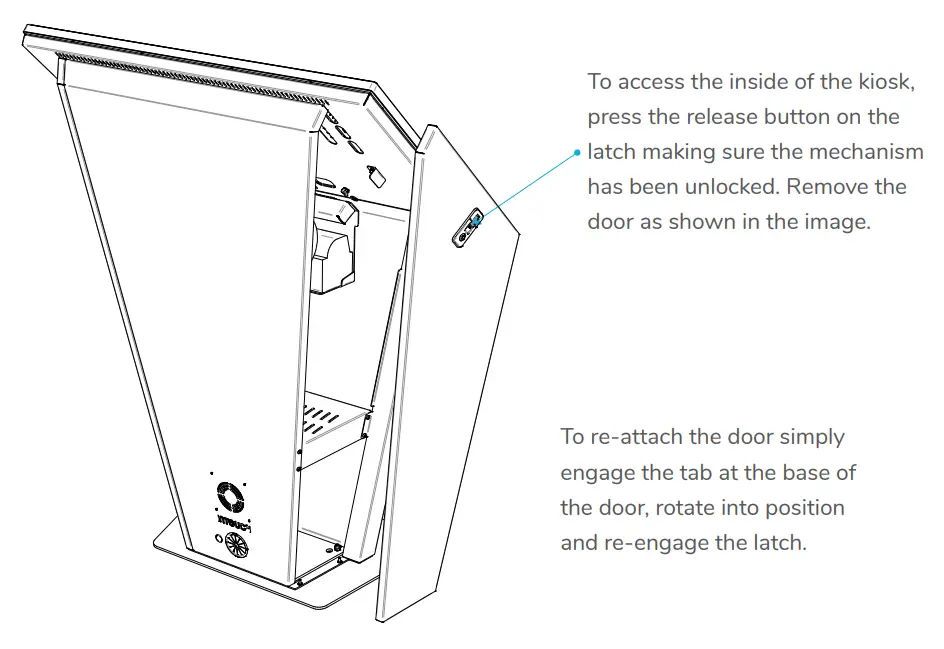

KIO430L-SLIM INTERNAL ACCESS
OPTIONAL ACCESSORIES*
*Not shown in illustrations
- Printer
- 2D Scanner (Barcode & QR code)
- EFTPOS Support & Integration
- RFID / Mag. Card Reader
Talk to us about your device needs! ([email protected])

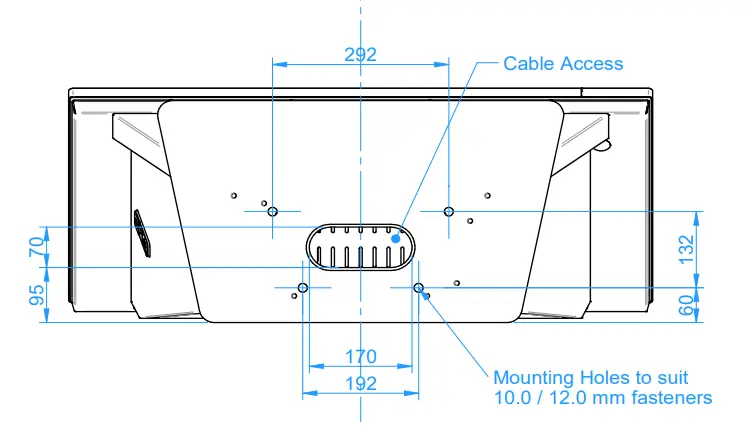

SECURING YOUR KIOSK TO THE FLOOR (OPTIONAL)
For further information on securing your kiosk, do not hesitate to contact us at [email protected]
CLEANING INSTRUCTIONS
COPYRIGHT 2021 – INTOUCH SCREENS
Applicable to touch screens and kiosks:
InTouch suggests using an isopropyl alcohol spray and a clean microfibre cloth.
Caution: Be careful when cleaning your kiosk to avoid vinyl graphic areas so as not to damage the artwork.
DO NOT use abrasive cleaners, solvents, or cloths.
For more information please visit www.intouchscreens.com.au/cleaning
WARRANTY
For more information please visit www.intouchscreens.com.au/warranty
FOR MORE INFORMATION
Telephone 02 9939 6251
[email protected]
[email protected]
www.intouchscreens.com.au
