SKU: CKU-7050
USER MANUAL
Please read these instructions carefully before use. Operating this fixture according to these instructions are important to avoid any possible damage or accidents caused by
misuse.
Contents of Package
- AirPar COB QUAD
- IR Remote
- Power Supply
- User Manual
Safety
Caution! Opening this unit voids the warranty. Contact ColorKey for any service requests.
Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture.
Caution! Avoid direct eye exposure with the fixture when on.
- This fixture is for indoor use only.
- This fixture must be installed a minimum distance of 5 meters (16’4”) away from any lighted objects.
- Do not install or operate this fixture near flammable materials.
- This device must be installed, operated, and maintained by a qualified professional.
- Please check if the voltage is in accordance with the rated power before installing.
- Do not operate this fixture if the power cord has been damaged. Turn off the fixture and replace it with a power cord of a similar rating.
Service & Support
Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/
You can also reach us by phone Monday thru Friday, 8:30 am – 5 pm PST at (818) 578-4030.
Introduction
IntroductionThank you for purchasing the ColorKey AirPar COB QUAD!
The airport is part of the ColorKey Air Series, an ecosystem of battery-powered, wireless
DMX lighting fixtures, with a wireless DMX hub for greater control and connectivity options.
All Air Series fixtures also include an integrated W-DMX transceiver for instant wireless connectivity. This enables any Air Series fixture to wirelessly control your entire Air Series rig.
It’s now easier than ever to fill a room with color by simply setting all the fixtures to the same wireless group ID and watching them automatically connect and synchronize.

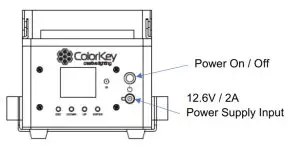

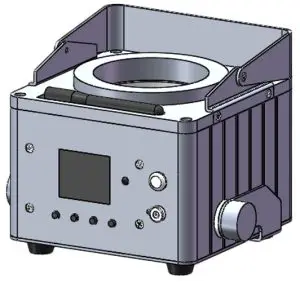

Power & Charging
The AirPar COB QUAD features a rechargeable lithium-ion battery for wire-free use. The battery can power the light for up to 20 hours from a full charge. An adaptive power supply with an input voltage range of 100 to 240 VAC 50/60Hz is also included.
The battery charges whenever the included power adapter is connected and plugged into a power source. The light can be used while charging. If the light is plugged in and not in operation, make sure it is turned off. The indicators on the LED Menu Display show how much battery life remains available.
The included power supply features a charging status LED. Red indicates that the battery is charging and green that charging is complete.

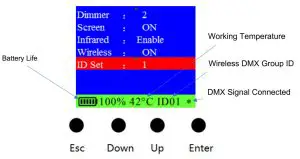

Display Operation
ESC: Navigate to the previous higher-level menu item.
Down: Scrolls through the menu items and numbers in descending order.
Up: Scrolls through the menu items and numbers in ascending order
Enter: This is used to select and confirm/store the current menu selection
| Address | Set DMX Address (001 to 512) |
| Channel | Set DMX Channel Mode (3, 6, 8, 11) |
| Slave | Set light to Slave or Master |
| Auto | Activate Auto mode and adjust speed (1-15) |
| Fade | Activate Fade mode and adjust speed (1-15) |
| Color | Set light to Color mode and scroll through preset colors (1-15) |
| Sound | Set light to Sound Active mode and adjust sensitivity (1-10) |
| Red | Adjust Red dimmer (000-255) |
| Green | Adjust Green dimmer (000-255) |
| Blue | Adjust Blue dimmer (000-255) |
| White | Adjust White dimmer (000-255) |
| Strobe | Turn on Strobe and adjust speed (1-15) |
| Dimmer | Adjust Dimmer curve (Linear, Curve, Theatre, Studio) |
| Screen | Set OLED display to turn off after 30 seconds |
| Infrared | Enable / Disable Infrared Remote Control |
| Wireless | Enable / Disable Wireless DM |
| ID Set | Set Wireless ID group from ID00 to ID15 |

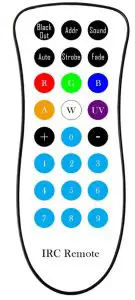

Infrared Remote (IR) Control
To use the IR remote, simply point the remote at the IR receiver on the lighting fixture.
The IR receiver on the AirPar COB QUAD is located to the right of the OLED on the side panel.
Black Out
Black Out mode instantly turns all LEDs off.
Press the Black Out button to engage or disengage Black Out mode.
Addr
Address mode enables you to set the DMX address of the fixture.
To set up a new DMX address, Press the Add button, then press (+) or (-) to increase or decrease the DMX Address Value.
Sound
Sound-Active mode enables the light to respond to ambient sounds in the room using the fixture’s built-in microphone.
Press the Sound button to activate Sound-Active mode. Press (+) or (-) to increase or decrease sound sensitivity based on the playback level of the music.
Auto
In Auto mode, the light loops through various preprogrammed colors.
To turn on Auto mode, press the Auto button, then press (+) or (-) to increase or decrease the speed of the program.
Strobe
In Strobe mode, the light will flash at the desired rate.
To turn on Strobe mode, press the Strobe button, then press (+) or (-) to increase or
decrease the strobing rate. You can change the color using manual color mixing (more below).
Fade
In Fade Mode, the light creates smooth, gradual color transitions.
To turn on Fade mode, press the Fade button, then press (+) or (-) to increase or decrease the speed of the program.
Manual Color Mixing
The AirPad is capable of creating an almost unlimited number of colors by mixing the
Red, Green, Blue, and White LEDs.
To begin mixing colors, press the Red (R), Green (G), Blue (B), or White (W) button, then press (+) or (-) to increase or decrease the brightness of each color. Continue with the next color until you achieve your desired color.
Color Presets
10 preset colors can be accessed from the IR Remote. Press any number between (0) and (9) to set a color.
| 0 – Red 1 – Green 2 – Blue 3 – White 4 – Yellow | 5 – Magenta 6 – Cyan 7 – Pink 8 – Teal 9 – Lavender |
DMX Values
3. channel mode
Channel | Value | Function |
| 1 | 000-255 | Hue |
| 2 | 000-255 | Saturation |
| 3 | 000-255 | Value |
4. channel mode
Channel | Value | Function |
| 1 | 000-255 | Red |
| 2 | 000-255 | Green |
| 3 | 000-255 | Blue |
| 4 | 000-255 | White |
6. channel mode
| Channel | Value | Function |
| 1 | 000-255 | Master Dimmer |
| 2 | 000-255 | Red |
| 3 | 000-255 | Green |
| 4 | 000-255 | Blue |
| 5 | 000-255 | White |
| 6 | 000-255 | Strobe |
9. channel mode
Channel | Value | Function |
| 1 | 000-255 | Master Dimmer |
| 2 | 000-255 | Red |
| 3 | 000-255 | Green |
| 4 | 000-255 | Blue |
| 5 | 000-255 | White |
| 6 | 000-255 | Strobe |
| 000-015 | None | |
| 7 | 016-095 096-175 | Auto Mode Fade Mode |
| 176-255 | Sound Active | |
| 8 | 000-255 | Dimmer Speed |
| 000-005 | Menu Default | |
| 006-065 | Linear Dimmer Mode | |
| 9 | 066-125 | Curve Dimmer Mode |
| 126-185 | Theatre Dimmer Mode | |
| 186-255 | Studio Dimmer Mode |
Setup Examples
Master / Slave
The AirPar COB QUAD includes an integrated W-DMX transceiver for instant wireless connectivity. This enables the airport to wirelessly control any Air Series fixture in the same wireless group. To achieve this, simply set an airport to Master and all other fixtures to Slave. Turn on wireless on all fixtures and set them to the same wireless group ID.
IR IR ESC DOWN UP ENTER AIR HUBD M X ESC DOWN UP ENTER ESC DOWN UP ENTER
Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signals to Slave units which will react in synchronization. When a fixture is set into ‘Slave Mode’, this fixture will receive the Master signal. COB QUAD COB QUAD

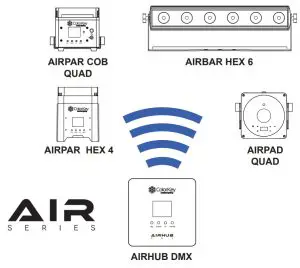

AirHub DMX
The AirHub DMX (available separately) is the central hub used to remotely control all Air Series fixtures. It is a battery-powered wireless DMX transceiver with 16 wireless groups (00-15) and features built-in presets including static colors, auto, fade, and sound active mode. IR ESC DOWN UP ENTER
To make a connection, simply set the AirHub and AirPar COB QUAD to the same group ID.

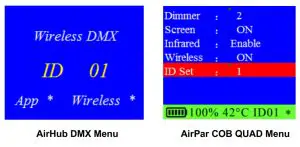

Both units are set to ID01 in the example below.
DMX Controller
For greater control of your AirPar COB QUAD, connect to any DMX controller via the AirHub DMX using standard 3-pin DMX cables, or to most DMX controllers with 2.4Ghz transmitters. AirPods connected to a DMX controller via the AirHub can still be addressed independently.
Troubleshooting
| Problem | Solutions |
| No DMX control | · Confirm the Wireless Group ID is the same as the transmitter · Make sure the fixture is in DMX mode · Make sure wireless is enabled on your airport · Make sure a DMX cable is properly connected to your DMX controller |
| Fixture does not respond to sound | · Make sure the fixture is in Sound Active mode. |
| IR Remote will not respond | · IR Remote will not respond to any inputs when the Black Out mode is enabled. If the remote is not responding when a button is pressed, try pressing (Black Out). It may already be in Black Out Mode thus rendering the light-dark. |
Technical Information
- 30W 4-in-1 COB RGBW LEDs
- Chip-on-Board (COB) LED produces bright, even colors
- Beam Angle: 25˚
- DMX Channels: 3 / 4 / 6 / 9 channels
- Built-in W-DMX transceiver for 2.4Ghz wireless connectivity
- Lithium-Ion battery (+/-) 20 hours single color; (+/-) 6 hours full color, (+/-) 5 hours charge time
- Control modes: W-DMX, DMX 512, IR Remote, Master /Slave, Sound Active, Stand Alone
- Dimming: 0-100%
- Lamp rated life: >50000 Hours
- Flicker-Free
- Working temperature: up to 40˚C
- Power consumption: 30W
- Power supply: AC100-240V;50-60Hz
- Product size: 5.5in x 5x5in x 4.5in
- Net Weight: 4.6lb
Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to the user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at [email protected].
