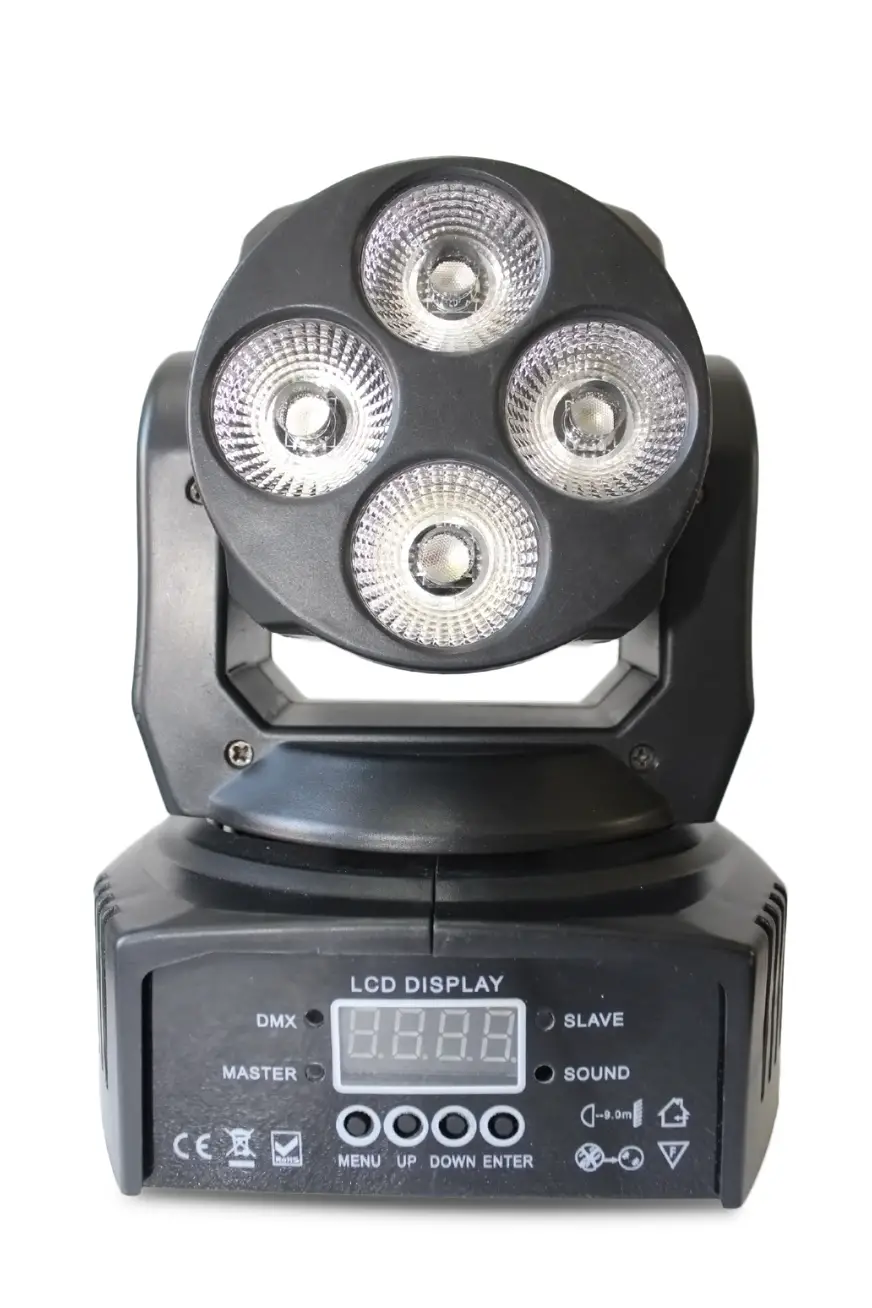

ColorKey CKU-5037 Mover Miniwash QUAD 4 MKII

Introduction

Thank you for purchasing the ColorKey Mover Miniwash QUAD 4. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse.

Packing list

1x Mover Miniwash QUAD 4 moving head fixture
1x Bracket
1x Power cord
User Manual

Safety

Caution! Opening this unit voids the warranty. Contact ColorKey for any service requests. Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture.
Caution! Avoid direct eye exposure with the fixture when on.

This fixture is for indoor use only.
This fixture must be installed a minimum distance of 5 meters (16’4”) away from any lighted objects.
Do not install or operate this fixture near flammable materials.
This device must be installed, operated, and maintained by a qualified professional.
Do not touch the fixture with bare hands during operation as the surface temperature of the fixture can exceed 60˚C (140˚F). Turn off the power and wait 15 minutes for the fixture to cool before attempting to touch it.
Please check if the voltage is in accordance with the rated power before installing.
Do not operate this fixture if the power cord has been damaged. Turn off the fixture and replace with a power cord of a similar rating.

Display Operation

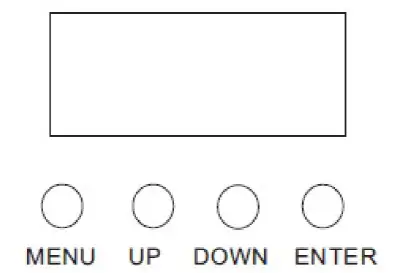

MENU: Access the menu/Scroll through menu options
ENTER: Open/Select the current menu option
UP: Scroll through menu selection or parameter increase
DOWN: Scroll through menu selection or parameters decrease

Menu Guide

Addr	A001-A512	DMX 512
CHnd	14CH	14 channel
CHnd	16CH	16 channel
Inu	Pan	X-axis (motor) forward/backward running(PAN)
Inu	tlLe	Y-axis(motor) forward/backward running(TILT)
Stat	CH01	Channel 1(Manual)
	CH02	Channel 2(Manual)
	– – –	– – –
	CH16	Channel 16(manual)
Auto	Aut1	Auto1
	Aut2	Auto2
	Aut3	Auto3
	Aut4	Auto4
Soun	Sou1	Sound active 1
	Sou2	Sound active 2
	Sou3	Sound active 3
	Sou4	Sound active 4
	Sou5	Sound active 5
REST	YES	Reset
dISP	no	Backward display (LED display)
dISP	YES	Forward display (LED display)

DMX Values

14 Channel mode

Ch	Function	Value
1	PAN running	0-255
2	TILT running	0-255
3	Speed adjustment	0-255
4	Dimmer	0-255
5	Strobe (from slow speed to fast speed)	0-255
6	Red dimming	0-255
7	Green dimming	0-255
8	Blue dimming	0-255
9	White dimming	0-255
10	Motor	0-15 (no function)
		16-128 (fast speed Auto running & “sound active function” off)
		129-255 (slow speed Auto running & “sound active function” on)
11	Sensitivity adjustment (Sound active)	0-255
12	Colors	0-140 (change colors)
12	Colors	141-255 (sound active with changing colors)
13	Colors changing speed adjustment	0-250
14	No function	0-249
14	Reset	250-255

16 Channel mode

Channels	Function	Value
1	PAN running	0-255
2	Hint adjustment (PAN)	0-255
3	TILT running	0-255
4	Hint adjustment (TILT)	0-255
5	Speed adjustment	0-255
6	Dimmer	0-255
7	Strobe (from slow speed to fast speed)	0-255
8	Red dimming	0-255
9	Green dimming	0-255
10	Blue dimming	0-255
11	White dimming	0-255
12	Motor	0-15 (no function)
		16-128 (fast speed Auto running & “sound active function” off)
		129-255 (slow speed Auto running & “sound active function” on)
13	Sensitivity adjustment (Sound active)	0-255
14	Colors	0-140 (change colors)
14	Colors	141-255 (sound active with changing colors)
15	colors changing speed adjustment	0-250
16	No function	0-249
16	Reset	250-255

DMX Connections

DMX Cable：

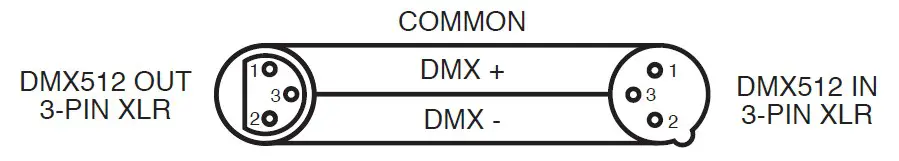

The Mover Miniwash QUAD 4 can be controlled via DMX using a 3-pin XLR connection.

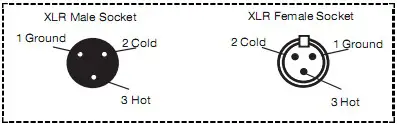

The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal

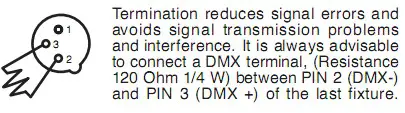

Noted: In order to avoid failures and interference signal transmission，we connect a resistance120Ω （ 1/4W ） at the end of the DMX connecting as below:

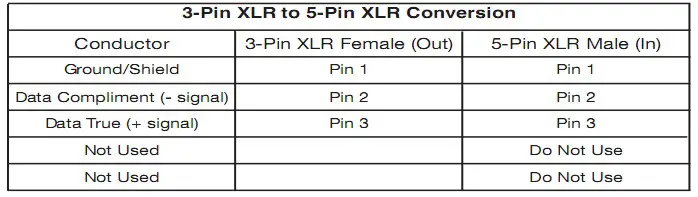

The Conversion between 3 pin and 5 pin XLR

If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable

Master/Slave Mode Operation

Master/Slave
Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. When a fixture is set into ‘Slave Mode’, this fixture will receive the Master signal. To avoid master signal and DMX signal interference, do not connect DMX when using Master/Slave mode. If using a DMX run longer than 60 meters and/or over 32 units, a signal amplifier may be required.
***Please note that Mover Miniwash QUAD 4 MKII will only work with other Mover Miniwash QUAD 4 MKII models and not the first generation model (CKU01-5033).***

Troubleshooting

Problem

Solutions

No DMX control

□ Make sure that the DMX cable is properly connected

□ Make sure that the DMX controller is operational

□ Check the DMX cable for tears or breaks

□ Make sure that the fixture is in DMX mode

Fixture does not respond to sound

□ Make sure that the fixture is in Sound Active mode.

Technical Information

Power supply: AC110V-240V; 50-60HZ
Power consumption: 60W
Light source: 4 x 12W 4-in-1 LED’s (RGBW)
Life span: up to100,000 hours
Beam Angle: 25˚
Channel: 14ch/16ch
Control: Auto, Sound active, DMX512, Master/slave
Pulse frequency: 0-10HZ
Dimming: 0-100%
Pan: 540˚
Tilt: 270˚
IP rate: IP20

Notice to the consumer: ColorKey offers a 2-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product.

Please note: We recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at [email protected].
