Critical Tattoo First Wireless Universal Battery User Manual

UNIVERSAL
BATTERY

THE CRITICAL UNIVERSAL BATTERY IS THE FIRST WIRELESS BATTERY PACK THAT UTILIZES THE CRITICAL CORE™ – CREATED FOR CONSISTENT POWER AND EXTREME ACCURACY.

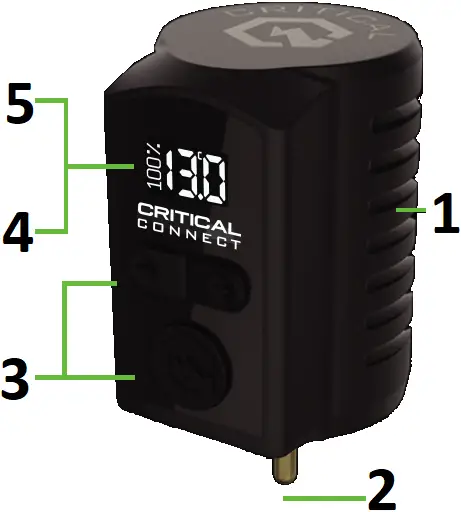

1. ERGONOMIC DESIGN
2. UNIVERSAL FIT
3. TACTILE BUTTONS
4. PRECISE VOLTAGE OUTPUT
5. CRISP OLED DISPLAY

VOLTAGE RANGE: 4.5V – 13V
WEIGHT: 2.0OZ
LENGTH: 2.47″
DIAMETER: 1.26″

ENHANCED WITH CRITICAL CORE

PRECISE VOLTAGE
NO “SAG” IN VOLTAGE DROP DURING ANY PART OF THE TATTOO SESSION

LOW BATTERY INDICATOR
AT 5% CHARGE LIFE, A LOW BATTERY ICON IS DISPLAYED ALONG WITH A BEEP FOR 5 SECONDS AT EVERY MINUTE

OUTPUT INDICATOR
FLASHING DECIMAL POINT INFORMS USER DEVICE IS IN USE

TEMPERATURE PROTECTION
POWER SHUTS OFF IF TEMPERATURE EVER REACHES AT UNSAFE LEVELS (176°F)

CRITICAL CORE
SMART & ACCURATE

VERSATILE CHARGE CONNECTION
TYPE C EASY CHARGE CONNECTION WITH ANY USB-C CONNECTION

HOW TO USE:

(1) ATTACH CRITICAL UNIVERSAL BATTERY TO TATTOO MACHINE
(2) TURN DEVICE ON BY HOLDING POWER BUTTON 3 SECONDS
(3) SELECT DESIRED VOLTAGE BY USING +/- BUTTON
(4) START DEVICE BY CLICKING POWER BUTTON 1 TIME
(5) STOP DEVICE BY CLICKING POWER BUTTON 1 TIME
(6) TURN DEVICE OFF BY HOLDING POWER BUTTON 3 SECONDS

OLED SCREEN
WHEN CHARGING:

• SCREEN WILL REMAIN ON WHILE CHARGING, WILL DISPLAY BATTERY STATUS
• SCREEN WILL IDLE ONCE FULLY CHARGED AFTER 60 SECONDS

CHARGING

• USE USB TYPE C CONNECTOR
• UNIVERSAL BATTERY DOCK (SOLD SEPARATELY)

HOW TO PAIR
BATTERY TO FOOT SWITCH

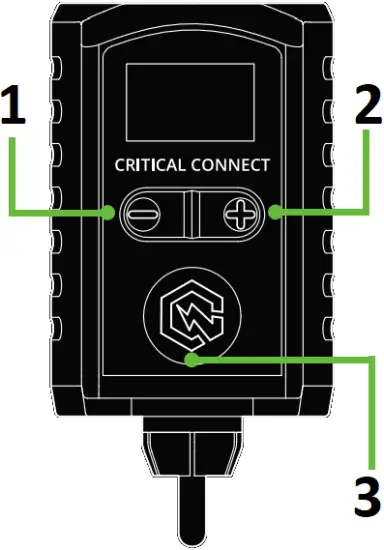

1. BUTTON
2. BUTTON
3. HOME/ACTION BUTTON

REQUIRED FOR SET UP

• CRITICAL CONNECT BATTERY (UP TO 4)
• 1 X CRITICAL CONNECT FOOT SWITCH

CRITICAL CONNECT
TO ACCESS BLUETOOTH MENU

(1) HOLD BOTH AND BUTTONS FOR 3 SECONDS TO ENTER BLUETOOTH MENU
(2) CLICK 1 TIME FOR SEARCH MODE
(3) QUICKLY TAP FOOT SWITCH (SOLD SEPARATELY)
1 TIME TO PAIR WITH BATTERY PACK
(4) CLICK BUTTON 1 TIME TO RETURN TO HOME MENU

BLUETOOTH MENU SYMBOLS

NOT PAIRED
CLICK ONCE TO SEARCH FOR CRITICAL CONNECT FOOT SWITCH

SEARCH MODE
TAP FOOT SWITCH ONCE DURING SEARCH MODE TO CONNECT

DEVICE NOT FOUND
IF NO DEVICE IS PAIRED OR FOUND AFTER 30 SECONDS

BLUETOOTH PAIRED
SUCCESFULLY PAIRED
CLICK ONCE TO UNFAIR DEVICE

HOME SCREEN
BATTERY TO FOOT SWITCH

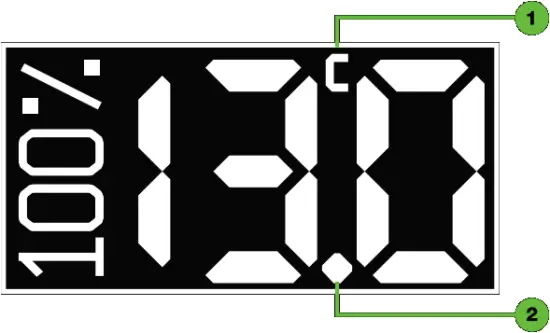

(1) CRITICAL CONNECT INDICATOR
“C” SYMBOL WILL BE VISIBLE ON HOME SCREEN WHEN BATTERY IS PAIRED WITH FOOT SWITCH

(2) MOMENTARY/CONTINUOUS MODE
CLICK BOTH AND ONCE TO TOGGLE BETWEEN MODES ON THE FOOT SWITCH

• SOLID DECIMAL FOR CONTINUOUS
• HOLLOW DECIMAL FOR MOMENTARY

HOW TO PAIR
MULTIPLE BATTERIES

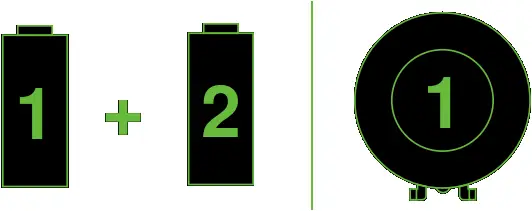

(1) PAIR 1ST BATTERY TO FOOT SWITCH
(2) DOUBLE CLICK TO ENTER “STANDBY” MODE
(3) TURN ON OR EXIT STANDBY BY DOUBLE CLICKING ON 2ND DEVICE
(4) PAIR 2ND BATTERY TO FOOT SWITCH

PAIR AND SWITCH BETWEEN UP TO 4 BATTERIES AND 1 FOOT SWITCH

ONLY 1 BATTERY CAN BE OPERATED AT A TIME PER FOOT SWITCH. ALL BATTERIES NOT IN USE SHOULD BE ON STANDYBY MODE OR OFF

COMPATIBLE PRODUCTS

CRITICAL CONNECT
FOOT SWITCH

12 MONTH WARRANTY

PATENT INFO
US UTILITY PATENT – 10,471,246
AUSTRALIA UTILITY PATENT – AU2020200982
US DESIGN PATENT – 29/736,884
CHINA DESIGN PATENT – 202030297770.3
CANADA DESIGN PATENT – 196581

VIDEO TUTORIAL
WWW.CRITICALTATTOO.COM/CRITICALCONNECT

SCAN QR CODE FOR VIDEO LINK

WWW.CRITICALTATTOO.COM

VISIT OUR YOUTUBE CHANNEL
CRITICAL TATTOO
FOR USAGE INSTRUCTIONS

@CRITICALTATTOOSUPPLY
