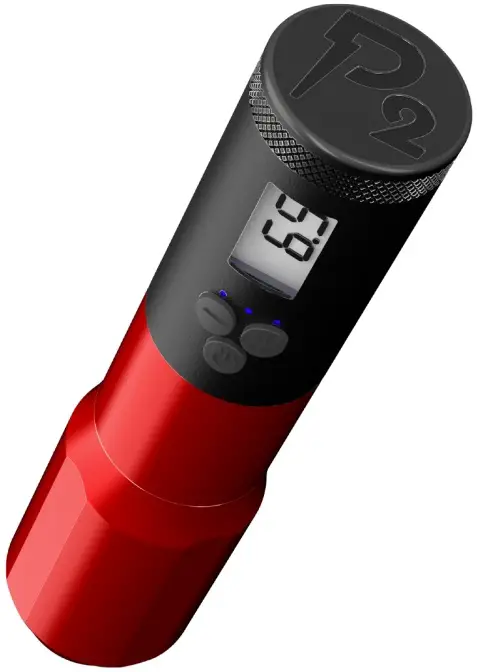

EZ TATTOO WIRELESS Dortex Gen 2 Versatile Wireless Machine User Guide
THANK YOU FOR YOUR PURCHASE!

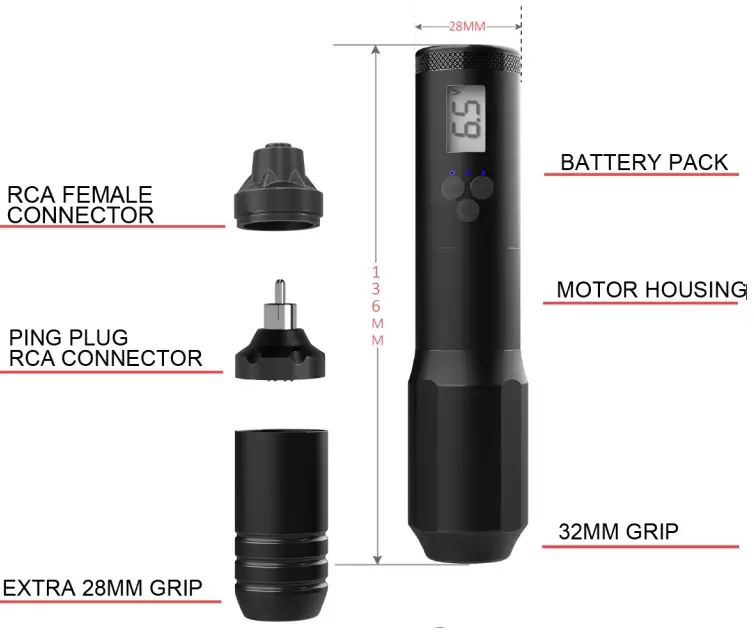

Overview

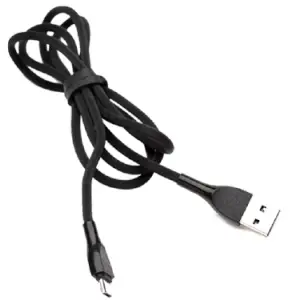

USB CHARGER CABLE
Version X

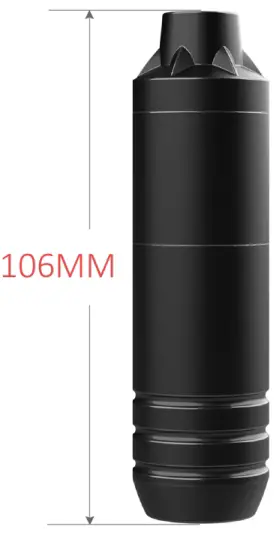

VERSION 1
Regular Pen Machine
The regular version of this P2 VERSATILE can be obtained only by using the RCA female connector with the handle.

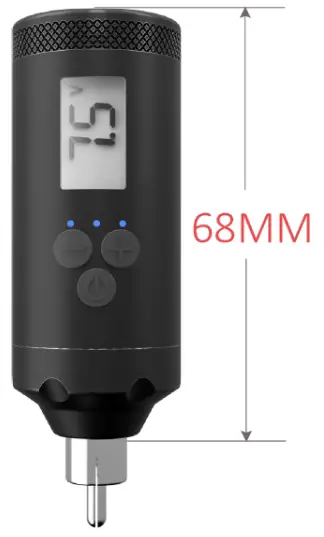

VERSION 2
Power Pack
Just use the ping plug RCA connector with the power supply assemble, it would also form a complete battery power pack.
TECHNICAL SPECIFICATION
- Motor: EZ Customized Swiss Motor
- Connection: RCA
- Output: 18V – 2.4A max
- Stroke Length: 3.5 mm
- Operating Voltage: 5 – 12 V DC
- Rpm: 9000rpm + 10o
- Switch Frequency: 60 – 160 Hz
- Needle Protrusion: 0 – 4,5 mm
- Dimensions(4l X L): 28 x 136 mm
- Weight: 6.53/ 7.23 oz(185g / 205g) with battery
- Grip: 28mm / 32mm
- Color Available: Black, Red and Grey
- Battery Capacity: 1000 mAh
INCLUDES:
- USER GUIDE
- P2 VERSATILE X1, Extra 28mm Grip X1,
- Ping plug RCA connector, RCA female connector,
- Battery Type-C charging cable

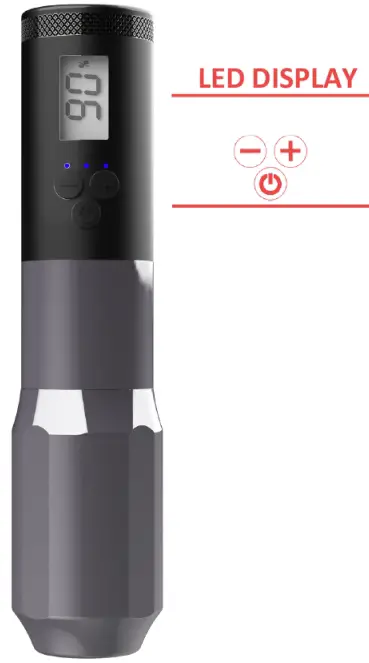

BASIC OPERATION
LED DISPLAY:
Voltage, Capacity and Timer
Voltage -, Voltage +, Power on/off
THE VOLTAGE COULD BE ADJUSTED THROUGH BUTTON
AND
RESPECTIVELY WITH THE VOLTAGE OF 0.1V ON EACH PRESS.
QUICK ADJUSTING VOLTAGE MODE:
LONG PRESS THE / BUTTON WILL ADJUST THE VOLTAGE QUICKLY
WORKING WITH MODES:
MODES WORK BY CLICKING AND RELEASING THE POWER BUTTON.
NOTICE: to reduce the risk of injury, the user must read and understand the
User manual before using this product, Save these instrucfions for future reference.
- We recommended that use the included charging cable.
- This device don’t support fast charging/super fast charging, fast charging may get damage the battery.
WARRANTY INFORMATION
If you find that the product is malfunctioning during the warranty period, EZ provides a one-year warranty for the Portex Gen2 VERSATILE Wireless Pen Machine purchased in our online store or authorized distributors worldwide from the date of purchase.
Please contact our After-Sales Team Email: [email protected].
Warranties do not cover:
- Damage to the product due to a human factor
- Product damage due to external electrical failure or any accident
WARRANTY CARD
PRODUCT NAME: _____________________
DATE OF PURCHASE: _____________________
WHERE PURCHASED: _____________________
ADDRESS:_____________________
EMAIL: _______________________
MY SIGNATURE BELOW ACKNOWLEDGES THAT I HAVE READ, FULLY UNDERSTAND, AND ACCEPT THIS LIMITED WARRANTY AGREEMENT.
SIGNATURE: ____________________ DATE: ________________
