Quick Start Guide

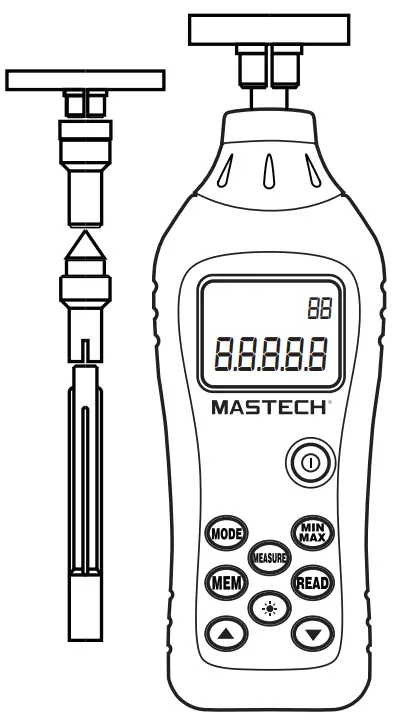

MS6208A
Contact Type Tachometers
Special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.
– Use proper measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
– Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
– When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
– Examine the measuring test leads (if present) before use. Any element of which the insulation deteriorates (even partially), replace them with proper functional test leads.
– Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
– Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test

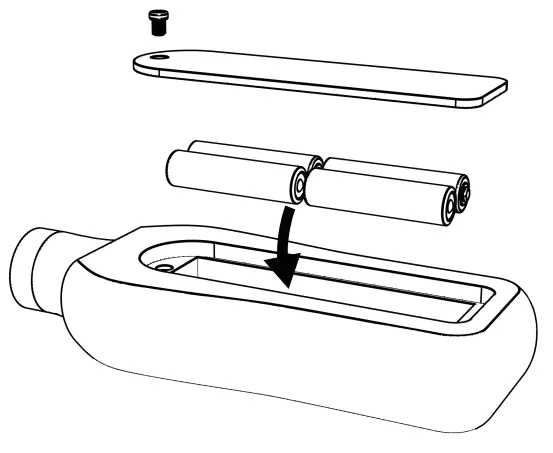

– Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C.
If the batteries are not removed, battery leakage can damage the device.

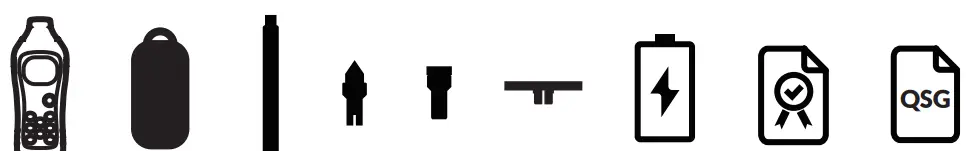

Contents
Specifications
SpecificationsRange Resolution Accuracy

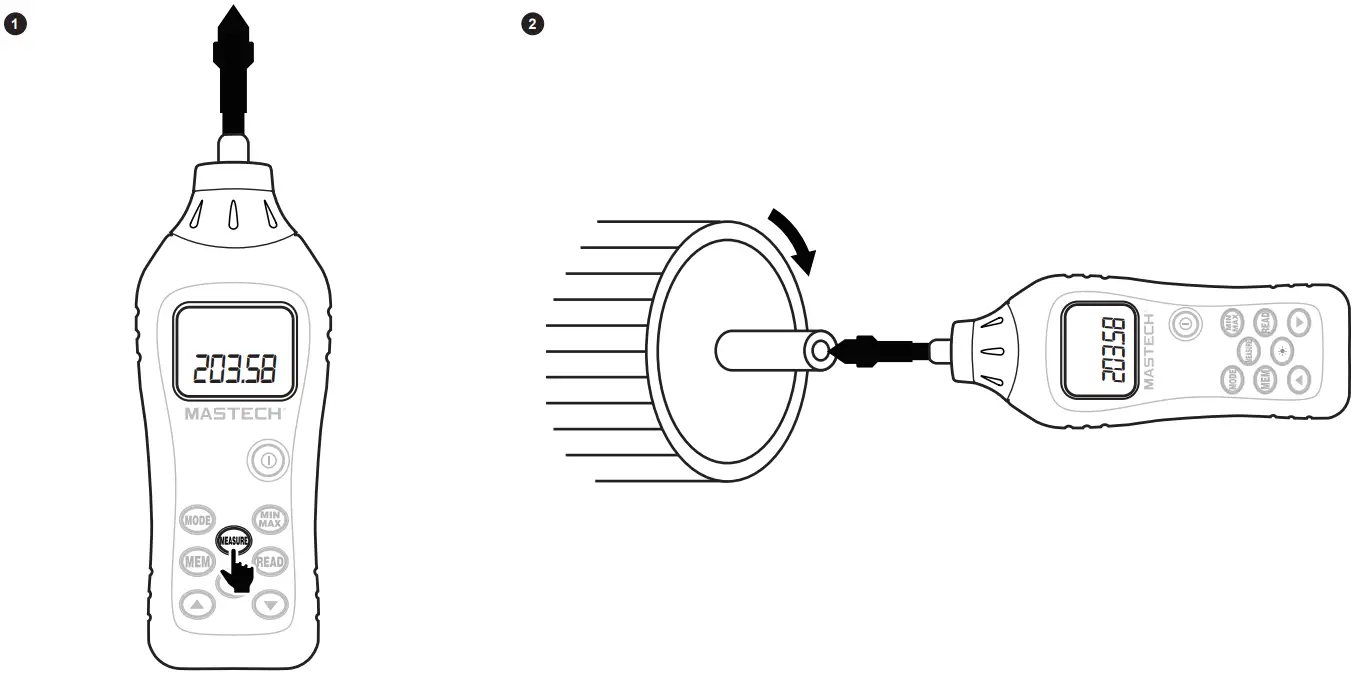

Measurement
| 50~99.99 RPM | 0.01 RPM | ±(0.03%+2) |
| 100~9999.9 RPM | 0.1 RPM | ±(0.03%+2) |
| 10000~19999 RPM | 1 RPM | ±(0.03%+2) |
Measurement

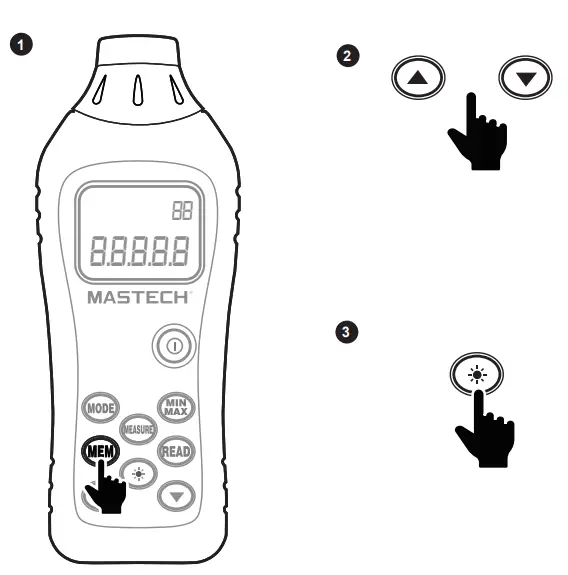

Data Storage

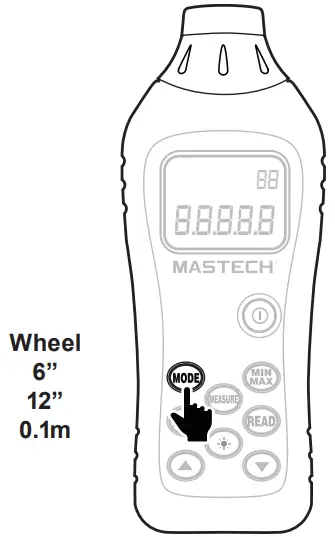

Mode
http://www.mastech-group.com/support.php?n=0
USA
MGL AMERICA, INC.
2810 Coliseum Centre Drive,
Ste. 100 Charlotte,
North Carolina 28217 USA
Tel: +1 833-533-5899
Email: [email protected]
SKU Number: MS6208ACBGLO
1 YEAR
LIMITED WARRANTY
700019244 June 2021 Rev. 1
Specifications are subject to change without notification.
