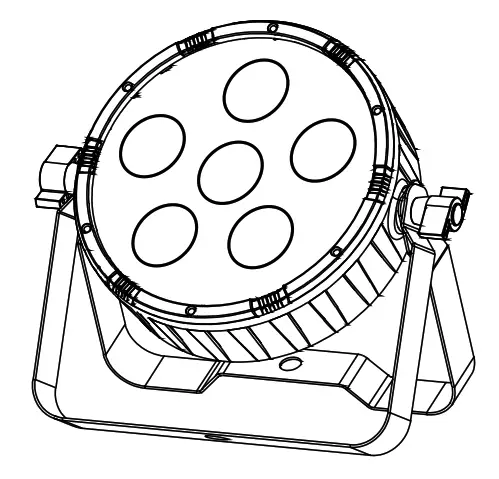

VividPar HEX 6 RGBAW+UV Wash Light
User ManualVivitar HEX 6
RGBAW+UV Wash Light SKU-2250
USER MANUAL

Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse.

Introduction

Package Contents

• Vivitar HEX 6
• Power Cable
• IR Remote
• Brackets
• User Manual

Caution! Opening this unit voids the warranty. Contact ColorKey for any service requests.
Warning! To avoid electrical shock, be sure to disconnect the power before any service or when moving or setting up the fixture.
Caution! Avoid direct eye exposure with the fixture when on.

• This fixture is for indoor use only.
• Do not install or operate this fixture near flammable materials.
• This device must be installed, operated, and maintained by a qualified professional.
• Please check if the voltage is in accordance with the rated power before installing it.
• Do not operate this fixture if the power cord has been damaged. Turn off the fixture and replace it with a power cord of a similar rating.

Service & Support

Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/
You can also reach us by phone Monday thru Friday, 8:30 am – 5 pm PST at (818) 578-4030.

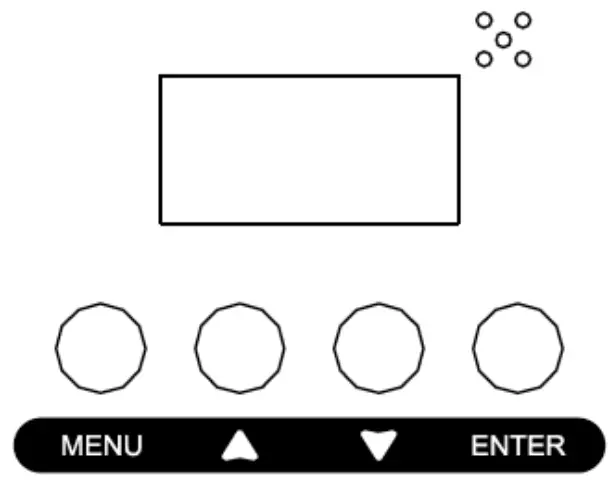

Display Operation

Menu Guide

DMX Values

Channels Mode

Channels Mode

IR Remote Overview

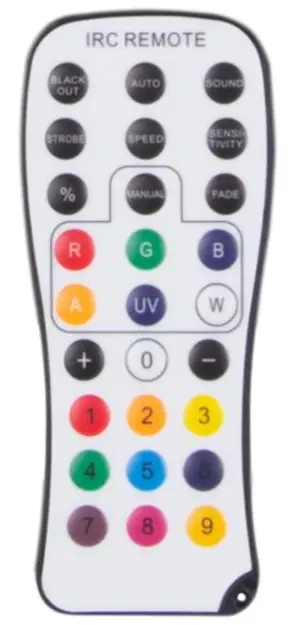

To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the VividPar HEX 6 is located on the face with the LED lenses.

Black Out
Black Out mode instantly turns all LEDs off.
Press the Black Out button to engage or disengage in Black Out mode.
Auto
In Auto mode, the light loops through various preprogrammed colors.
To turn on Auto mode, press the Auto button, then press (+) or (-) to increase or decrease the speed of the program.
Sound
Sound-Active mode enables the light to respond to ambient sounds in the room using the fixture’s built-in microphone.
Press the Sound button to activate Sound-Active mode. Press (+) or (-) to increase or decrease sound sensitivity based on the playback level of the music.
Strobe
In Strobe mode, the light will strobe while the button is pressed.
To turn on Strobe mode, press and hold the Strobe button, this mode can be engaged while running other programs for added effect. When Strobe is released, the light will continue the previous operating program.
Manual Color Mixing
Vivitar can create an almost unlimited number of colors by mixing Red, Green, Blue, Amber, UV, and White LEDs.
To begin mixing colors, press the Red (R), Green (G), Blue (B), Amber (A), UV (UV), and White (W) buttons, then press (+) or (-) to increase or decrease the brightness of each color. Continue with the next color until you achieve your desired color.
Fade
In Fade Mode, the light creates smooth, gradual color transitions.
To turn on Fade mode, press the Fade button, then press (+) or (-) to increase or decrease the speed of the program.

Color Presets
10 preset colors can be accessed from the IR Remote. Press any number between (0) and (9) to set a color.

1. White
2. Red
3. Magenta
4. Yellow
5. green
6. Blue
7. UV
8. Purple
9. Pink
10. Orange

Operation

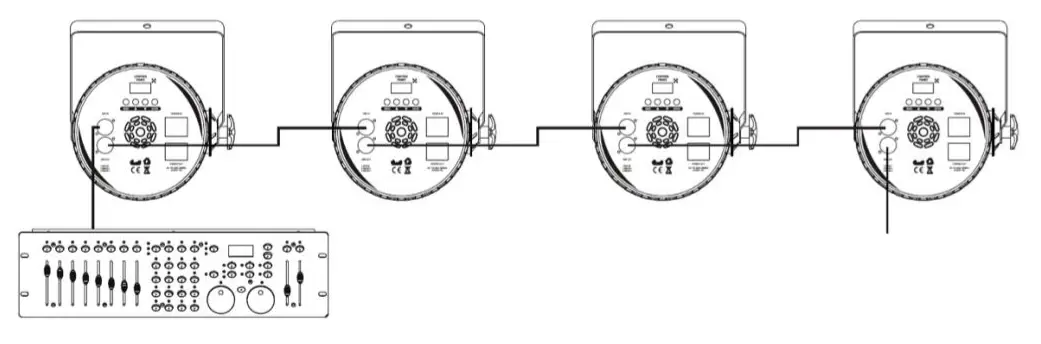

Using a DMX controller:
• Use a DMX cable to connect your VividPar HEX 6 to the DMX in/out sockets on the bottom of the light.

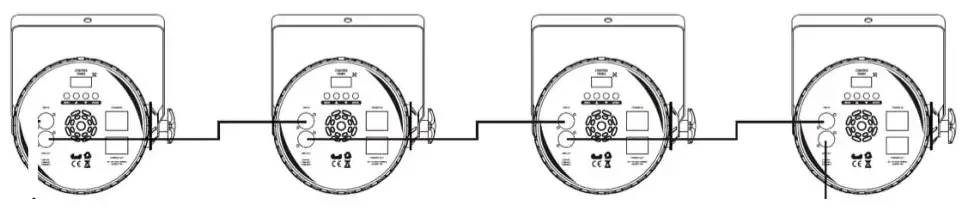

Using Master/Slave Mode:
The Master/Slave mode allows a group of VividPar HEX 6 units (the slaves) to duplicate the output of another VividPar HEX 6 (the master) without a DMX controller.

1. Set each of the slaves:
   ◼ Go to SLNd in the main menu and press enter.
   ◼ Select SL1.
2. Set the master:
   ◼ Go to SLNd in the main menu and press enter.
   ◼ Select Nast.

• The master (Nast) is the unit that runs your program whether in one of the static color modes or various Auto programs.

Using Slave modes (SL1,SL2,SL3,SL4) to create a light show
Using 5 or more lights for the best effect, VividPar HEX 6 can help create auto-light shows by setting lights in order from Master, SL1, SL2, SL3, SL4 and engaging Auto Programs on the Master fixture.

1. Set each of the desired slaves SL1, SL2, SL3, SL4: ◼ Go to SLNd in the main menu and press enter.
   ◼ Select SL1.
   ◼ Repeat steps for each slave fixture SL2, SL3, and SL4
2. Set the master:
   ◼ Go to SLNd in the main menu and press enter.
   ◼ Select Nast.

• For best effect, have lights connected in sequence from Master, to SL1, to SL2, to SL3, to SL4.
• Accessing the (ShNd) programs on the Master light will now create varying displays of synchronized light on the master and slave fixtures through (Auto) and (SoUn) functions.

Troubleshooting

Technical Information

• 6x12W RGBAW+UV LED Wash Light
• DMX Channel Modes: 6 / 10 channels
• Control modes: DMX 512, Master /Slave, IR Remote, Sound
• Power consumption: 80W
• Power supply: AC100-240V; 50-60Hz
• Weight: 4.4lb
• Measurements: 10.25in. x 3.14in. x 9.25in.

Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at [email protected].
