TRANS ATLANTIC ED-500 Series Grade 1 Exit Device Rim Surface
FEATURES
- UL Listed SA32524 ANSI A156.3 Grade 1
- ED-F501: UL10C fire rated; barrier free
- Non-handed / reversible
- EAK500: Alarm kit
- Door width: 26” to 36″
- Available in XL: up to 48″
- Projection: 2 ¼”
- Door thickness: 1¾” up to 2”
- Stile: 3” minimum
- Comes with standard strike and shim
- Dogging standard on non-fire rated
- Warranty: 1 year
- Plastic end ca
- Can be cut down to 26” in length
- Finishes: AL, DU, US32D, US3
CROSS REFERENCE
| ANSI GRADE | MATERIAL | TACO | INTERN | TELL | S.PARKER | CRL |
| A156.3- Grade 1 | Steel | ED-501 | 55105 | 8300 | VL520 | NA |
| A156.3- Grade 1 | Steel | ED-F5 | 5510F | F8300 | 52024 | NA |
| A156.3- Grade 1 | Steel | ED-VR531 | 55305 | 8400 | 520V | NA |
| A156.3- Grade 1 | Steel | ED-FVR531 | 5530F | F8400 | 5203V | NA |
EXIT DEVICE ACCESSORIES
ED-BKL500 – Ball Knob

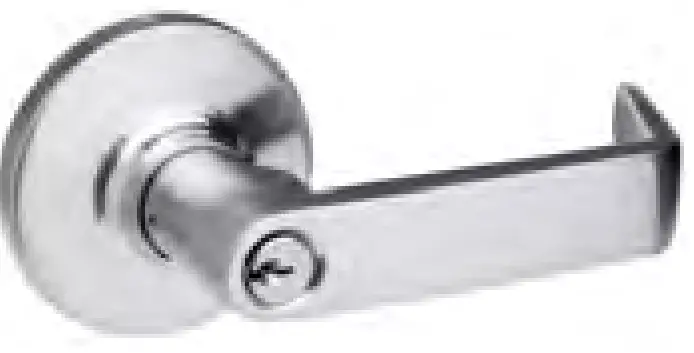

ED-LHL500 – Lever Entry (Lever available in IC)
ED-BKL580 – Ball Knob
ED-LHL580 – Lever Storeroom (Lever available in IC)
ED-BKL510 – Ball Knob
ED-LHL510 – Lever Passage
ED-MP803 – Trim Mounting Plate (included with trim)
ED-KITR – Roller Strike and Shim
ED-SB1024 1¾” Thru Bolts (sold as each)

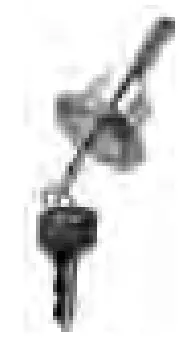

ED-RC051 Rim Cylinder

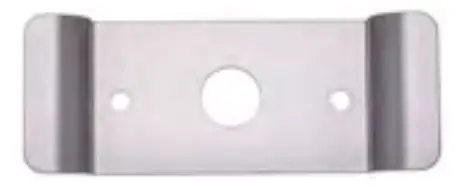

ED-PP05501 Pull Plate w/ hole

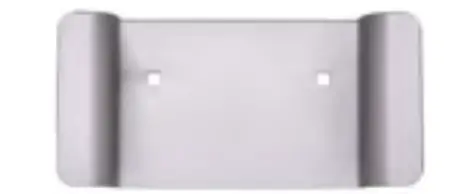

ED-PP06501 Pull Plate
ED-SF1 Strike Filler
ED-LF1 Latch Filler
ED-P08 Pull Handle
ED-EAK500 Alarm Kit
ED-PS09 Overlapping Strike
