SDC 6100ED RIM LRY61R Yale Rex Switch Kit

Remove Cover and Dogging from device if present.

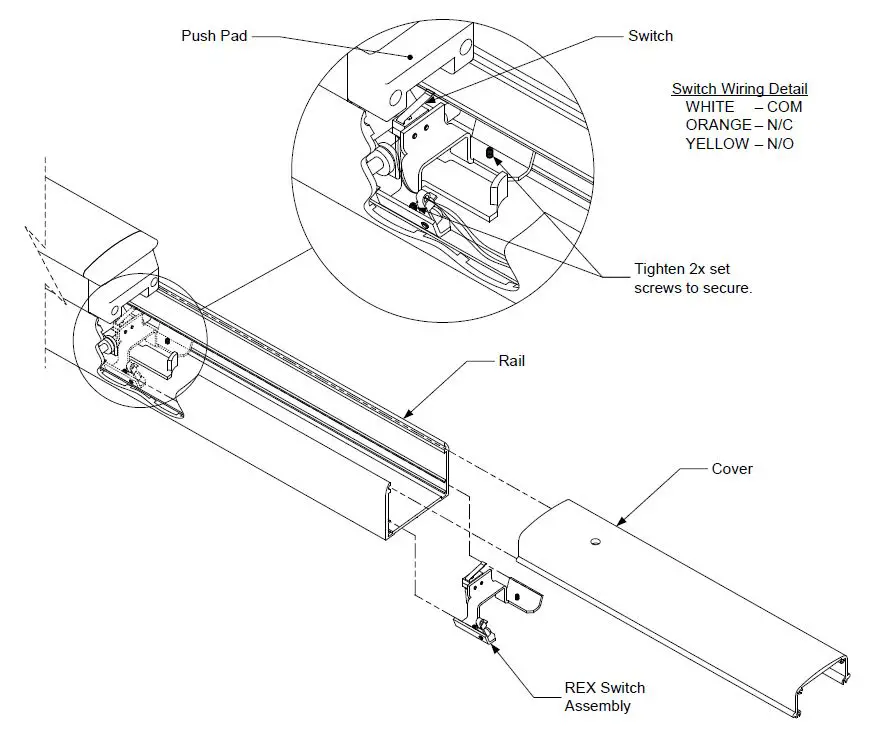

Slide REX Switch Assembly into Rail. Position the bracket so that the Switch is aligned under the Push Pad when the Push Pad is depressed. Once in position, tighten two set screws to secure in place.
