SDC LRCA1R Cal-Royal REX Switch Kit

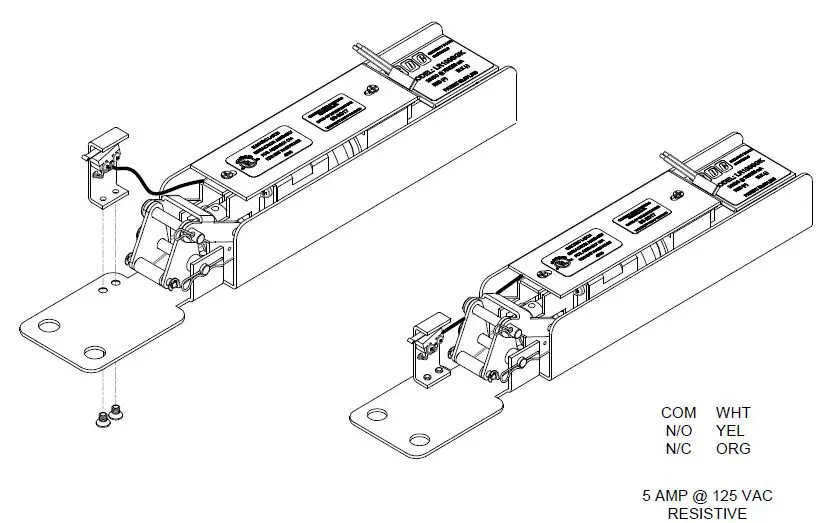

Attach the switch mounting bracket where shown. Run switch wires along the side of the housing.

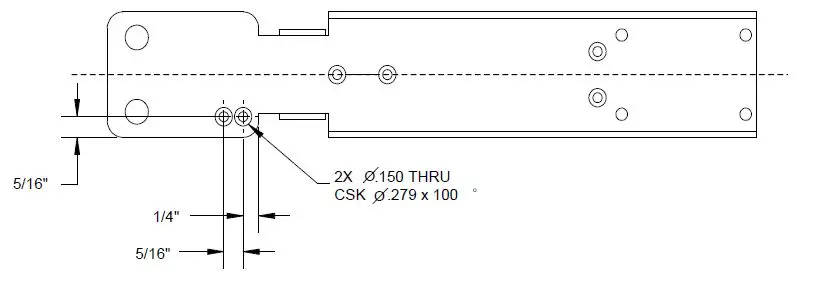

If LR100 kit doesn’t have the mounting holes for the REX kit, then modify per dimensional reference shown below.
