INSTALLATION INSTRUCTIONS
482A6RPH / 484A6RPH

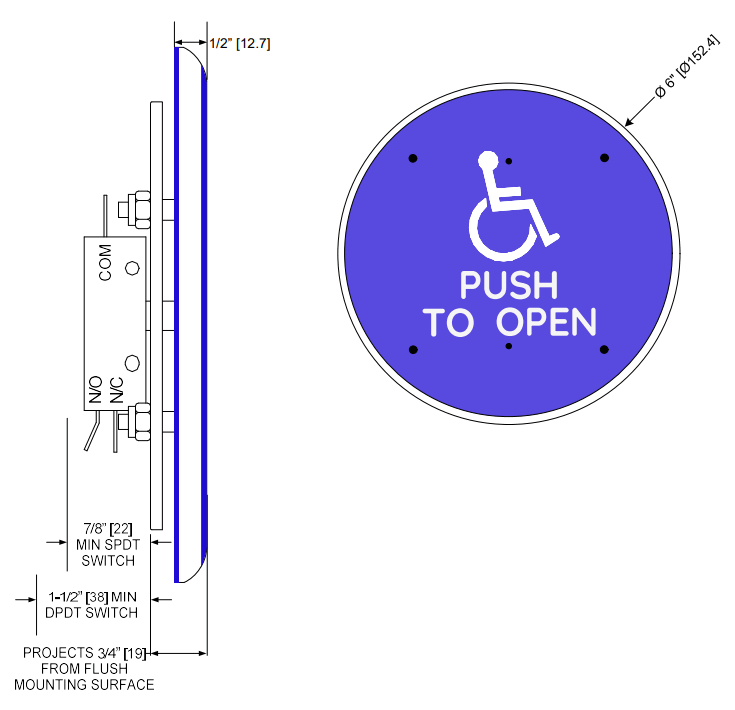

HDPE ROUND PUSH PLATE SWITCH
ADA PUSH TO OPEN – BLUE FACE W/ WHITE INFILL 6″ DIA.
Specifications
Switch mounts to a:
Single Gang electrical box or 4S box by others, or
Flush mount recessed box (SDC P/N: 480-6RFB), or
Round Surface mount box (SDC P/N: 480-6RSB)
Optional 6″ round weather gasket (SDC P/N: 480-6G) for 480-6RFB or 480-6RSB
Contact Type: SPDT(482) or DPDT(484) Momentary
Contact Rating: 2 Amp @ 48VDC
15 Amp @ 125 / 250VAC
Faceplate Material: High-density Polyethylene (HDPE)
