Sdc Lrfa1r Falcon Dor-o-matic Rex Switch Kit Instruction Manual

SDC LRFA1R Falcon DOR-O-MATIC REX Switch Kit Instruction Manual

Inductions

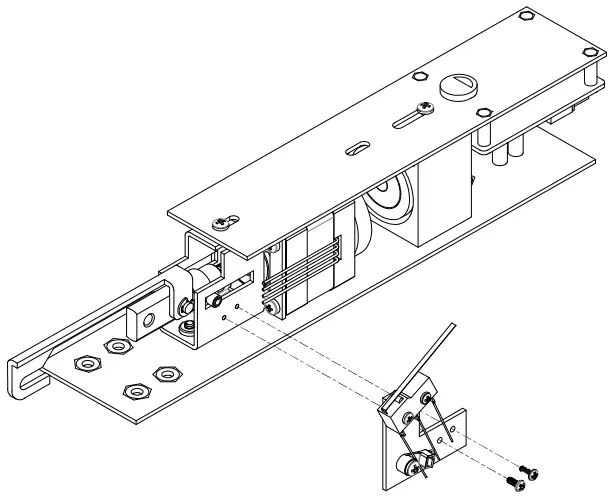

Attach the switch assembly to the ELR unit with the supplied screws as shown.

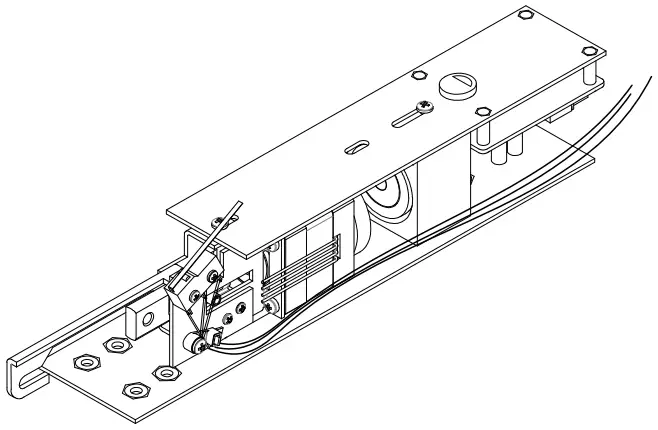

Route wires through the cable tie, along the side of the ELR and out.

WIRING SPECIFICATION

WHT= COM
YEL= N/C
ORG= N/O
5AMP @ 125VAC RESISTIVE
