SDC LRFR1R Falcon Retrofit Monitoring Kit Instruction Manual

INSTALLATION INSTRUCTIONS

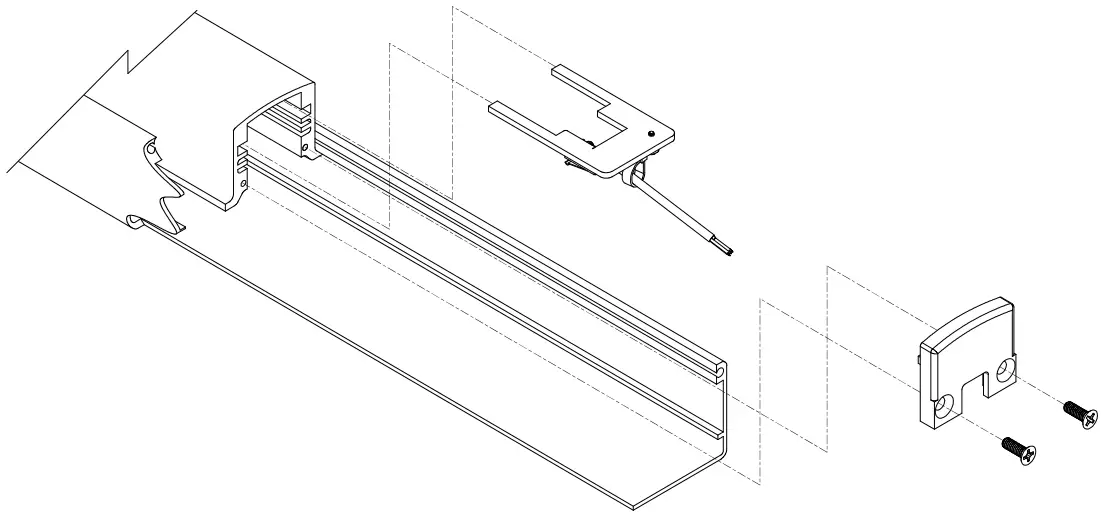

1. Remove the following components: The Device End cap and Mounting Bracket, Cover plate and the Push bar End cap.
2. Insert the switch assembly into the top slot of the Push bar until it stops against the Push bar Hinge.
3. Route the wires out and re-assemble the device.


WIRING SPECIFICATION

• WHT – COM
• YEL –N/O
• ORG –N/C5
• 5 AMP @ 125 VAC RESISTIVE

Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or
Email: [email protected]
