SDC 531-2 Monitoring Switch Kit

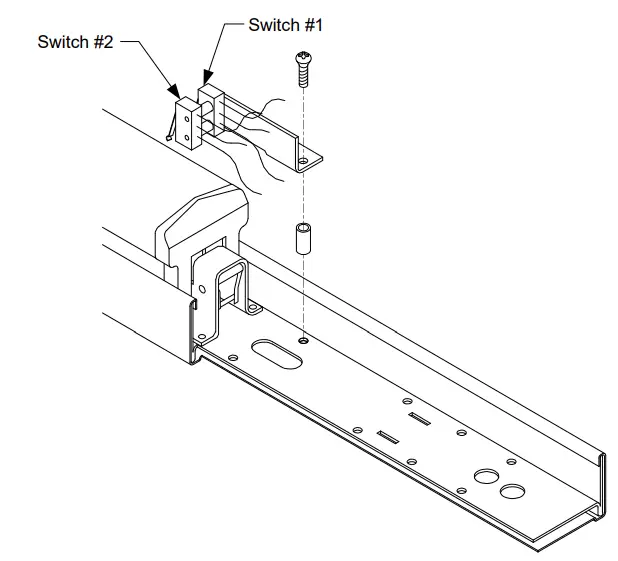

For units without dogging assembly, install the switch bracket where shown using the supplied nylon standoff and screw.

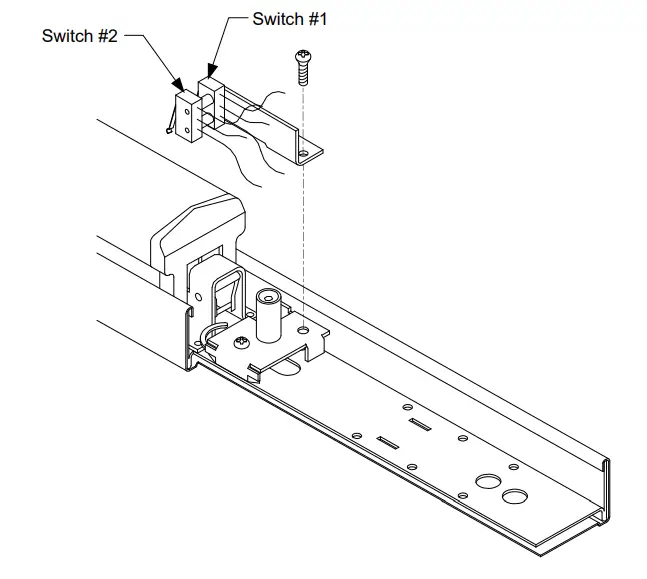

For units with dogging assembly,install the switch bracket where shown. Replace existing self-tapping screw with the supplied screw.

WIRING SPECIFICATION

SWITCH #1
WHT – COMYEL – N/OORG – N/C

SWITCH #2
WHT/BLK –COMYEL/BLK –N/OORG/BLK –N/C

5A @ 250 VACRESISTIVE

Applications

Remote Latch Status Monitoring: Retracting the latch by depressing the push pad provides an output signal for local or remote visual and audible annunciation indicating forced entry or unauthorized egress.

Access Control REX: When connected to the Request-To-Exit input of a keypad, card or biometric Access Controller, depressing the push pad and retracting the latch actuates the Latch Status contact, shunting the control access control alarm to permit authorized egress and/or releases the magnetic door lock for uninhibited egress.

Magnetic Lock Release: Where Access Controller with REX input is unavailable, the N/C contact of the switch is wired in series between the power supply and fail safe magnetic lock. Depressing the exit device pushpad retracts the latch, causing the contact to open, thereby releasing the magnetic lock for uninhibited egress.

Mantrap Logic: Provides N/O and N/C contacts required for 2 or more communicating doors for Interlock and Mantrap applications.

Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email [email protected]

SECURITY DOOR CONTROLS
