ON Semiconductor NTMFS006N12MC Single Power N Channel 12V MOSFET Instructions
Features
- Small Footprint (5×6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- Soft Body Diode Reduces Voltage Ringing
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
| Parameter | Symbol | Value | Unit | ||
| Drain−to−Source Voltage | VDSS | 120 | V | ||
| Gate−to−Source Voltage | VGS | ±20 | V | ||
| Continuous Drain Current RθJC (Notes 1, 3) | Steady State | TC = 25°C | ID | 93 | A |
| TC = 100°C | 58 | ||||
| Power Dissipation RθJC (Note 1) | TC = 25°C | PD | 104 | W | |
| TC = 100°C | 41 | ||||
| Continuous Drain Current RθJA (Notes 1, 2, 3) | Steady State | TA = 25°C | ID | 15 | A |
| TA = 100°C | 9 | ||||
| Power Dissipation RθJA (Notes 1, 2) | TA = 25°C | PD | 2.7 | W | |
| TA = 100°C | 1.1 | ||||
| Pulsed Drain Current | TA = 25°C, tp = 100 µs | IDM | 522 | A | |
| Operating Junction and Storage Temperature Range | TJ, Tstg | − 55 to+ 150 | °C | ||
| Source Current (Body Diode) | IS | 86 | A | ||
| Single Pulse Drain−to−Source Avalanche Energy (IL(pk) = 49A) | EAS | 120 | mJ | ||
| Lead Temperature for Soldering Purposes (1/8² from case for 10 s) | TL | 260 | °C | ||
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
THERMAL RESISTANCE MAXIMUM RATINGS
| Parameter | Symbol | Value | Unit |
| Junction−to−Case − Steady State | RθJC | 1.2 | °C/W |
| Junction−to−Ambient − Steady State (Note 2) | RθJA | 45 |
- The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.
- Surface−mounted on FR4 board using a 650 mm2, 2 oz. Cu pad.
- Maximum current for pulses as long as 1 second is higher but is dependent

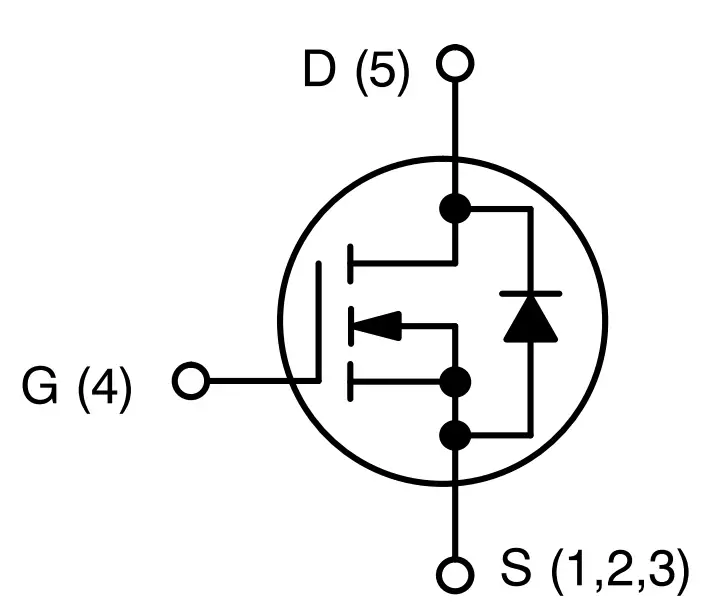

on pulse duration and duty cycle.V(BR)DSS RDS(ON) MAX ID MAX 120 V 6.0 mΩ @ 10 V 93 A 13 mΩ @ 6.0 V N−CHANNEL MOSFET

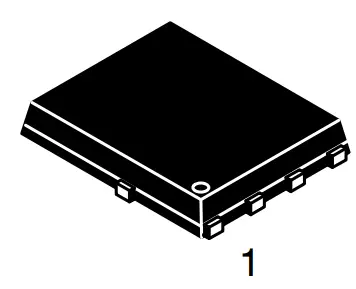

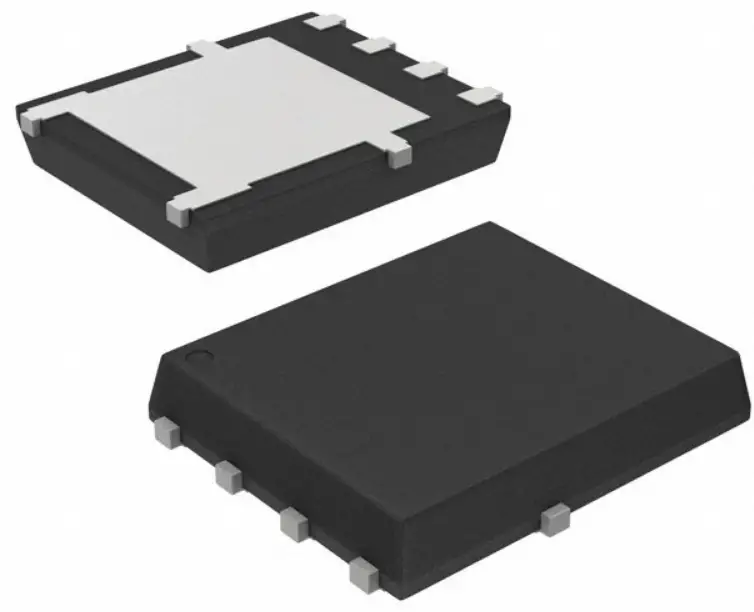

(SO−8FL) CASE 488AA STYLE 1

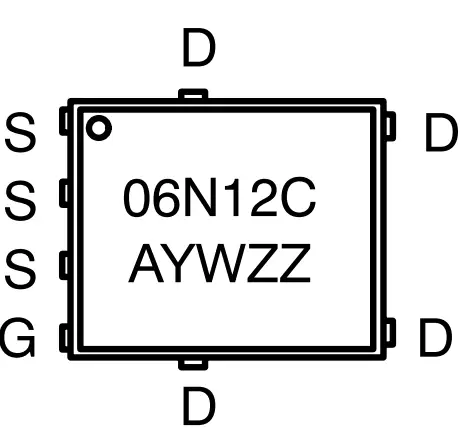

MARKING DIAGRAM
ORDERING INFORMATION
See detailed ordering, marking and shipping information on page 5 of this data sheet.
ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified)Parameter Symbol Test Condition Min Typ Max Unit OFF CHARACTERISTICS
Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 250 µA 120 V Drain−to−Source Breakdown Voltage Temperature Coefficient V(BR)DSS/ TJ ID = 250 A, ref to 25°C 32 mV/°C Zero Gate Voltage Drain Current IDSS VGS = 0 V, VDS = 120 V TJ = 25°C 1 µA TJ = 125°C 100 Gate−to−Source Leakage Current IGSS VDS = 0 V, VGS = ±20 V ±100 nA ON CHARACTERISTICS (Note 4)
Gate Threshold Voltage VGS(TH) VGS = VDS, ID = 260 µA 2.0 4.0 V Threshold Temperature Coefficient VGS(TH)/TJ ID = 250 A, ref to 25°C −9.6 mV/°C Drain−to−Source On Resistance RDS(on) VGS = 10 V ID = 46 A 5.0 6.0 mΩ VGS = 6.0 V ID = 23 A 7.2 13 mΩ Forward Transconductance gFS VDS =15 V, ID = 46 A 130 S CHARGES, CAPACITANCES & GATE RESISTANCE
Input Capacitance CISS VGS = 0 V, f = 1 MHz, VDS = 60 V 3365 pF Output Capacitance COSS 1490 Reverse Transfer Capacitance CRSS 5.8 Total Gate Charge QG(TOT) VGS = 10 V, VDS = 60 V; ID = 46 A 42 nC Threshold Gate Charge QG(TH) VGS = 6.0 V, VDS = 60 V; ID = 46 A 10.0 Gate−to−Source Charge QGS 16 Gate−to−Drain Charge QGD 6.3 Plateau Voltage VGP 5.0 V Total Gate Charge QG(TOT) 26 nC Output Charge QOSS VGS = 0 V, VDS = 60 V 122 nC SWITCHING CHARACTERISTICS (Note 5)
Turn−On Delay Time td(ON) VGS = 10 V, VDS = 60 V, ID = 46 A, RG = 2.5 Ω 19 ns
Rise Time tr 5.6 Turn−Off Delay Time td(OFF) 28 Fall Time tf 5.7 DRAIN−SOURCE DIODE CHARACTERISTICS
Turn−On Delay Time td(ON) VGS = 10 V, VDS = 60 V, ID = 46 A, RG = 2.5 Ω 19 ns
Rise Time tr 5.6 Turn−Off Delay Time td(OFF) 28 Fall Time tf 5.7 Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
- Pulse Test: pulse width 300 s, duty cycle 2%.
- Switching characteristics are independent of operating junction temperatures
TYPICAL CHARACTERISTICS

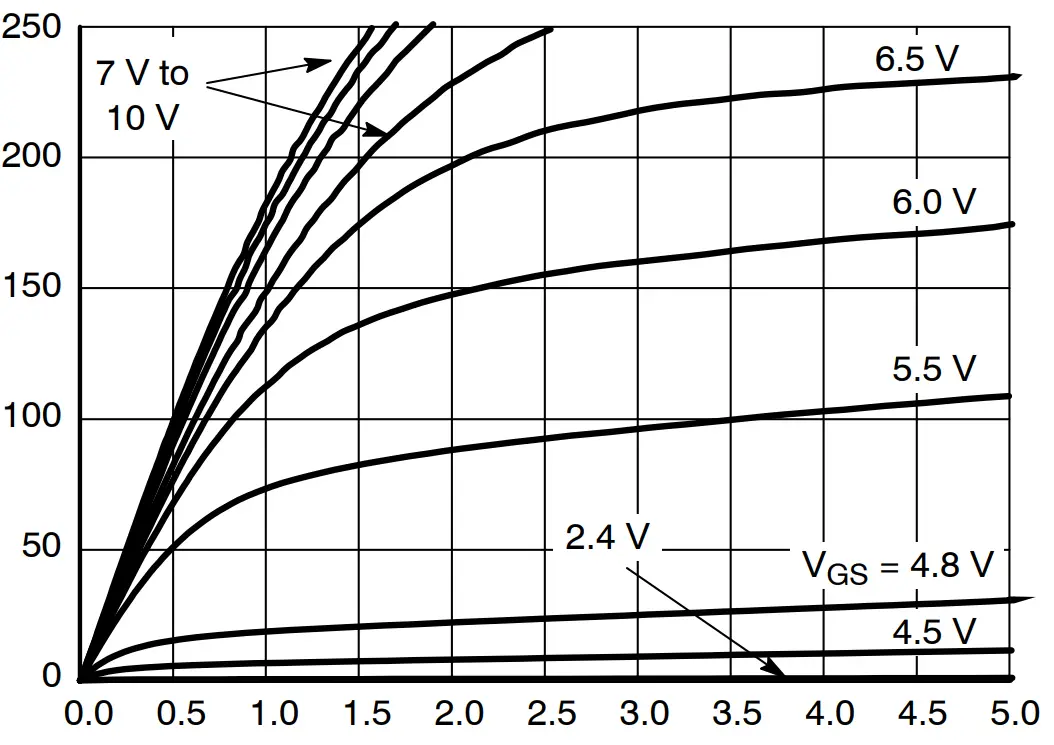

Figure 1. On−Region Characteristics

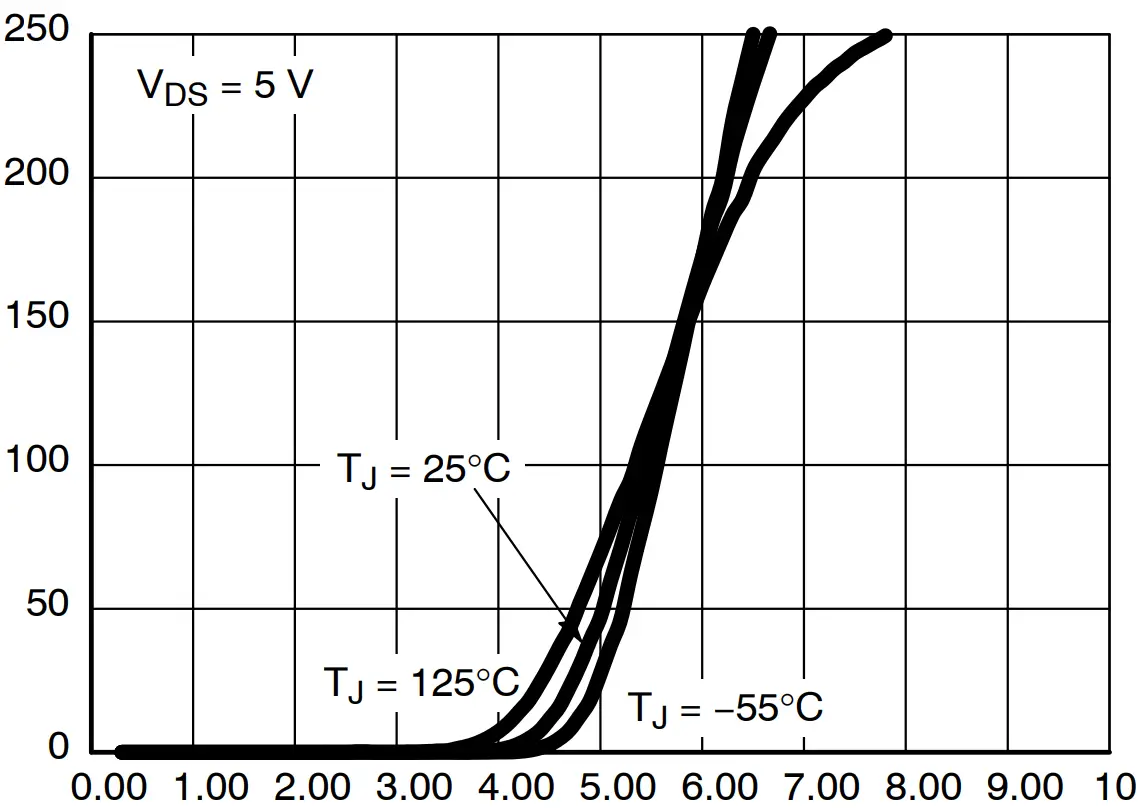

Figure 2. Transfer Characteristics
Figure 3. On−Resistance vs. Gate−to−Source Voltage
Figure 4. On−Resistance vs. Drain Current and Gate Voltage

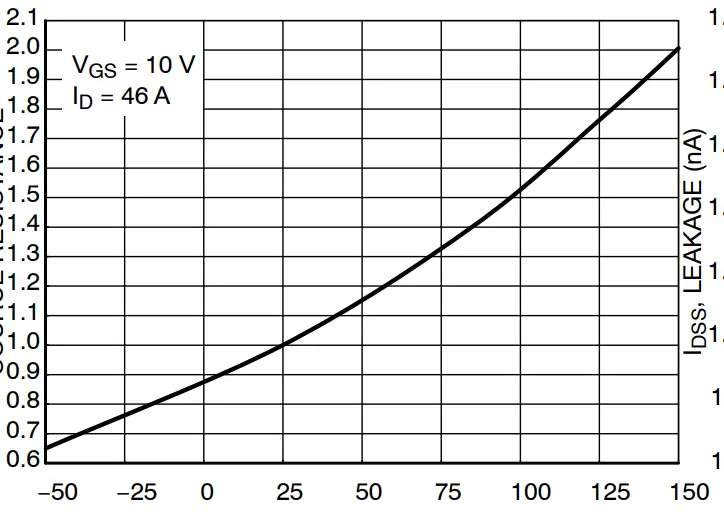

Figure 5. On−Resistance Variation with Temperature

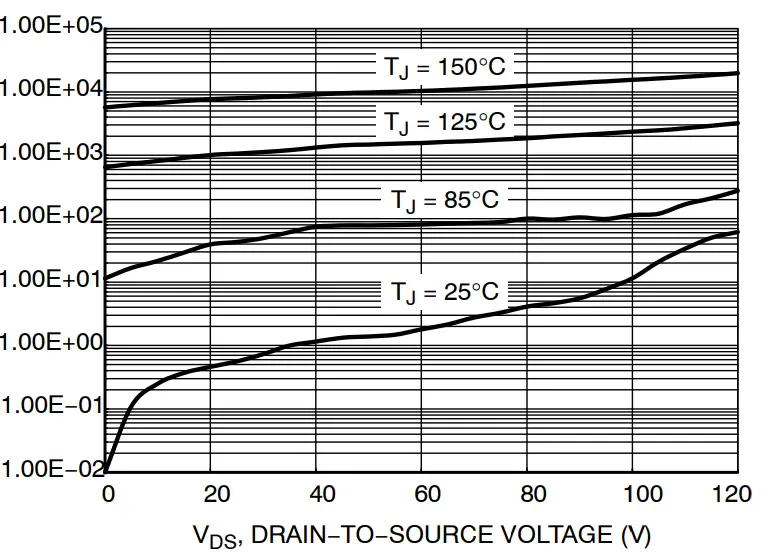

Figure 6. Drain−to−Source Leakage Current vs. Voltage

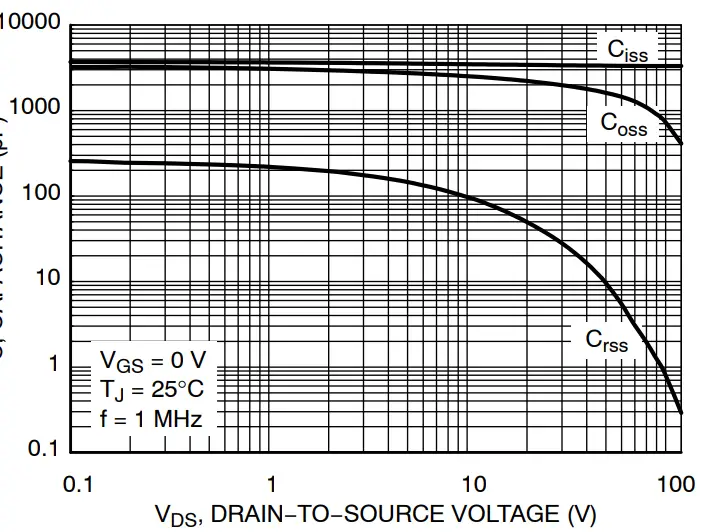

Figure 7. Capacitance Variation

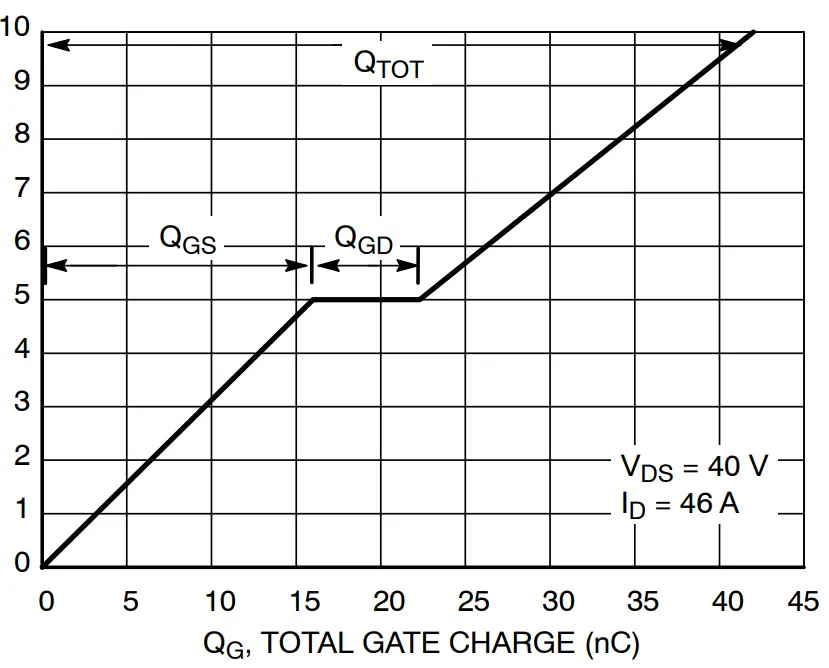

Figure 8. Gate−to−Source vs. Total Charge

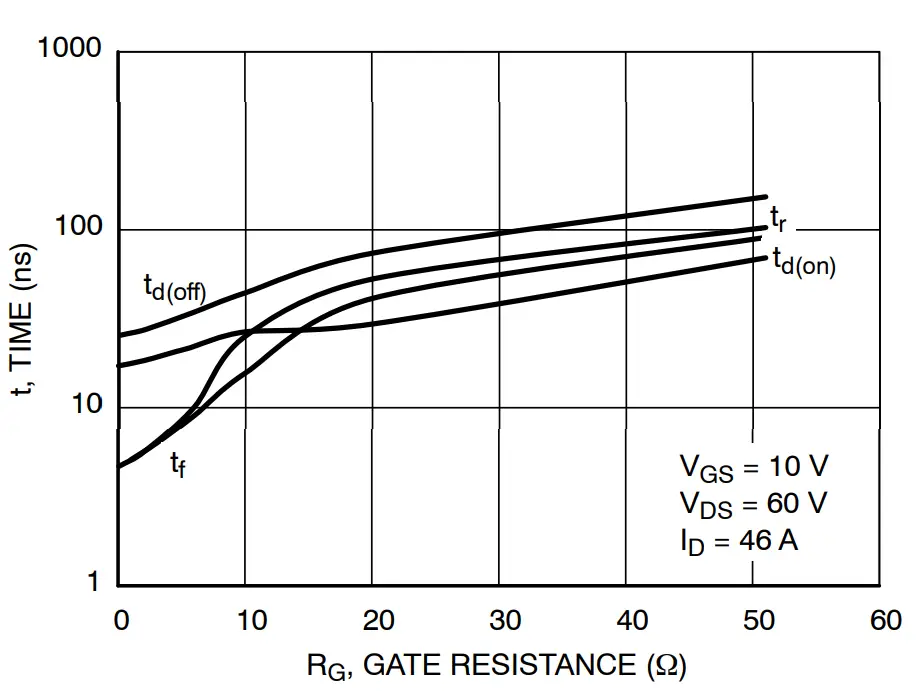

Figure 9. Resistive Switching Time Variation vs. Gate Resistance

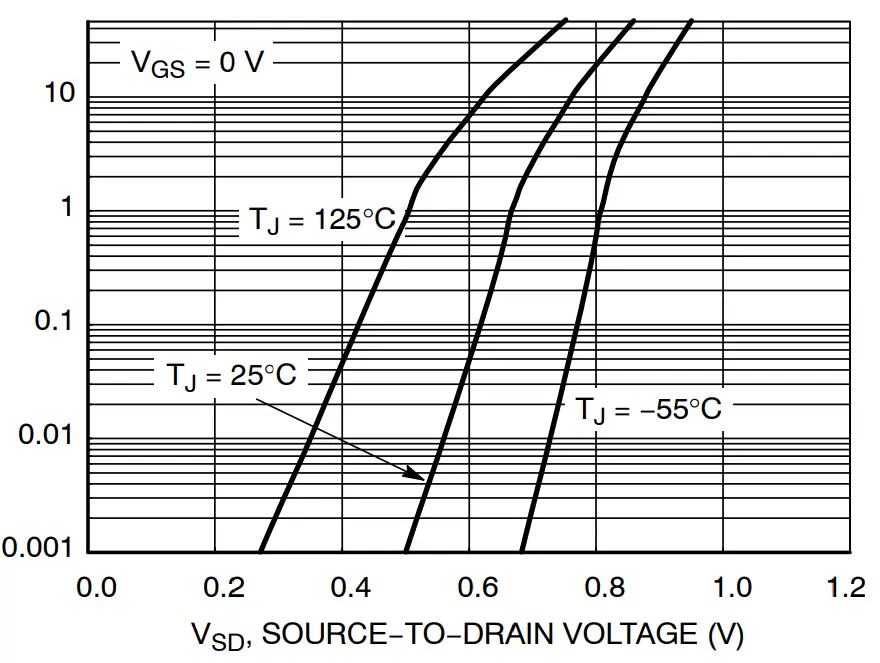

Figure 10. Diode Forward Voltage vs. Current

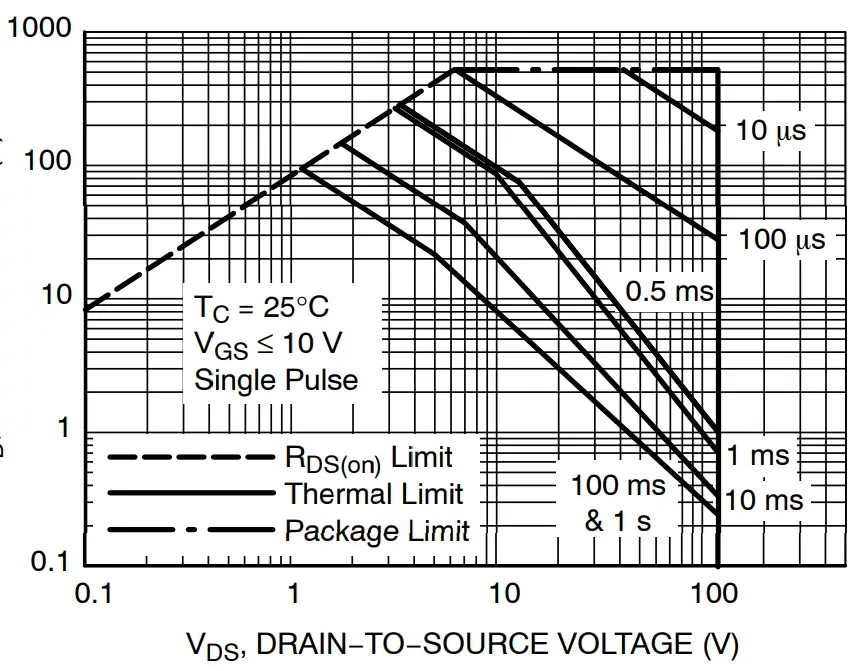

Figure 11. Maximum Rated Forward Biased Safe Operating Area

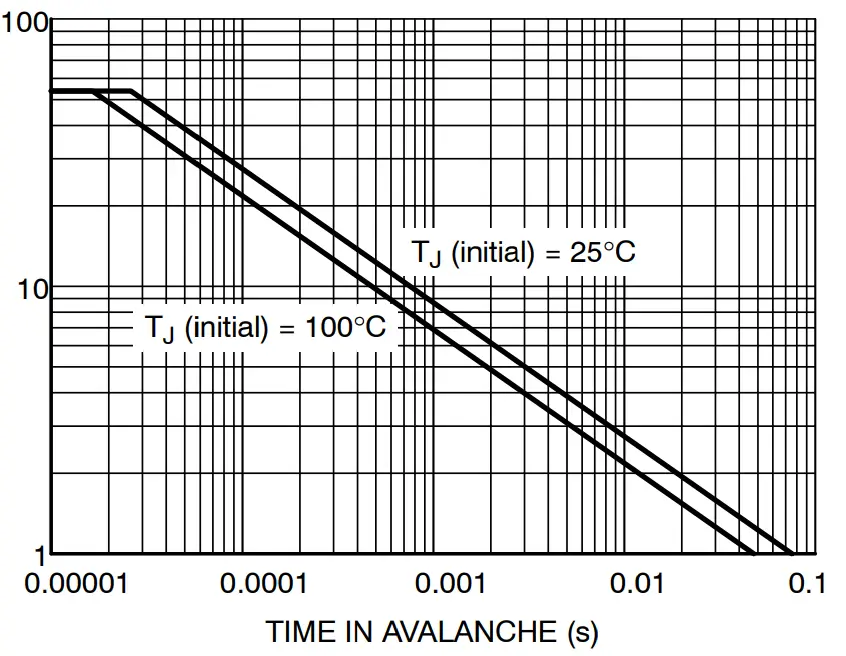

Figure 12. Maximum Drain Current vs. Time in Avalanche

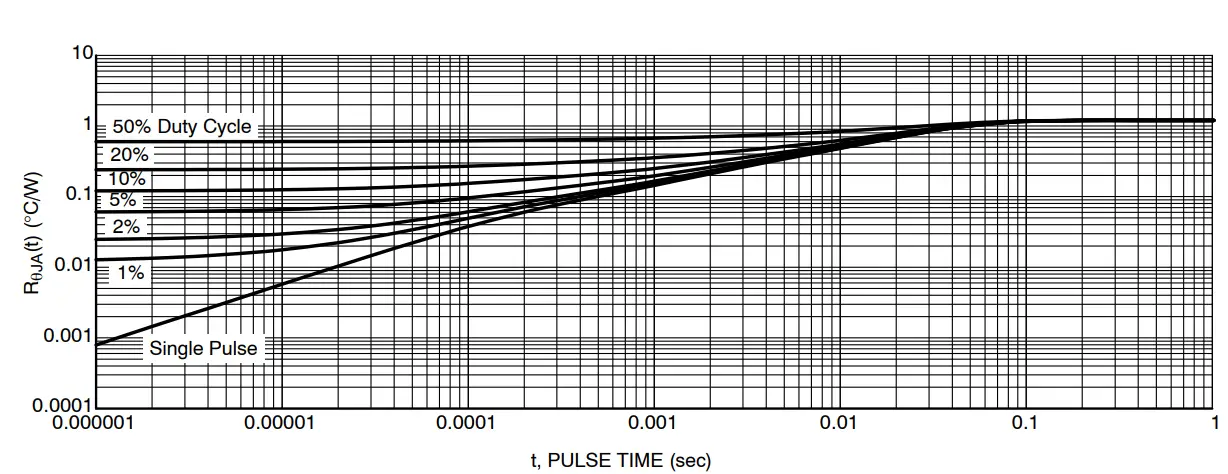

Figure 13. Thermal Response
DEVICE ORDERING INFORMATION
| Device | Marking | Package | Shipping† |
| NTMFS006N12MCT1G | 06N12C | DFN5(Pb−Free) | 1500 / Tape & Reel |
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.

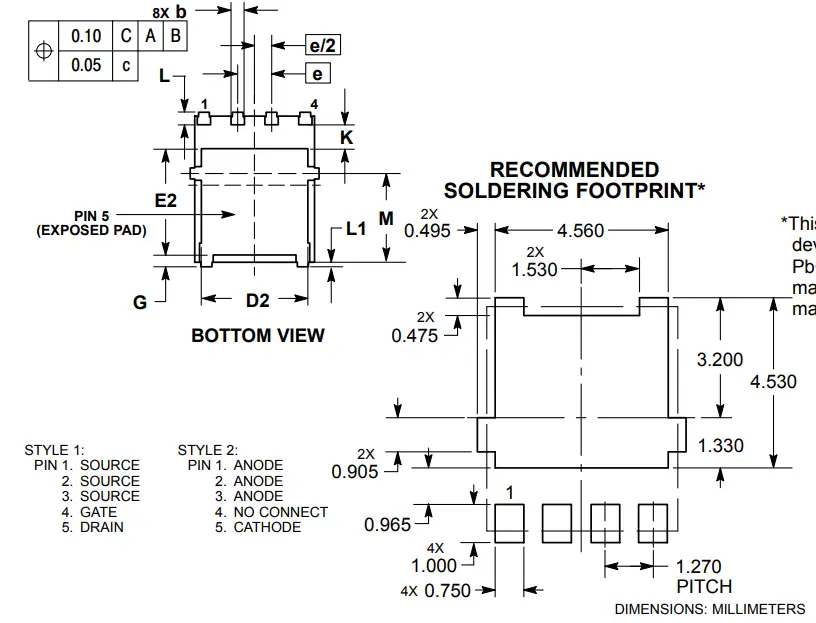

PACKAGE DIMENSIONS
SCALE 2:1
DFN5 5×6, 1.27P (SO−8FL) CASE 488AA ISSUE N
- For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D
NOTES
- DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
- CONTROLLING DIMENSION: MILLIMETER.
- DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.
DIM
MILLIMETERS MIN NOM MAX A 0.90 1.00 1.10 A1 0.00 −−− 0.05 b 0.33 0.41 0.51 c 0.23 0.28 0.33 D 5.00 5.15 5.30 D1 4.70 4.90 5.10 D2 3.80 4.00 4.20 E 6.00 6.15 6.30 E1 5.70 5.90 6.10 E2 3.45 3.65 3.85 e 1.27 BSC G 0.51 0.575 0.71 K 1.20 1.35 1.50 L 0.51 0.575 0.71 L1 0.125 REF M 3.00 3.40 3.80 θ 0 ° −−− 12 °
XXXXXX = Specific Device Code
A = Assembly Location
Y = Year
W = Work Week
ZZ = Lot Traceability
- This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ ”, may or may not be present. Some products may not follow the Generic Marking
