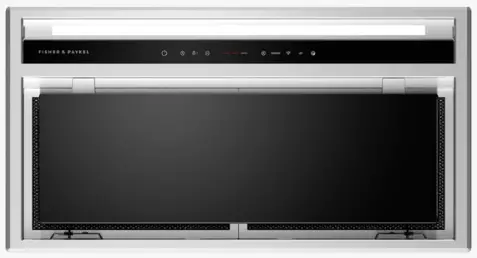

FISHER PAYKEL HP60IDCHEX4 Integrated Rangehood
INTRODUCTION
This integrated insert rangehood has an externally installed inline motor to deliver near silent yet powerful extraction of steam, grease and cooking odours.
- With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
- External motor delivers near silent operation in the kitchen
- Powerful maximum air movement of 1200m³/hr
- Wi-Fi enabled for notifications through the SmartHQ™ app

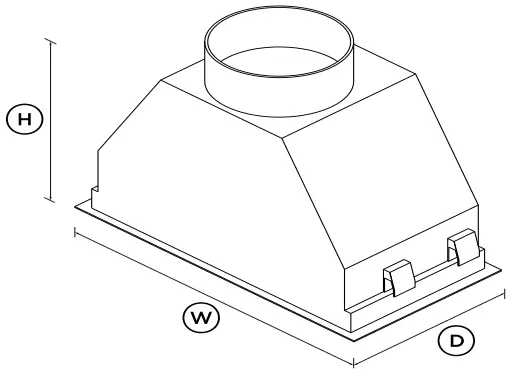

DIMENSIONS
| Height | 315mm |
| Width | 530mm |
| Depth | 280mm |
FEATURES & BENEFITS
NEAR SILENT EXTRACTION
The powerful external motor is installed outside the home to deliver near silent extraction of cooking odours and steam from the kitchen.
SEAMLESS INTEGRATION
This rangehood can be built into your cabinetry for a seamless look. A black glass control panel and stainless steel finish are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
EFFECTIVE EXTRACTION
This rangehood features three fan speeds plus boost function, providing powerful extraction to quickly remove odours and steam. As odours can linger in the kitchen well after cooking is finished, the timer keeps the rangehood working for up to 15 minutes before automatically turning off.
FULL SURFACE LIGHTING
Energy-efficient, dimmable LED lights provide superb illumination over the entire cooking surface.
SEAMLESS CONTROL
Connect this rangehood with an enabled Fisher & Paykel cooktop* via bluetooth. This smart functionality lets your cooktop take control of this hood and automatically activates the hood fan and lights when the cooktop is turned on. Fan speed can also be adjusted based on cooktop power. *This functionality is only available on selected Fisher & Paykel cooktops.
EASY CLEANING
Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filters to ensure you get the best performance out of your rangehood.
CONSIDERED EFFICIENCY
The right amount of air is extracted to effectively remove cooking odours with reduced effect on your heating or air conditioning.
SPECIFICATIONS
| Accessories | |
| Aluminium filte | 792942 |
| External motor kit | 50170 HB 1200E* (included) |
| Extra ducting length | 792961 |
| Light bulb | requires service to replace |
| Fan ratings | |
| Maximum air movement | 1200m³/hr |
| Installation and cleaning | |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Performance | |
| Extraction type | Perimeter |
| Fan speeds | 3 |
| Filter type | Mesh with perimeter |
| Number of filters | 2 |
| Power requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 240V |
| Product dimensions | |
| Depth | 280mm |
| Height | 315mm |
| Width | 530mm |
| Product information | |
| Control type | Capacitive touch |
| Ventilation features | |
| Auto-off/Run-on timer | • |
| Bluetooth connectivity | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Timer function | • |
| Wi-Fi connectivity | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 50191 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
