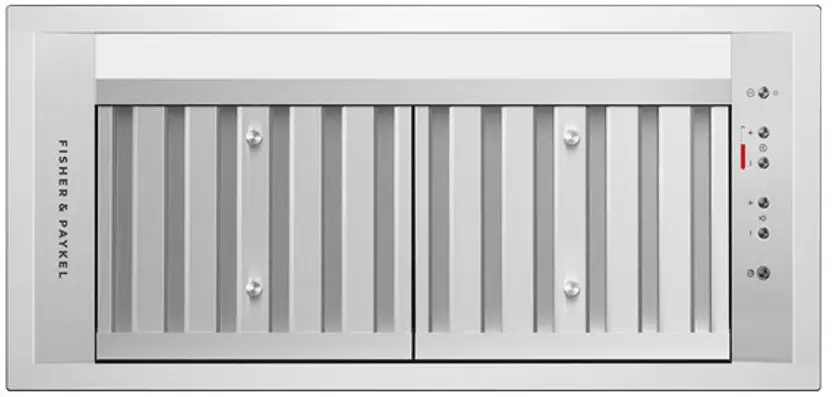

HPB6028-1 60cm Integrated Insert Rangehood
User Guide
With edge-to-edge extraction, this efficient, stylish rangehood is perfectly hidden away in your cabinetry.
- With five fan speeds, select the perfect extraction rate for your cooking
- With dimmable LED strip lighting
- 700m³/hr maximum airflow
- Dishwasher safe filters that are easy to remove and clean

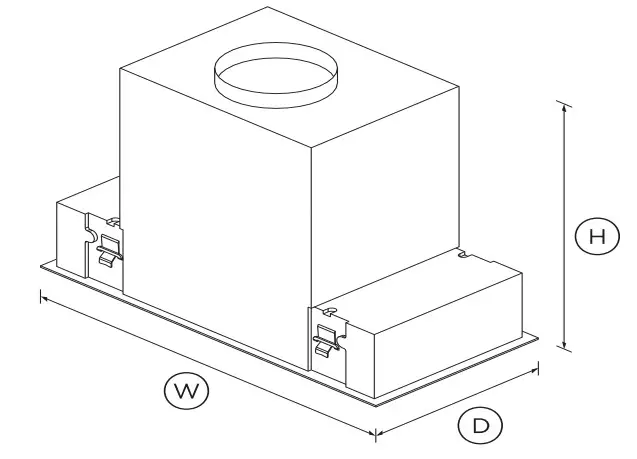

DIMENSIONS
| Height | 407mm |
| Width | 580mm |
| Depth | 280mm |
FEATURES & BENEFITS
EDGE TO EDGE EXTRACTION
Filters effectively reach edge to edge, which maximises the extraction area.
FULL SURFACE LIGHTING
The even lighting provides full coverage of the cooktop, illuminating food in its true colour, with no hot or dark spots and no glare or shadows. The dimmable lights have fade in and fade out features.
EASY TO USE
This easy to use rangehood operates with fingertip control of LED-illuminated soft touch buttons. Selected models also come with a remote control.
ENERGY EFFICIENCY
Powered by a brushless DC motor, the Integrated Rangehood operates more efficiently, more reliably and with less noise than units with AC motors.
EFFORTLESS CLEANING
The stainless steel filters are easy to remove and are dishwasher safe. A self-contained grease tray within the filters makes them very easy to clean.
SIMPLE INSTALLATION
The simple installation process is compatible with most precut cabinetry. The adjustable mounting system can be installed with 16mm to 38mm cabinetry board.
SPECIFICATIONS
| Accessories | |
| Remote control | 50137 HPBRF1* |
| Fan ratings | |
| Maximum air movement | 700m³/hr |
| Speed 3 sound rating | 54dBA |
| Installation and cleaning | |
| Dishwasher safe filters | 2 |
| Ducted | Vertical only |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 5 |
| Filter type | Stainless Steel Baffle |
| Power requirements | |
| Supply voltage | 230V |
| Product dimensions | |
| Depth | 280mm |
| Height | 407mm |
| Width | 580mm |
| Product information | |
| Control type | Electronic |
| Ventilation features | |
| Auto-off/Run-on timer | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Number of light settings | 5 |
| Over heat sensing | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 50138 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
