FISHER PAYKEL - logoQUICK REFERENCE GUIDE > BGB36-BQAR-N
DCS Grill, 36″, Rotisserie
Series 7 | All
Stainless Steel | Natural gasFISHER PAYKEL BGB36-BQAR-N 36 Inch DCS Grill Rotisserie

BGB36-BQAR-N 36 Inch DCS Grill Rotisserie

Bring style and cooking flexibility to your outdoor space. With plenty of room to prepare food, to grill or slow cook with rotisserie.

  • Three grill burners and an infrared rotisserie burner
  • Build in to your outdoor kitchen bench, or purchase our DCScart separately to create a freestanding grill.
  • The infrared rotisserie burner is ideal for slow-cooking and roasting meats evenly with controlled searing.
  • Constructed from 304-grade stainless steel, designed for outdoor durability and performance

DIMENSIONS

Height616mm
Width912mm
Depth673mm

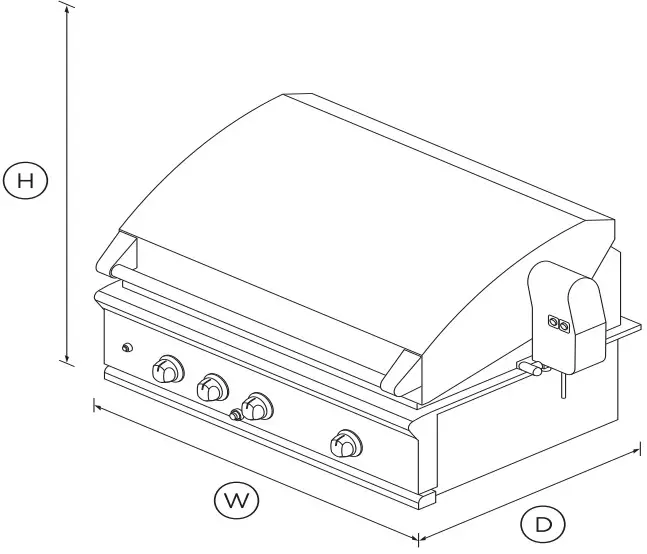

FISHER PAYKEL BGB36-BQAR-N 36 Inch DCS Grill Rotisserie - Figure

FEATURES & BENEFITS

GREASE MANAGEMENT SYSTEM™
The patented Grease Management System™ reduces flare-ups by channeling grease and oils away from the burner flames during grilling.
FULL SURFACE SEARING
Double-sided cast stainless steel grilling grates deliver perfect sear lines while at the same time, conveniently channeling away oil to an easily removable capture tray.
DESIGN QUALITY
Designed to last a lifetime and featuring heavy grade 304 stainless steel throughout, these grills are cleverly engineered and detailed with welded & polished seams, heavy duty fittings, handles and controls.
HEAVY-DUTY ROTISSERIE
An infrared rotisserie burner provides controlled searing heat, and its heavy duty motor with stainless steel hexagonal rod and adjustable forks can accommodate a 25kg load.
TOTAL VISIBILITY
The Smart Beam™ grill light illuminates the entire cooking surface for better visibility at night. A 40 watt halogen light is integrated into the patented weather proof rotisserie motor, making it easily accessible and ergonomic.
STAINLESS STEEL BURNERS
The precision ported u-shaped stainless steel burners are rated at a significant 27 MJ/h each – designed for premium quality and performance.

SPECIFICATIONS

Burner ratings
Grill burners27 MJ/h
Integrated rotisserie burner14 MJ/h
Regulator pressure1kPa
Total nominal gas consumption95 MJ/h
Burners
Rotisserie1
Cooking Surface Area
Primary cooking area0.41sq. m.
Total cooking area0.56sq. m.
Warming rack area0.16sq. m.
Features
304 Grade stainless steel  gas
304 grade Stainless Steel
Designer metal control knobs
Double sided Stainless Steel
Full surface searing
Removable Stainless Steel
Rotisserie system
Secondary cooking1-level warming rack
Stainless steel drip tray
Finish
Weather resistant
Installation
Available in built-in or on cart
Optional cart mountCAD1-36
Performance
Ceramic radiant technology
Grease management system™
Speed of rotisserie6 rpm
Weight rotisserie can handle25kg
Power requirements
Grill power supply9V Battery for Ignition
Rotisserie power supply240V
Rotisserie supply frequency50Hz
Product dimensions
Depth673mm
Height616mm
Width912mm
Warranty
Parts and labourLimited 2 years
SKU85243

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
