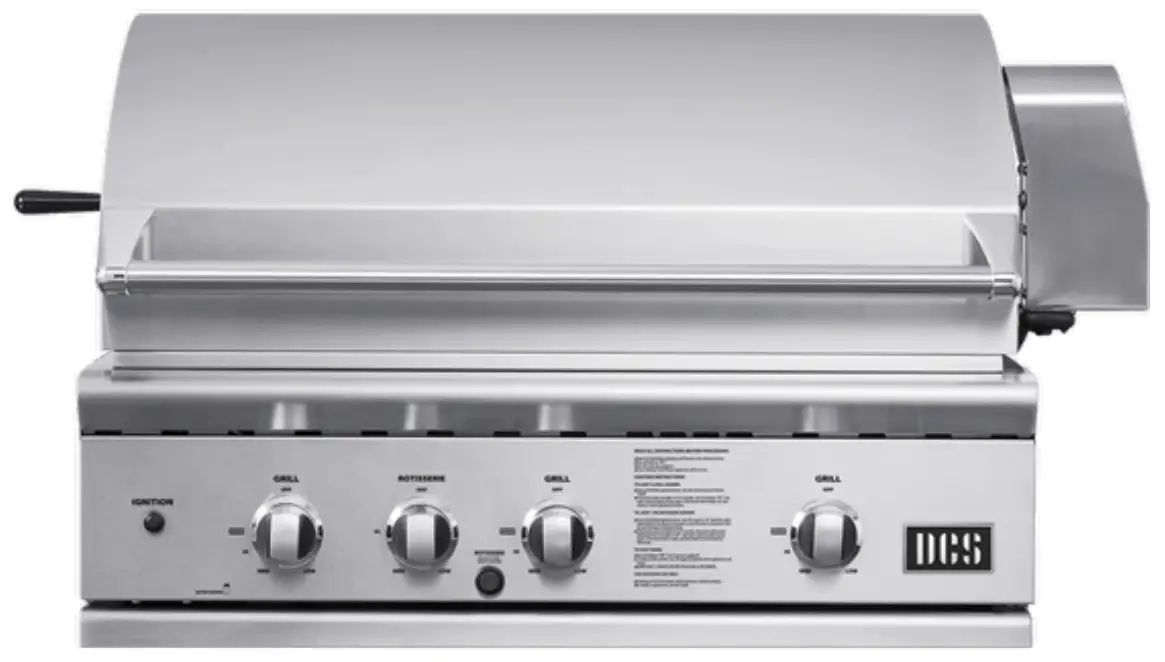

FISHER PAYKEL BGB36-BQAR-L DCS Grill, 36 Inch, Rotisserie
INTRODUCTION
Bring style and cooking flexibility to your outdoor space. With plenty of room to prepare food, to grill or slow cook with rotisserie.
- Three grill burners and an infrared rotisserie burner
- Build in to your outdoor kitchen bench, or purchase our DCS cart separately to create a freestanding grill.
- The infrared rotisserie burner is ideal for slow-cooking and roasting meats evenly with controlled searing.
- Constructed from 304-grade stainless steel, designed for outdoor durability and performance

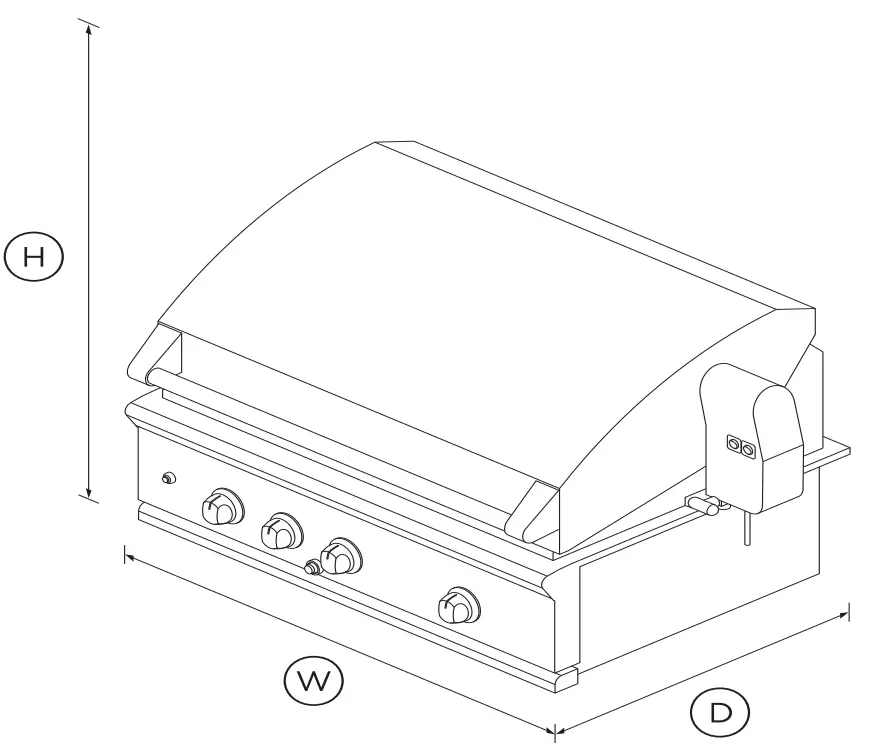

DIMENSIONS
- Height 616mm
- Width 912mm
- Depth 673mm
FEATURES & BENEFITS
GREASE MANAGEMENT SYSTEM™
The patented Grease Management System™ reduces flare-ups by channeling grease and oils away from the burner flames during grilling.
FULL SURFACE SEARING
Double-sided cast stainless steel grilling grates deliver perfect sear lines while at the same time, conveniently channeling away oil to an easily removable capture tray.
DESIGN QUALITY
Designed to last a lifetime and featuring heavy grade 304 stainless steel throughout, these grills are cleverly engineered and detailed with welded & polished seams, heavy duty fittings, handles and controls.
HEAVY-DUTY ROTISSERIE
An infrared rotisserie burner provides controlled searing heat, and its heavy duty motor with stainless steel hexagonal rod and adjustable forks can accommodate a 25kg load.
TOTAL VISIBILITY
The Smart Beam™ grill light illuminates the entire cooking surface for better visibility at night. A 40 watt halogen light is integrated into the patented weather proof rotisserie motor, making it easily accessible and ergonomic.
STAINLESS STEEL BURNERS
The precision ported u-shaped stainless steel burners are rated at a significant 27 MJ/h each – designed for premium quality and performance.
SPECIFICATIONS
| Burner ratings | |
| Grill burners | 26.5 MJ/h |
| Integrated rotisserie burner | 16.5 MJ/h |
| Regulator pressure | 2.75kPa |
| Total nominal gas consumption | 96 MJ/h |
| Cooking Surface Area | |
| Primary cooking area | 0.41sq. m. |
| Total cooking area | 0.56sq. m. |
| Warming rack area | 0.16sq. m. |
| Features | |
| 304 Grade stainless steel gas | • |
| 304 grade Stainless Steel | • |
| Designer metal control knobs | • |
| Double sided Stainless Steel | • |
| Full surface searing | • |
| Removable Stainless Steel | • |
| Rotisserie system | • |
| Secondary cooking | 1-level warming rack |
| Stainless steel drip tray | • |
| Finish | |
| Weather resistant | • |
| Installation | |
| Available in built-in or on cart | • |
| Optional cart mount | CAD-36E |
| Performance | |
| Ceramic radiant technology | • |
| Grease management system™ | • |
| Speed of rotisserie | 6 rpm |
| Weight rotisserie can handle | 25kg |
| Power requirements | |
| Grill power supply | 9V Battery for Ignition |
| Rotisserie power supply | 240V |
| Rotisserie supply frequency | 50Hz |
| Product dimensions | |
| Depth | 673mm |
| Height | 616mm |
| Width | 912mm |
| Warranty | |
| Parts and labour | Limited 2 years |
| SKU | 85242 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
