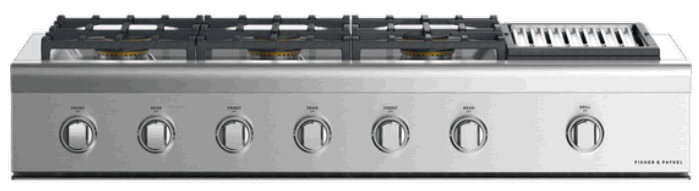

QUICK REFERENCE GUIDE > CPV2-486GLN N
Gas Rangetop, 48″, Grill
Series 9 | Professional
Stainless Steel | Natural gas
Cook with the power and precision of a professional, with this large cooking space that includes six gas burners and a grill.
- Your burners can deliver anything from very high 23,500 BTU heat for seriously fast boiling, to the most gentle flame for simmering
- Flexible cooking with grilling option, which includes grease channeling technology, minimizing fat drips and smoke

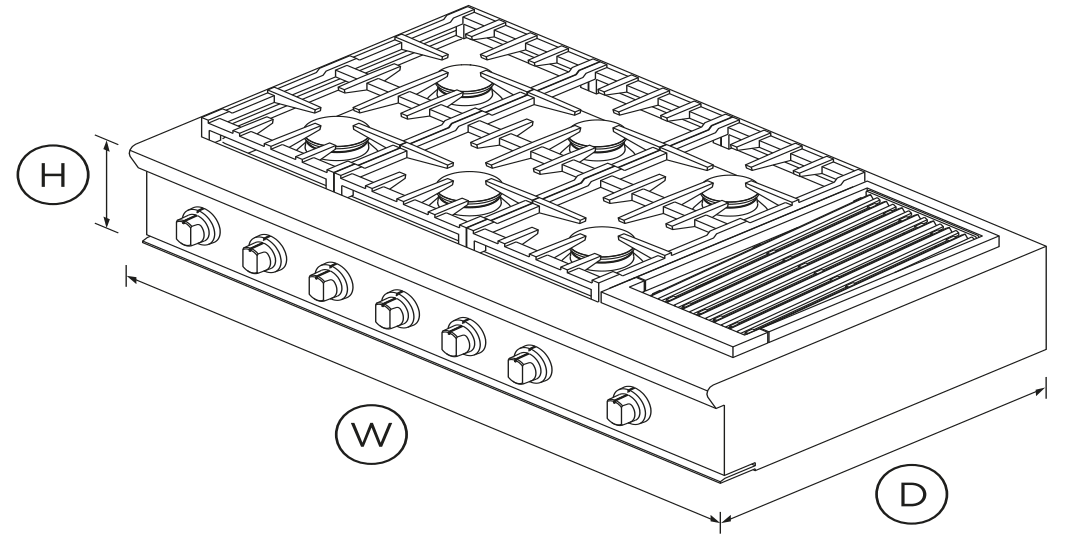

DIMENSIONS
| Height | 8 5/16″ |
| Width | 47 7/8″ |
| Depth | 28″ |
FEATURES & BENEFITS
Perfect heat
Sealed Dual Flow Burners™ deliver range top power up to 23,500BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Precise control
From the highest to the lowest temperatures you get total control with halo-illuminated range top dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility
This model allows you to grill on your range top and includes grease channeling technology with double-sided cast 304-grade stainless steel grates that drain fat during cooking and help reduce smoke output.
Easy cleaning
These rangetops have sealed burners and a single sheet cooking surface which, combined with a commercial-style stainless steel finish and dishwasher-safe grates, allow easy cleaning.
Information at a glance
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Complementary Design
Built to last with distinctive, bold styling, this range top is designed to match the Fisher & Paykel Professional style family of appliances.
SPECIFICATIONS
Burner ratings
| Max burner power | 23500BTU |
| Power back center | 18500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front center | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 18500BTU |
| Power griddle | 12000BTU |
Controls
| Metal illuminated dials | • |
Performance
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120VV |
Product dimensions
| Depth | 28″ |
| Height | 8 5/16″ |
| Width | 47 7/8″ |
Recommended Back Guards Ventilation
| Minimum CFM | 1200 BTU |
| Pro hood | VS48 |
Warranty
| Parts and labor | 2 years |
| SKU | 71382 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
