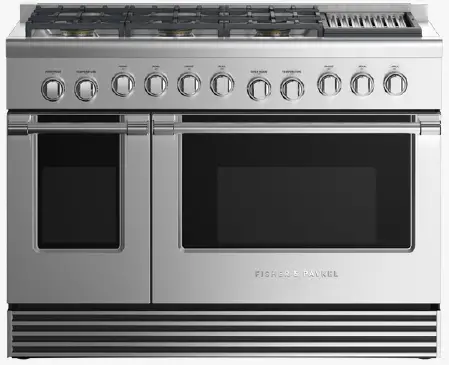

FISHER PAYKEL RGV2-486GL-N_N Gas Range 48 Inch 6 Zones Burners with Grill
With Professional styling, this large range has six burners delivering powerful high heat, a grill and two gas ovens.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes

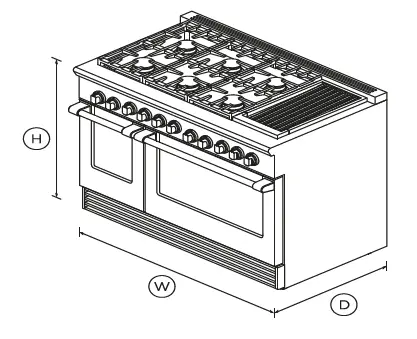

DIMENSIONS
- Height 35 3/4 – 36 3/4″
- Width 47 7/8″
- Depth 29 1/8″
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
Easy to clean
A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
<<Missing Feature Title>>
This range has been carefully crafted in every detail from performance to durability using quality materials.
SPECIFICATIONS
Accessories
Square handle option AH-R48
Burner ratings
- Maximum burner power 23500 BTU
- Power back centre 18500BTU
- Power back left 18500BTU
- Power back right 18500BTU
- Power front centre 18500BTU
- Power front left 23500BTU
- Power front right 18500BTU
- Power griddle 12000BTU
- Total cooktop power 128000 BTU
Capacity
- Shelf positions 5
- Shelf positions 5
Controls
- Electric circuit 3 wire
- Metal illuminated dials •
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (natural gas) | 6″ to 9″ W.C |
| Main oven – Bake power | 28,000 BTU |
| Main oven – Broil power | 19,000 BTU |
| Secondary oven – Bake power | 18,000 BTU |
| Amperage | 15A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Sealed Dual Flow Burners™ | 6 |
| Sealed range top | • |
| Vent trim included | • |
| ADA compliant | • |
| Full extension telescopic | • |
| Electronic oven control | • |
| Internal light | • |
| Bake | • |
| Number of secondary oven | 2 |
| Proof | • |
| SKU | 71348 |
Other product downloads available at fisherpaykel.com
- User Guide
- Service & Warranty
- Installation Guide
- Data Sheet Gas Range
- Planning Guide Gas Range
