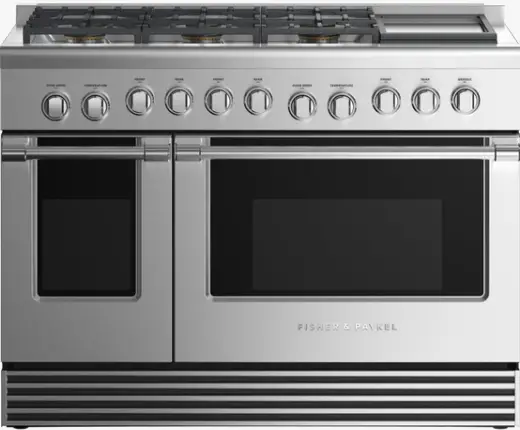

FISHER PAYKEL RGV2-486GD-L_N Gas Range 48 Inch 6 Burners with Griddle User Guide
A striking addition to your kitchen, with six powerful gas burners and two gas ovens giving you a combined capacity of 7.7 cu ft.
- Top burner heat of 19,000 BTU, for seriously fast boiling
- Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes

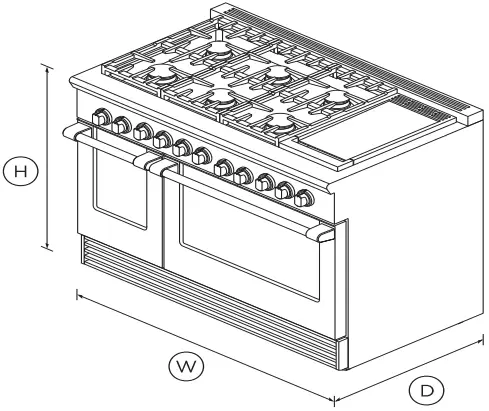

DIMENSIONS
- Height: 35 3/4 – 36 3/4″
- Width: 47 7/8″
- Depth: 29 1/8″
FEATURES & BENEFITS
COOKTOP POWER
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
INSTANT VISIBILITY
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
EASY TO CLEAN
A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
COOKING FLEXIBILITY
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
DESIGN QUALITY
This range has been carefully crafted in every detail from performance to durability using quality materials.
SPECIFICATIONS
Accessories
- Square handle option: AH-R48
Burner ratings
- Maximum burner power: 19000 BTU
- Power back centre: 13000BTU
- Power back left: 13000BTU
- Power back right: 13000BTU
- Power front centre: 15000BTU
- Power front left: 19000BTU
- Power front right: 15000BTU
- Power griddle: 15000BTU
- Total cooktop power: 103000 BTU
Capacity
- Shelf positions: 5
- Shelf positions: 5
Controls
- Electric circuit: 3 wire
- Metal illuminated dials: •
Gas Requirements
- Fitting and pipe: ½ NPT, min. ⅝” flex line
- Supply Pressure (LPG): 11″ to 14″ W.C
Oven performance
- Main oven – Bake power: 22,000 BTU
- Secondary oven – Bake power: 18,500 BTU
Power requirements
- Amperage: 15A
- Rated current: 15A
- Supply frequency: 60Hz
Product dimensions
- Depth: 29 1/8″
- Height: 35 3/4 – 36 3/4″
- Width: 47 7/8″
Rangetop features
- Sealed Dual Flow Burners™: 6
- Sealed range top: •
Vent trim included
- Recommended: Back Guards Ventilation
- Combustible situation: BGRV2-3048H
- Minimum: CFM 1200
- Non combustible situation: BGRV2-3048 / BGRV2-1248
- Recommended hood: HCB48-12_N (48″”
Safety
- ADA compliant: •
- Full extension telescopic: •
Secondary oven features
- 3/4 Extension racks: 2
- Electronic oven control: •
- Internal light •
- Secondary oven functions
- Bake: •
- Number of secondary oven: 2
- Proof: •
SKU: 7134
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctl
