QUICK REFERENCE GUIDE > RGV2-486GD-N_N
Gas Range 48″, 6 Burners with griddle
Series 7 | Professional
Stainless Steel | Natural gas
User Guide

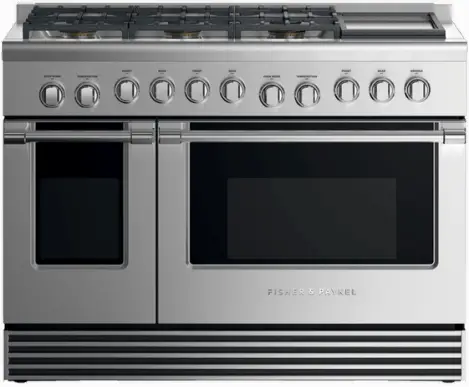

RGV2-486GD-N_N Gas Range 48″, 6 Burners with Griddle
With Professional styling, this large range has six burners delivering powerful high heat, a griddle, and two gas ovens.
- Top burner heat of 23,500 BTU, for seriously fast boiling Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in the main cavity for safe removal of hot dishes

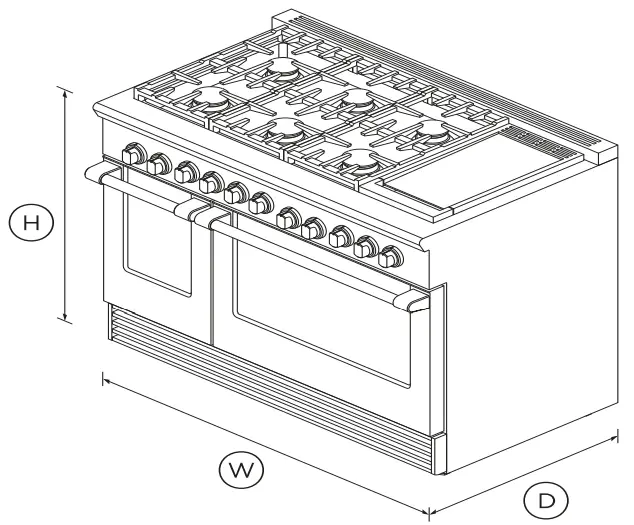

DIMENSIONS
| Height | 35¾ 36¾” |
| Width | 47 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and
consistent temperatures.
Easy to clean
A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full-size baking sheets.
<<Missing Feature Title>>
This range has been carefully crafted in every detail from performance to durability using quality materials.
SPECIFICATIONS
| Accessories | |
| Square handle option | AH-R48 |
| Controls | |
| Metal illuminated dials | • |
| Gas requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” Ø flex line |
| Supply Pressure (natural gas) | 6″ to 9″ W.C |
| Main oven features | |
| Broil pan | • |
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Electronic oven control | • |
| Full extension telescopic racks | 3 |
| Infrared Broiler | • |
| Internal Light | • |
| Shelf positions | 5 |
| Main oven functions | |
| Bake | • |
| Broil | • |
| Convection bake | • |
| Number of the main ovens | 3 |
| Oven performance | |
| Main oven – Bake power | 28,000 BTU |
| Main oven – Broil power | 19,000 BTU |
| Secondary oven – Bake power | 18,000 BTU |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | |
| Height | |
| Width | |
| Rangetop features | |
| Dishwasher safe trivets | • |
| Sealed Dual Flow Burners™ | 6 |
| Sealed range top | • |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Rangetop Performance | |
| Max burner power | 23,500 BTU |
| Power back center | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front center | 18,500 BTU |
| Power front left | 23,500 BTU |
| Power front right | 18,500 BTU |
| Power griddle | 16,500 BTU |
| Total cooktop power | 132,500 BTU |
| Recommended back guards and ventilation | |
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1,200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48″ Professional |
| Safety | |
| Full extension telescopic | • |
| Secondary oven features | |
| 3/4 Extension racks | 2 |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Electronic oven control | • |
| Internal light | • |
| Shelf positions | 5 |
| Secondary oven functions | |
| Bake | • |
| Number of secondary ovens | 2 |
| Proof | • |
| Warranty | |
| Parts and labor | Limited 2 years |
| SKU | 71346 |
TEST The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
