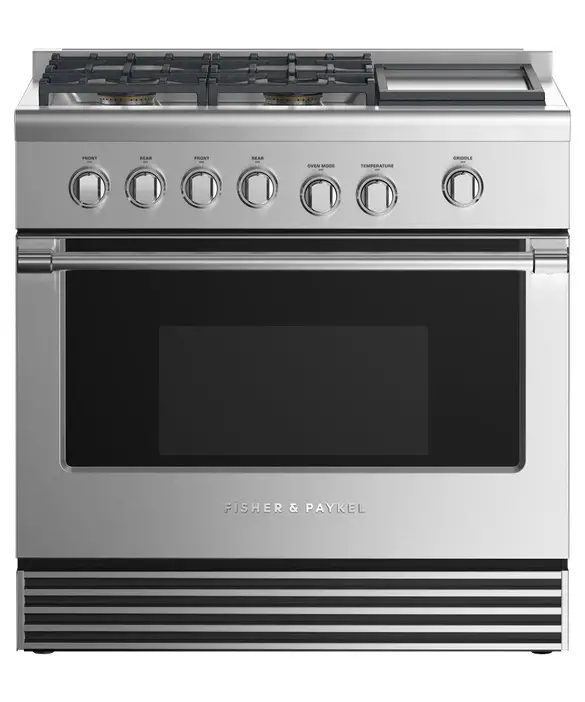

RGV2-364GD-N_N Gas Range, 36″, 4 Burners with Griddle
User Guide
Cook with flair and flexibility, with this large Professionally-styled range that includes four gas burners, a griddle, and a gas oven.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Gas oven with 5.3 cu ft total capacity and three functions
- Non-tip full-extension shelves for safe removal of hot dishes
DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 35 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
Easy to clean
A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full-size baking sheets.
Design quality
This range has been carefully crafted in every detail from performance to durability using quality materials.
SPECIFICATIONS
| Accessories | |
| Square handle option | AH-R36 |
| Burner ratings | |
| Power back left | 18500 BTU |
| Power back right | 18500 BTU |
| Power front right | 18500 BTU |
| Power griddle | 16500 BTU |
| Cleaning | |
| Dishwasher proof grates | • |
| Controls | |
| Electric circuit | 3 wire |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Oven Features | |
| Full extension telescopic | • |
| Power requirements | |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 35 7/8″ |
| Rangetop features | |
| Sealed Dual Flow Burners™ | 4 |
| Sealed range top | • |
| Vent trim included | • |
| Safety | |
| Full extension telescopic | • |
| SKU | 71352 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
