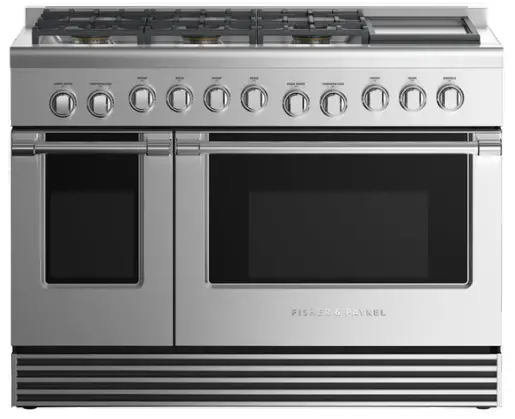

FISHER PAYKEL RGV2-486GD-L N 48 Inch 6 Burners with Griddle Gas Range User Guide
Introduction
A striking addition to your kitchen, with six powerful gas burners and two gas ovens giving you a combined capacity of 7.7 cu ft.
- Top burner heat of 19,000 BTU, for seriously fast boiling
- Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes

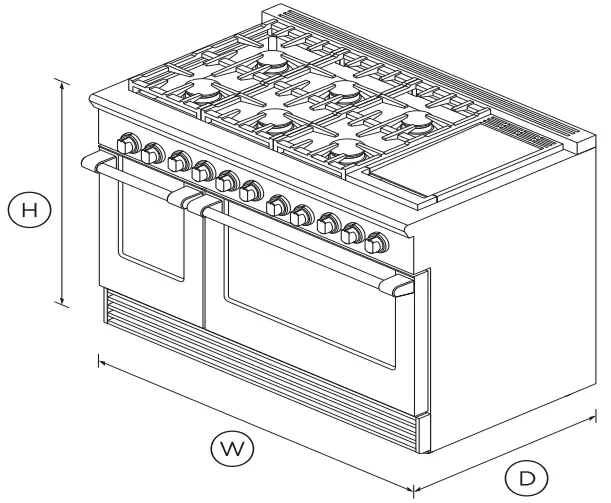

DIMENSIONS
- Height: 35 3/4 – 36 3/4″
- Width: 47 7/8″
- Depth: 29 1/8″
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
Easy to clean
A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
Missing Feature Title
This range has been carefully crafted in every detail from performance to durability using quality materials.
SPECIFICATIONS
| Accessories | |
| Square handle option | AH-R48 |
| Capacity | |
| Capacity total (AHAM) | 5.3cu ft |
| Capacity usable (AHAM) | 3.9cu ft |
| Shelf positions | 5 |
| Cleaning | |
| Dishwasher proof trivets | • |
| Controls | |
| Electric circuit | 3 wire |
| Metal illuminated dials | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex lin |
| Supply Pressure (LPG | 11″ to 14″ W. |
| Supply Pressure (natural gas) | 6″ to 9″ W.C |
| Installation Dimension | |
| Height (excluding vent trim | 35 3/4 – 36 3/4 |
| Oven feature | |
| Full extension telescope | • |
| Oven performance | |
| Bake | |
| Bake | 28000 BTU |
| Main oven – Bake power | 22,000 BTU |
| Secondary oven – Bake power | 18,500 BT |
| Power requirements | |
| Amperage | 15 |
| Rated current | 15A |
| Supply frequency | 60H |
| Product dimensions | |
| Depth | 29 1/8 |
| Height | 35 3/4 – 36 ¾ |
| Width | 47 7/8″ |
| Ridgetop feature | |
| Sealed Dual Flow Burners | • |
| Sealed range top | • |
| Vent trim included | • |
| Ridgetop Performance | |
| Max burner power | 19,000 BTU |
| Power back center | 13,000 BT |
| Power back left | 13,000 BT |
| Power back rights | 13,000 BT |
| Power front center | 15,000 BTU |
| Power front left | 19,000 BT |
| Power front right | 15,000 BT |
| Power griddle | 15,000 BT |
| Total cooktop power | 103,000 BTU |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV2-3048 |
| Minimum CF | 120 |
| Non combustible situation | BGRV2-3048 / BGRV2-124 |
| Recommended hood | HCB48-12_N (48″ |
| Safety | |
| Full extension telescope | • |
| Secondary oven features | |
| 3/4 Extension rack | 2 |
| Electronic oven control | • |
| Internal light | • |
| Bake | • |
| Number of secondary over | 2 |
| Proof | • |
| SKU | 71347 |
