QUICK REFERENCE GUIDE > HPB9048-2

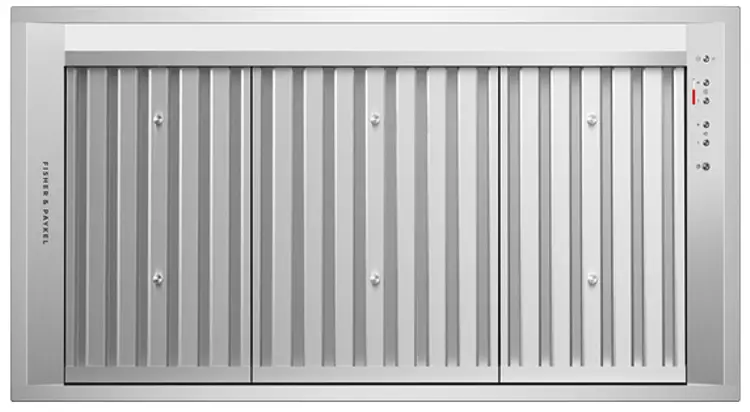

Integrated Insert Rangehood, 90cm
Series 9 | Integrated Stainless Steel
With edge-to-edge extraction, this efficient, stylish rangehood is perfectly hidden away in your cabinetry.
- With five fan speeds, select the perfect extraction rate for your cooking
- With dimmable LED strip lighting
- 1910m³/hr maximum airflow
- Dishwasher-safe filters that are easy to remove and clean

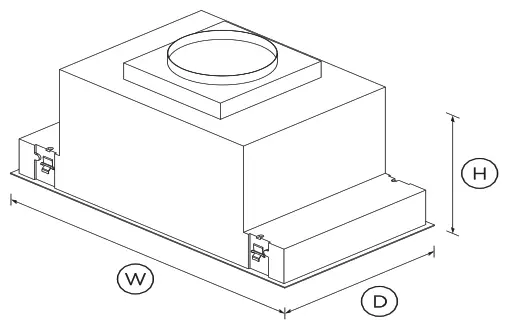

DIMENSIONS
| Height | 462mm |
| Width | 880mm |
| Depth | 480mm |
FEATURES & BENEFITS
Achieve the invisible
This high-quality integrated rangehood seamlessly blends behind cabinetry in a variety of kitchen layouts. Beautiful in its simplicity, this product has brushed finished surfaces with no visible screws.
Edge-to-edge extraction
Filters effectively reach edge to edge, maximizing the capture and extraction of steam, odors, and grease.
Full surface lighting
LED lighting illuminates the entire cooktop surface so you can ensure you have the perfect sear or ideal reduction. With dimmable lights featuring fade-in and fade-out features.
Easy to use
Enjoy fingertip control of LED-illuminated, soft-touch buttons.
This model also comes with remote control for convenience.
Quiet and efficient
Powered by a brushless DC motor, the Integrated Rangehood operates more efficiently, more reliably, and with less noise than units with AC motors.
Easy cleaning
Multi-layered filters effectively trap grease particles during extraction. Designed for simple removal, they’re easy to clean and dishwasher safe.
Simple installation
Designed for simple installation in your kitchen cabinetry, with an adjustable mounting system.
SPECIFICATIONS
Fan ratings
| Maximum air movement | 1910m³/hr |
| Speed 3 sound rating | 57dBA |
Installation and cleaning
| Dishwasher safe filters | 4 |
| Ducted | Vertical only |
Performance
| Extraction type | Surface |
| Fan speeds | 5 |
| Filter type | Stainless Steel Baffle |
Power requirements
| Supply voltage | 230V |
Product dimensions
| Depth | 480mm |
| Height | 462mm |
| Width | 880mm |
Product information
| Control type | Electronic |
Ventilation features
| Auto-off/Run-on timer | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Number of light settings | 5 |
| Overheat sensing | • |
Warranty
| Parts and labor | 2 years |
| SKU | 50143 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
