FISHER PAYKEL HP60IDCHX3 Integrated Insert Rangehood
QUICK REFERENCE GUIDE

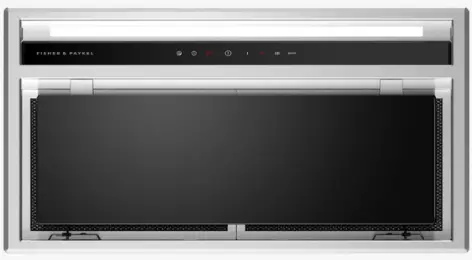

Integrated Insert Rangehood, 60cm
Stainless Steel and Glass
This efficient, stylish rangehood in black glass and stainless steel integrates seamlessly above your cooktop.
- With four fan speeds, select the perfect extraction rate for your cooking
- Powerful maximum air movement 780m³/hr
- Energy-efficient LED lighting illuminates the cooking surface beautifully
- Dishwasher safe filters that are easy to remove and clean
DIMENSIONS
| Height | 315mm |
| Width | 530mm |
| Depth | 280mm |
FEATURES & BENEFITS
Achieve the invisible
The Integrated Insert Rangehood fits seamlessly behind your kitchen cabinetry, providing ventilation that is as discreet as it is powerful.
Effective extraction
Four fan speeds including the powerful “boost” option ensure that odours, vapour and steam are removed quickly and effectively.
Easy cleaning
The glass and stainless steel finishes are easily wiped clean and the aluminium filters are dishwasher safe. An alert reminds you when to clean the filter so that you get the best possible performance.
Quality materials
This rangehood comes in a sleek black glass finish with real stainless steel frame. Hidden energy-effcient LED strip lighting illuminates the cooking surface beautifully.
SPECIFICATIONS
Accessories
- Aluminum filter
- Eave ducting kit
- Light bulb
- Recirculation diverter
- 792942
- PD-RHK150E
- requires service to replace
- Not required
| Maximum air movement | 780m³/hr |
| Maximum pressured air | 820m³/hr |
| Maximum sound rating | 65dBA |
Installation and cleaning
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
Performance
| Extraction type | Perimeter |
| Fan speeds | 4 |
| Number of filters | 2 |
Power requirements
| Supply voltage | 240V |
Product dimensions
| Depth | 280mm |
| Height | 315mm |
| Width | 530mm |
Product information
| Control type | Capacitive touch |
Ventilation features
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Timer function | • |
Warranty
| Parts and labour | 2 years |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
