QUICK REFERENCE GUIDE > HP60ICSX4
Integrated Insert Rangehood, 60cm
Series 5 | Integrated
Stainless Steel
Date: 06.07.2023 > 2

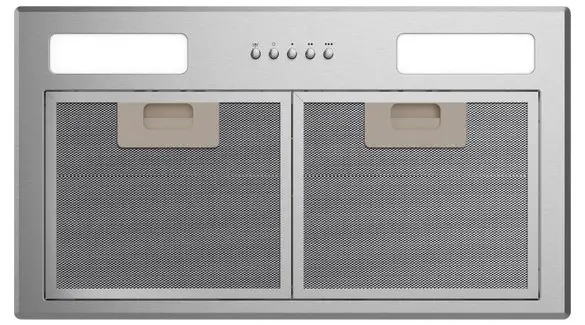

HP60ICSX4 Integrated Insert Rangehood
Providing effective extraction of steam, grease and odours, this sleek rangehood is perfectly hidden away in your cabinetry.
- Effective 780m3/hr airflow
- Seamlessly integrates into your kitchen cabinetry
- Dishwasher-safe aluminium filters for easy cleaning
- Energy-efficient LED lighting illuminates your cooktop
DIMENSIONS
| Height | 285mm |
| Width | 492mm |
| Depth | 277mm |
FEATURES & BENEFITS
SEAMLESS FIT
For a minimal look in your kitchen, this insert rangehood integrates seamlessly into cabinetry above your cooktop.
EFFECTIVE EXTRACTION
Select between three fan speeds to ensure steam, odours and grease are extracted from your kitchen at the rate you need for your cooking.
EASY CLEANING
The aluminium filters are easy to remove and dishwasher-safe, for quick and simple cleaning.
A JOY TO USE
Thoughtful design features enhance your cooking experience, with responsive push-button controls and energy-efficient LED lighting to illuminate your cooktop.
INSTALLED TO SUIT
This rangehood offers ducted or recirculated extraction, so you can choose the solution that best suits your kitchen.
SPECIFICATIONS
Accessories
| Aluminium filter | 793597 |
Accessories (sold separately)
| Recirculation carbon filter | 792481 |
Fan ratings
| Maximum pressured air | 780m³/hr |
Installation and cleaning
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Recirculation | Optional |
Performance
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 2 |
Power requirements
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 277mm |
| Height | 285mm |
| Width | 492mm |
Product information
| Control type | Push |
Ventilation features
| Light type | LED |
Warranty
| Parts and labour | 2 years |
| SKU | 61786 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | Installation & User Guide Built-in Integrated Rangehood |
| Preliminary Specification Guide Integrated Rangehood |
