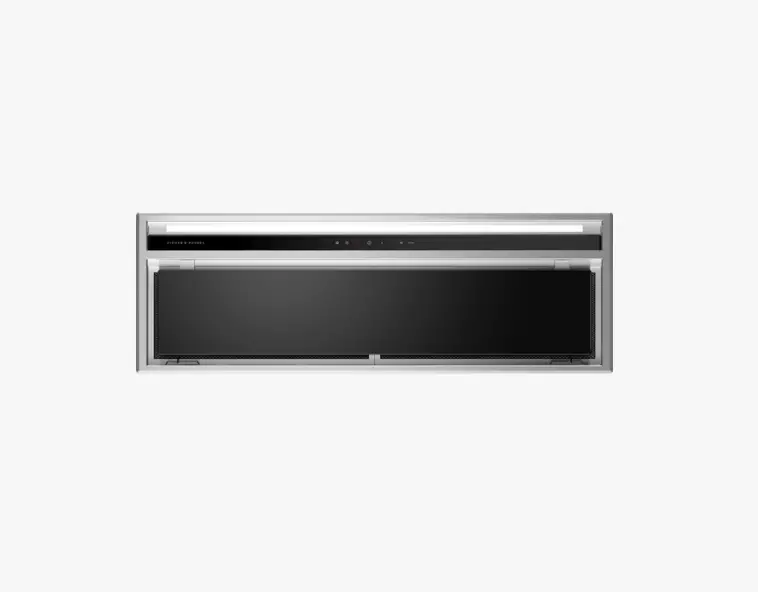

QUICK REFERENCE GUIDE > HP90IDCHEX3
Integrated Insert Rangehood,
90cm, with External Motor
Series 7 | Integrated
Stainless Steel and Glass
Seamlessly fits in cabinetry above your cooktop, with an external motor for near silent yet powerful extraction in the kitchen.
- External motor delivers near silent operation in the kitchen
- With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
- Powerful 1200m3/h maximum airflow
- Dimmable LED strip lighting illuminates the cooking surface beautifully
DIMENSIONS
Height 315mm
Width 830mm
Depth 280mm
FEATURES & BENEFITS
Near silent extraction
The powerful external motor is installed outside the home to deliver near silent extraction of cooking odours and steam from the kitchen.
Seamless integration
<>
<<Missing Feature Title>>
This rangehood features three fan speeds plus boost function, providing powerful extraction to quickly remove odours and steam. As odours can linger in the kitchen well after cooking is finished, the timer keeps the rangehood running before automatically turning off.
Full surface lighting
Low energy, dimmable LED lights provide superb illumination over the entire cooking surface.
Easy to use
This Fisher & Paykel rangehood features a sleek and easy to use touch-control panel.
Easy cleaning
<>
Considered efficiency
<>
SPECIFICATIONS
Accessories
Aluminium filter 792943
External motor kit 50170 HB 1200E* (included)
Extra ducting length 792961
Light bulb requires service to replace
Fan ratings
Maximum air movement 1200m³/hr
Speed 1 sound rating 34dBA
Installation and cleaning
Dishwasher safe filters 2
Ducted Top extraction
Performance
Extraction type Perimeter
Fan speeds 4
Number of filters 2
Power requirements
Supply frequency 50Hz
Supply voltage 240V
Product dimensions
Depth 280mm
Height 315mm
Width 830mm
Product information
Control type Capacitive touch
Ventilation features
Dimmable lights •
Filter cleaning alert •
Light type LED strip
Timer function •
Warranty
Parts and labour 2 years
SKU 50167
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User Guide Service & Warranty Installation Guide – External Blower Installation Guide – External Blower
