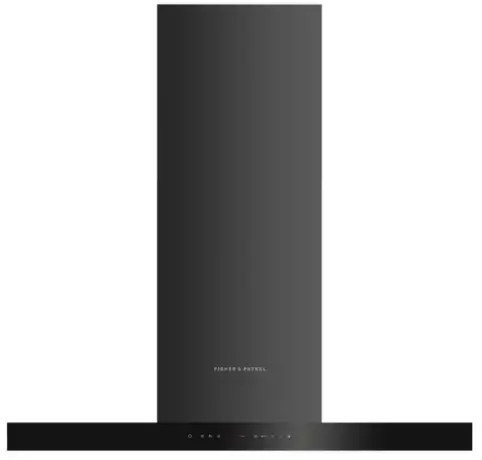

FISHER PAYKEL HC90DCBB4 Wall Rangehood
INTRODUCTION
This Contemporary style rangehood extracts steam, grease and cooking odours quietly and efficiently.
- With three fan speeds plus boost, select the perfect extraction rate for your cooking
- Powerful maximum air movement of 780m³/hr
- Energy-efficient LED lighting to illuminate your cooking surface
- Wi-Fi enabled for notifications through the SmartHQ™ app

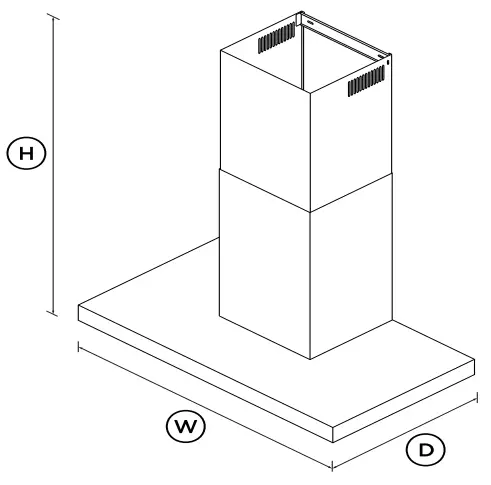

DIMENSIONS
| Height | 595-1035mm |
| Width | 898mm |
| Depth | 500mm |
FEATURES & BENEFITS
EFFECTIVE EXTRACTION
Featuring perimeter extraction, four fan speeds, and a boost function, this range hood provides powerful extraction to quickly remove odors and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.
SIMPLE CONTROLS
The intuitive control panel responds to the touch of your finger.
LED strip lighting illuminates the entire cooktop surface for the perfect sear or ideal reduction. Rang hood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting.
EASY CLEANING
Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your rangehood.
COMPLEMENTARY DESIGN
The brushed black stainless steel finish of this vent hood will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel kitchen appliance family.
EASY INSTALLATION
This rangehood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
SEAMLESS CONTROL
Connect this rangehood with an enabled Fisher & Paykel cooktop* via Bluetooth. This smart functionality lets your cooktop take control of this hood and automatically activates the hood fan and lights when the cooktop is turned on. Fan speed can also be adjusted based on cooktop power. *This functionality is only available on selected Fisher & Paykel cooktops.
DESIGNED TO MATCH
With the option of stainless steel or brushed black stainless steel, you can choose the perfect finish to match your Fisher & Paykel cooktop and achieve a coherent kitchen aesthetic.
SPECIFICATIONS
| Fan ratings | |
| Maximum air movement | 780m³/hr |
| Installation and cleaning | |
| Dishwasher safe filters | 3 |
| Ducted | Top extraction only |
| Recirculation | Optional – top extraction |
| Stainless steel filter cover | • |
| Two piece height adjustable | • |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
| Power requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Total Power | 248W |
| Product dimensions | |
| Depth | 500mm |
| Height | 595-1035mm |
| Width | 898mm |
| Product information | |
| Control type | Capacitive touch |
| Ventilation features | |
| Auto-off/Run-on timer | • |
| Bluetooth connectivity | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Timer function | • |
| Wi-Fi connectivity | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 50195 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
