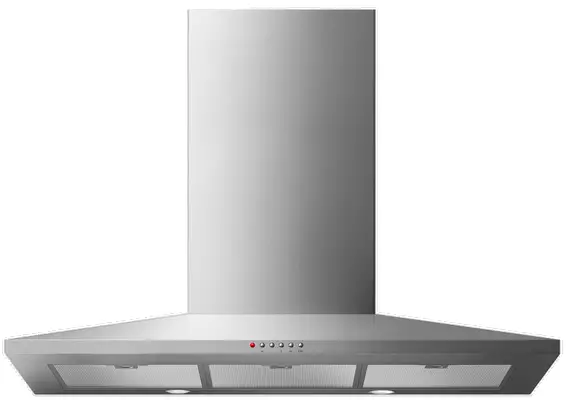

FISHER PAYKEL HC90PLX4 90cm Wall Rangehood
INTRODUCTION
The wall chimney rangehood has contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
- With three fan speeds, select the perfect extraction rate for your cooking
- Powerful maximum air movement of 780m³/hr
- Dishwasher safe filters that are easy to remove and clean

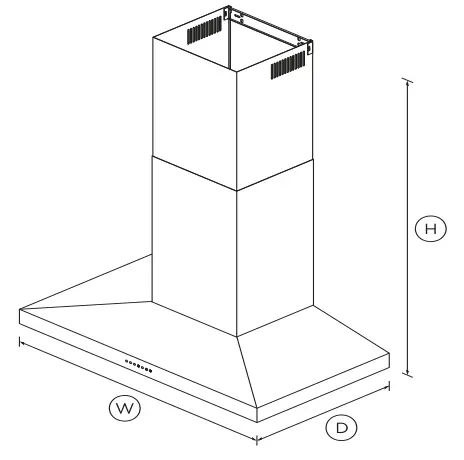

DIMENSIONS
- Height 610-1050mm
- Width 898mm
- Depth 500mm
FEATURES & BENEFITS
EASY INSTALLATION
This wall chimney rangehood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
SIMPLE TO USE
Three fan speeds provide powerful extraction to ensure steam and odours are quickly removed. Simply change the fan speed with the touch of a button.
EASY CLEANING
Three filters effectively trap grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
COMPLEMENTARY DESIGN
This wall chimney rangehood’s sleek stainless steel finish which will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
Accessories
| Aluminium filter | 792527 |
| Chimney extension | 792492 (Cover duct extension |
| Eave ducting kit | PD-RHK15OE |
| Light bulb | 792461 |
| Recirculation carbon filter | 792481 |
| Recirculation diverter | 791820 |
| Roof ducting kit | PD-RHK150T |
| Side wall ducting kit | PD-RHK15OW |
Fan ratings
| Maximum air movement | 780m³/hr |
| Maximum sound rating | 65dBA |
Installation and cleaning
| Dishwasher safe filters | 3 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Two piece height adjustable | • |
Performance
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
Power requirements
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 500mm |
| Height | 610-1050mm |
| Width | 898mm |
Product information
| Control type | Push Button |
Ventilation features
| Light type | LED |
Warranty
| Parts and labour | 2 years |
| SKU | 50007 |
This page’s product dimensions and specifications apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change anytime. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this pagecorrectly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
