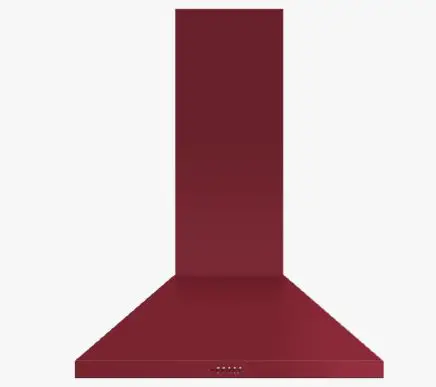

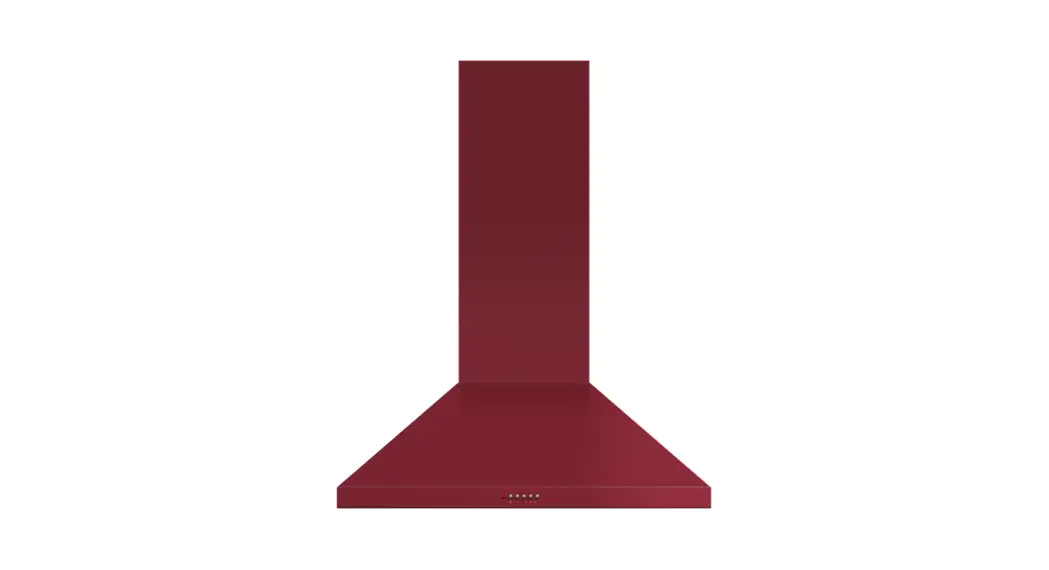

FISHER PAYKEL HC90PCR1 Wall Rangehood
Pairing well with the red Classic Freestanding Cooker, this wall chimney rangehood extracts steam and cooking odours effectively.
- With three fan speeds, select the perfect extraction rate for your cooking
- Dishwasher-safe filters that are easy to remove and clean
- Powerful 780m3/hr maximum airflow with edge-to-edge extraction
- Energy-efficient LED lighting to illuminate your cooktop
DIMENSIONS
- Height
- 636-975mm
- Width
- 898mm
- Depth
- 500mm
FEATURES & BENEFITS
Complementary Design
This wall chimney rangehood is designed to match the red Classic Freestanding Cooker in both colour and style, including stylish chrome touch buttons.
Cleaner air
Odors can linger in the kitchen well after cooking is finished. With three fan speeds and a maximum airflow of 780m3/hr, this rangehood removes cooking odours effectively, as well as grease and steam while cooking.
Intuitive controls
Classic-style chrome touch buttons are simple to use, giving you full control of your extraction.
Simple to clean
Three stainless steel filters are easy to remove, and can be cleaned in the dishwasher or washed by hand in hot soapy water.
Design quality
Made from quality stainless steel with an excellent finish and robust product design, this rangehood is both visually appealing and durable.
Considered efficiency
The extraction rate ensures interior air and climate is not excessively removed to the outside, while LED lighting on the rangehood has been chosen for energy efficiency.
EASY INSTALLATION
This wall chimney rangehood is the perfect partner to your Fisher & Paykel Cooktop or Freestanding Cooker. It can be either externally ducted or internally recirculated, for simple installation
SPECIFICATIONS
Accessories
| Aluminium filter | 792564 |
| Chimney extension | 793225 |
| Eave ducting kit | PD-RHK 150E |
| Light bulb | 792556 |
| Recirculation carbon filter | 792481 |
| Recirculation diverter | 792560 |
| Roof ducting kit | PD-RHK 150T |
| Side wall ducting kit | PD-RHK 150W |
Fan ratings
| Maximum air movement | 780m³/hr |
| Speed 3 sound rating | 65dBA |
Installation and cleaning
| Dishwasher safe filters | 3 |
| Ducted | Vertical only |
| Recirculation | Optional |
| Stainless steel filter cover | • |
| Two piece height adjustable | • |
Performance
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
Power requirements
| Lighting power | 8W |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 500mm |
| Height | 636-975mm |
| Width | 898mm |
Product information
| Control type | Classic style chrome touch |
Ventilation features
| Light type | LED |
Warranty
| Parts and labour | 2 years |
| SKU | 50155 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
