INSTALLATION INSTRUCTION
800 SERIES DOOR CLOSERS
NON HANDED DOOR CLOSER
Non Hold Open Models
Adjustable Size (1 Thru 6)
Manufacturing 800 Series Door Closers
READ AND FOLLOW INSTRUCTIONS CAREFULLY.
Incorrect installation or adjustment could cause damage or injury
CAUTION
An Incorrectly installed or improperly dusted door closer can cause property damager personal injury. The so install action instructions should be followed to avoid the possibility of misapplication or maladjustment.

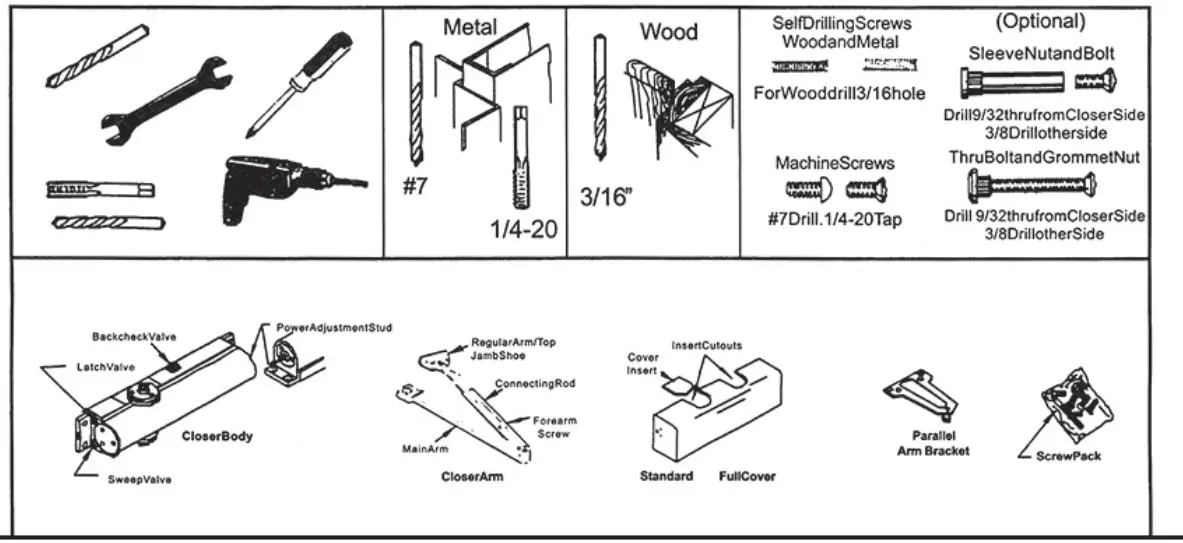

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
- Doors should be hung on ball bearing or Anti-friction hinges.
- A separate door stop is recommended.
- Door and frame must be properly reinforced.
- Adjust closing time speed between3and 7 seconds from90’to0°.Greater closing Times may be required for elderly or handicapped.
- These door closers should NOT be installed on the exposed side(weather side)of exterior doors.

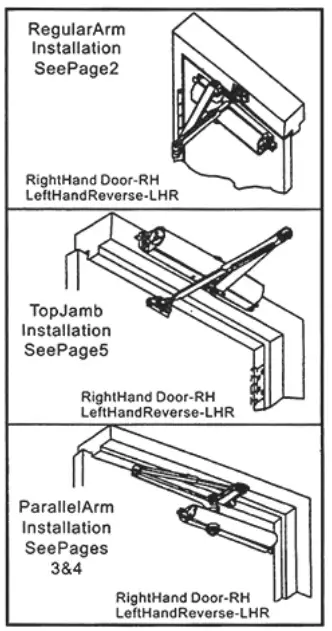

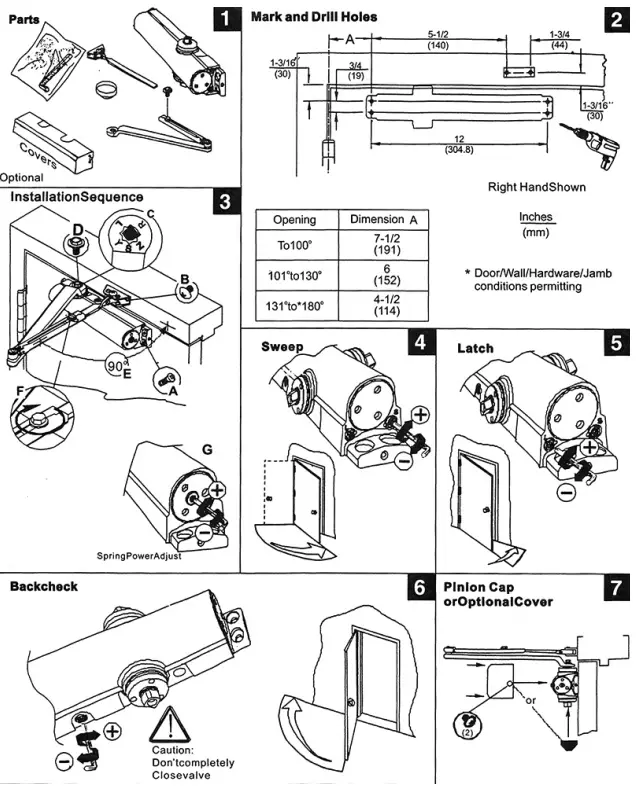

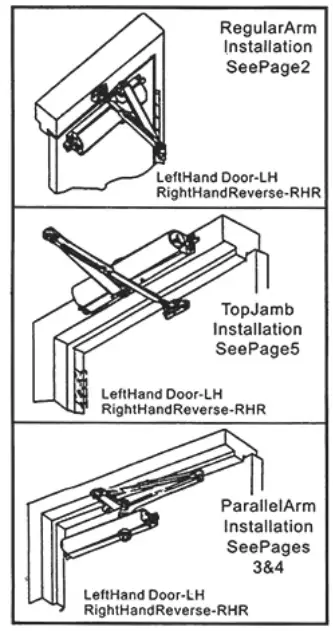

Non Hold Open Door Closer – Regular Arm

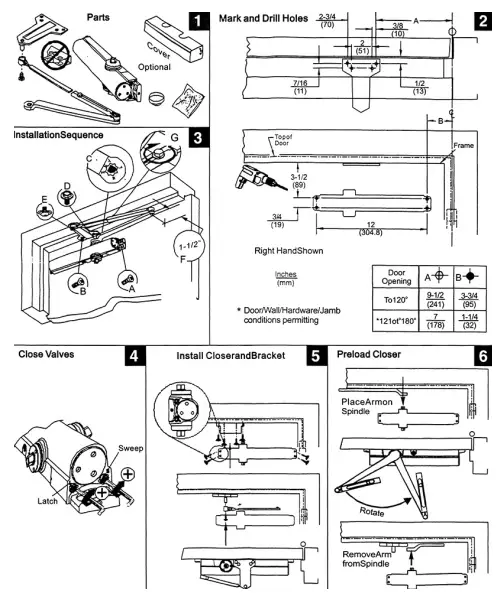

Non Hold Open Door Closer – Parallel Arm

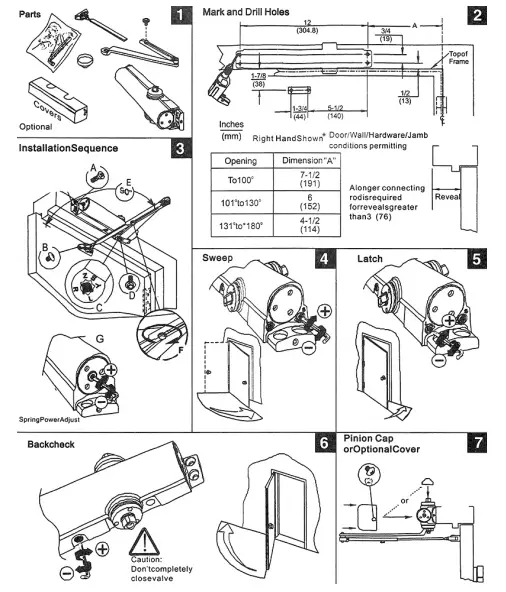

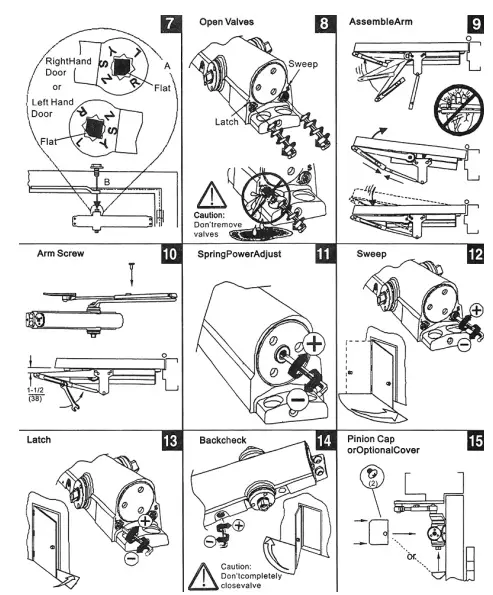

Non Hold Open Door Closer – Top Jamb Arm

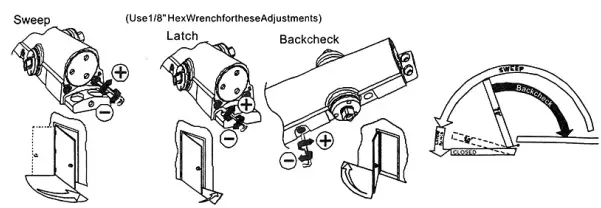

Adjustment Page

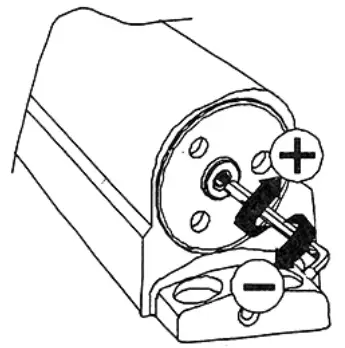

Spring Power Adjust
(Use1/8 Hex Wrenchforthis Adjustment)

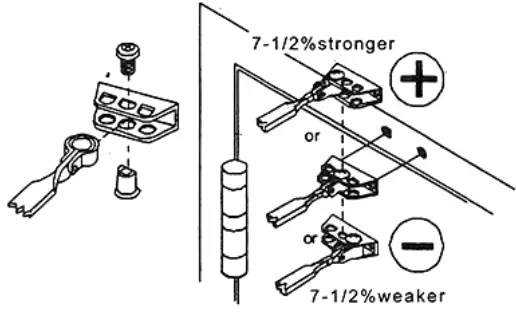

Arm placement Shoe
POWER ADJUSTMENT CHART
| MAXIMUM DOOR WIDTH | FULL TURNS REQUIRED | |
| EXTERIOR DOORS | INTERIOR DOORS | |
| – | 5lb-f | 5TURNS C.C.W. |
| 8.5lb. | 34″(864) | 3TURNS C.C.W. |
| 30(762) | 38″(962) | 0 TURNS |
| 36″(914) | 48″(1219) | 5 TURNS C.W. |
| 42″(1067) | 54(1372) | 10 TURNS C.W. |
| 48(1291) | 60″(1542) | 15 TURNS C.W. |
15 Full (360° ) turns maximum available Closer was set down as size 3 from the factory originally.
