AIT210
Amber Insight T210
GSM/GNSS/BLE Terminal
Quick Start Guide
Contents hide

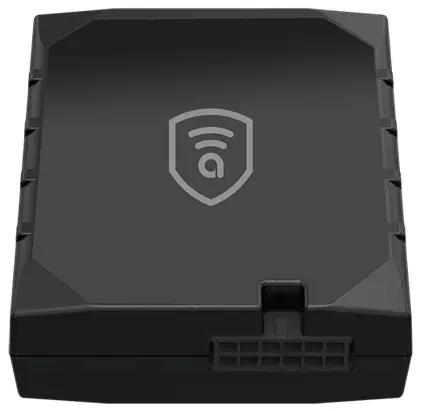

T210 Connect Devices and Features
- Install Your device
- Download Amber Connect App
- Activate the device

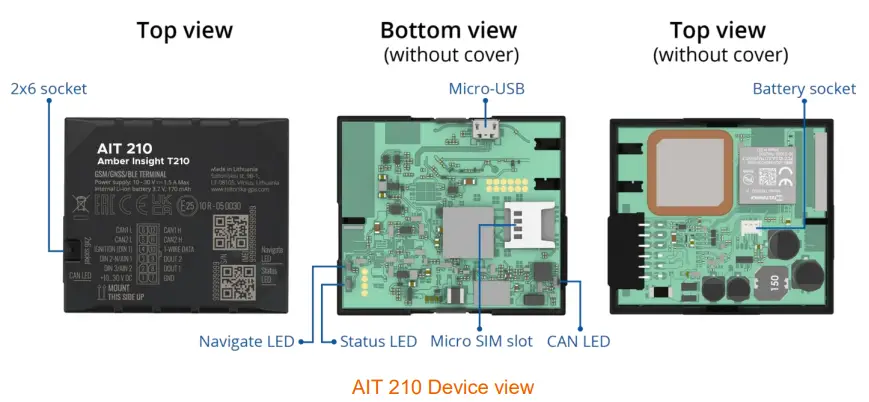

Know your device
Pinout
| Pin number | Pin name | Description |
| 1 | VCC (10-30) V DC (+) | Power supply (+10-30 V DC). |
| 2 | DIN 3 / AIN 2 | Analog input, channel 2. Input range: 0- 30 V DC / Digital input, channel 3. |
| 3 | DIN2-N / AIN1 | Digital input, channel 2 / Analog input, channel 2. Input range: 0-30 V DC /GND Sense input |
| 4 | DIN1 | Digital input, channel 1. |
| 5 | CAN2L | CAN LOW, 2nd line |
| 6 | CAN1L | CAN LOW, 1st line |
| 7 | GND (-) | Ground pin. (10-30) V DC (―) |
| 8 | DOUT 1 | Digital output, channel 1. Open collector output. Max. 0,5 A DC. |
| 9 | DOUT 2 | Digital output, channel 2. Open collector output. Max. 0,5 A DC. |
| 10 | 1WIRE DATA | Data for 1–Wire devices. |
| 11 | CAN2H | CAN HIGH, 2nd line |
| 12 | CAN1H | CAN HIGH, 1st line |

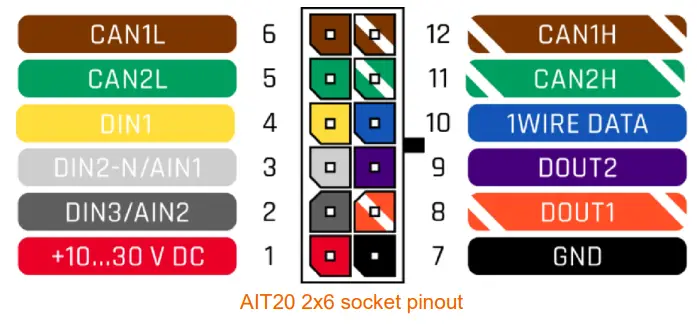

AIT 210 2×6 socket pinout

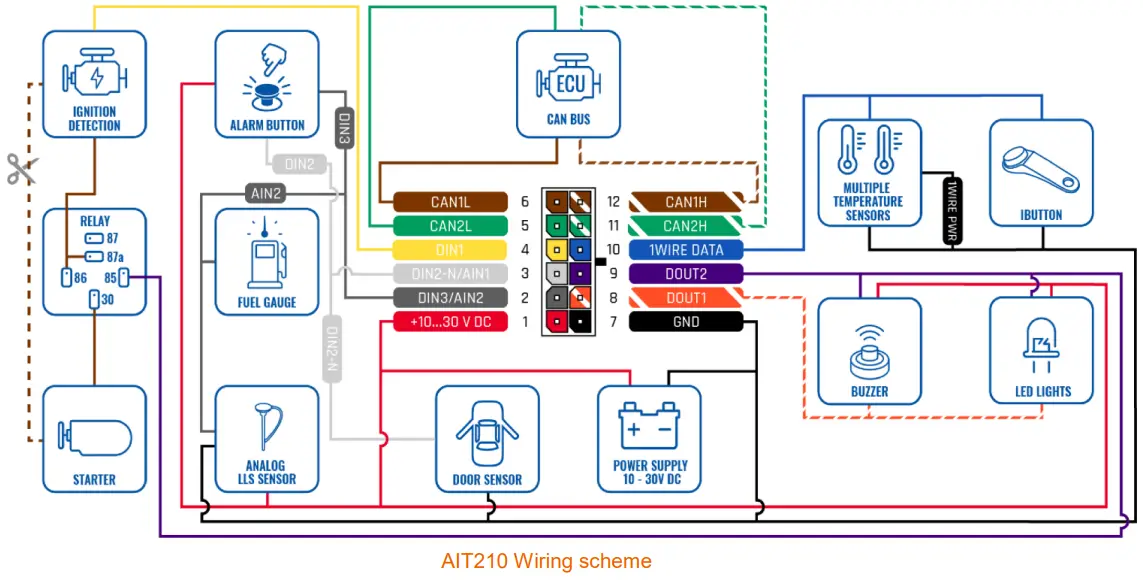

Wiring scheme
Set up your device

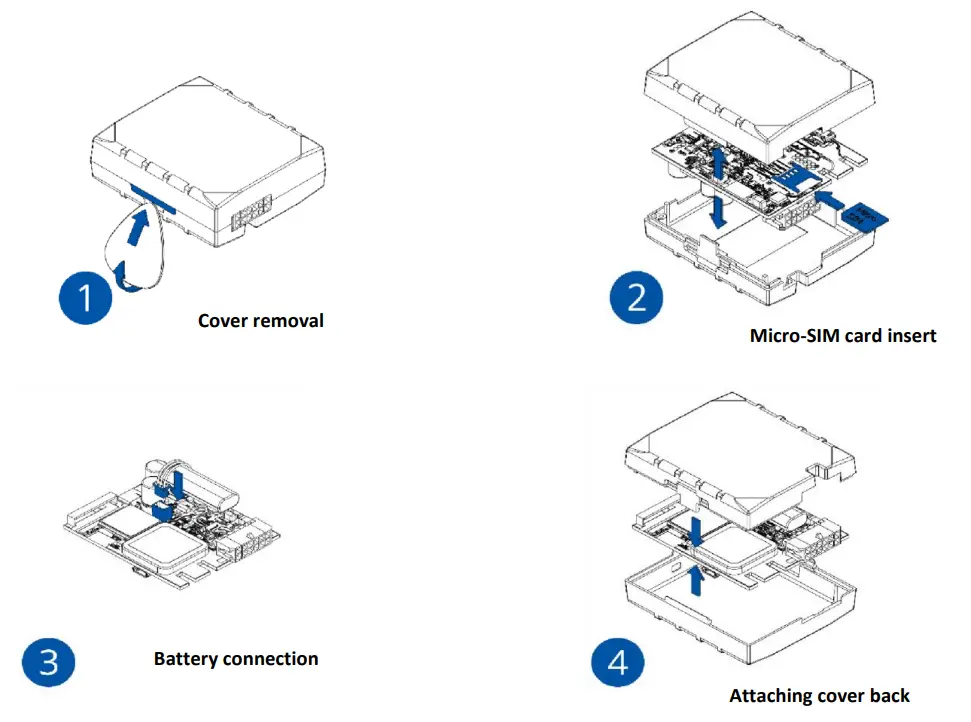

How to insert Micro-SIM card and connect the battery
- Gently remove AIT210 cover using plastic pry tool from both sides.
- Insert Micro-SIM card as shown with PIN request disabled or read our Wiki how to enter it later Amber Configurator. Make sure that Micro-SIM card cut-off corner is pointing forward to slot.
- Connect battery as shown to device. Position the battery in place where it does not obstruct other components.
- After configuration, see “PC Connection (Windows)”, attach device cover back.
Mounting recommendations
- Connecting wires
- Wires should be connected while the module is not plugged in.
- Wires should be fastened to stable wires or other non-moving parts. Any heat emitting and/or moving objects should be kept away from the wires.
- There should be no exposed wires. If factory isolation was removed while connecting the wires, the isolation material should be applied.
- If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied and the wires should not be loose.
- Wires cannot be connected to the board computers or control units.
- Connecting power source
- Be sure that after the car computer goes to sleep mode, power might be still available on the power wires. Depending on the car model, this may happen in 5 to 30 minutes period.
- When the module is connected, measure the voltage again to make sure it did not decrease.
- It is recommended to connect to the main power cable in the fuse box.
- 3 A, 125 V external fuse shall be used.
- Connecting ignition wire
- Be sure to check if it is a real ignition wire i. e. power does not disappear after starting the engine.
- Check if this is not an ACC wire (when key is in the first position, most of the vehicle electronics are available).
- Check if power is still available when you turn off any of vehicles devices.
- Ignition is connected to the ignition relay output. As alternative, any other relay, which has power output when ignition is on, may be chosen.
- Connecting ground wire
- Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
- If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
- For better contact scrub paint from the spot where loop is going to be connected.
LED indications
Navigation LED indications
| Behaviour | Meaning |
| Permanently switched on | GNSS signal is not received |
| Blinking every second | Normal mode, GNSS is working |
| Off | GNSS is turned off because: Device is not working or Device is in sleep mode |
| Blinking fast constantly | Device firmware is being flashed |
Status LED indications
| Behaviour | Meaning |
| Blinking every second | Normal mode |
| Blinking every two seconds | Sleep mode |
| Blinking fast for a short time | Modem activity |
| Off | Device is not working or Device is in boot mode |
Can Status LED indications
| Behaviour | Meaning |
| Blinking fast constantly | Reading CAN data from vehicle |
| Permanently switched on | Wrong program number or wrong wire connection |
| Off | Wrong connection or CAN processor in sleep mode |
Characteristics
Basic characteristics
| Module | |
| Name | AIT 210 |
| Technology | GSM, GPRS, GNSS, BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 |
| Tracking sensitivity | 165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| GSM | GSM |
| 2G bands | Quad-band 850/900/1800/1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10-30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Internal fuse | 3 A, 125 V |
| Power consumption | At 12V < 6 mA (Ultra Deep Sleep) At 12V < 8 mA (Deep Sleep) At 12V < 11 mA (Online Deep Sleep) At 12V < 20 mA (GPS Sleep) At 12V < 35 mA (nominal with no load) At 12V < 1.5 A Max. (with full Load / Peak) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| Interface | |
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital input 2) |
| Digital Outputs | 2 |
| Analog Inputs | 2 |
| CAN interfaces | 2 |
| 1-Wire | 1 (1-Wire data) |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 3 status LED lights |
| SIM | Micro-SIM + eSIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 65 x 56.6 x 20.6 mm (L x W x H) |
| Weight | 55 g |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| CAN Data | Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Amber Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine |
Electrical characteristics
| Characteristic description | Value | |||
| Min. | Typ. | Max. | Unit | |
| Supply Voltage | ||||
| Supply Voltage (Recommended Operating Conditions) | +10 | +30 | V | |
| Digital Output (Open Drain grade) | ||||
| Drain current (Digital Output OFF) | 120 | μA | ||
| Drain current (Digital Output ON, Recommended Operating Conditions) | 0.1 | 0.5 | A | |
| Static Drain-Source resistance (Digital Output ON) | 400 | 600 | mΩ | |
| Digital Input | ||||
| Input resistance (DIN1) | 47 | kΩ | ||
| Input resistance (DIN2) | 38.45 | kΩ | ||
| Input resistance (DIN3) | 150 | kΩ | ||
| Input voltage (Recommended Operating Conditions) | 0 | Supply voltage | V | |
| Input Voltage threshold (DIN1) | 7.5 | V | ||
| Input Voltage threshold (DIN2) | 2.5 | V | ||
| Input Voltage threshold (DIN3) | 2.5 | V | ||
| Analog Input | ||||
| Input voltage (Recommended Operating Conditions), Range 1 | 0 | +10 | V | |
| Input resistance, Range 1 | 38.45 | kΩ | ||
| Measurement error on 12V, Range 1 | 0.9 | % | ||
| Additional error on 12 V, Range 1 | 108 | mV | ||
| Measurement error on 30 V, Range 1 | 0.33 | % | ||
| Additional error on 30 V, Range 1 | 88 | mV | ||
| Input Voltage (Recommended Operating Conditions), Range 2 | 0 | +30 | V | |
| Input resistance, Range 2 | 150 | kΩ | ||
| Measurement error on 12 V, Range 2 | 0.9 | % | ||
| Additional error on 12 V, Range 2 | 108 | mV | ||
| Measurement error on 30 V, Range 2 | 0.33 | % | ||
| Additional error on 30 V, Range 2 | 88 | mV | ||
| Output Supply Voltage 1-Wire | ||||
| Supply voltage | +4.5 | +4.7 | V | |
| Output inner resistance | 7 | Ω | ||
| Output current (Uout > 3.0 V) | 30 | mA | ||
| Short circuit current (Uout = 0) | 75 | mA | ||
| NEGATIVE INPUT | ||||
| Input resistance | 38.45 | kΩ | ||
| Input voltage (Recommended Operating Conditions) | 0 | Supply voltage | V | |
| Input voltage threshold | 0.5 | V | ||
| Sink current | 180 | nA | ||
| CAN Interface | ||||
| Internal terminal resistors CAN bus (no | Ω | |||
| internal termination resistors) | ||||
| Differential input resistance | 19 | 30 | 52 | kΩ |
| Recessive output voltage | 2 | 2.5 | 3 | V |
| Differential receiver threshold voltage | 0.5 | 0.7 | 0.9 | V |
| Common mode input voltage | -30 | 30 | V |
Safety information
This message contains information on how to operate AIT 210 safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device!
- The device uses SELV limited power source. The nominal voltage is +12 V DC. The allowed voltage range is +10…+30 V DC.
- To avoid mechanical damage, it is advised to transport the device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are visible. They show the status of device operation.
- When connecting the 2×6 connector wires to the vehicle, the appropriate jumpers of the vehicle power supply should be disconnected.
- Before un mounting the device from the vehicle, the 2×6 connector must be disconnected. The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 62368-1 standard. The device AIT 210 is not designed as a navigational device for boats.
 | Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply. |
| All wireless data transferring devices produce interference that may affect other devices which are placed nearby. |
 | The device must be connected only by qualified personnel. |
 | The device must be firmly fastened in a predefined location. |
| The programming must be performed using a PC with autonomic power supply. |
 | Installation and/or handling during a lightning storm is prohibited. |
 | The device is susceptible to water and humidity. |
| CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. |
Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose them to battery recycle bin found in stores.
Certification and Approvals
- AIT 210 CE / RED
- AIT 210 E-Mark
- AIT 210 EAC
- AIT 210 RoHS
- AIT 210 REACH
- AIT 210 Declaration of IMEI assignment
 | This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki. |
| This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste. |
 | Hereby, Amber declare under our sole responsibility that the above described product is in conformity with the relevant Community harmonization: European Directive 2014/53/EU (RED). |
Warranty
Amber connect guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager.
All batteries carry a reduced 6 month warranty period.
If a product should fail within this specific warranty time, the product can be:
- Repaired
- Replaced with a new product
- Replaced with an equivalent repaired product fulfilling the same functionality
- Amber can also repair products that are out of warranty at an agreed cost.
Warranty Disclaimer
Amber products are intended to be used by persons with training and experience. Any other use renders the limited warranties expressed herein and all implied warranties null and void and same are hereby excluded. also excluded from this limited warranty are any and all incidental or consequential damages including but not limited to, loss of use or revenue, loss of time, inconvenience or any other economic loss.
