Amber Connect Acc410-e Gnss Vehicle Terminal User Guide

connect ACC410-E GNSS Vehicle Terminal
User Guide

Quick Start Guide
ACC410-E/LA
Amber Covert C410-E/LA
GNSS Vehicle Terminal

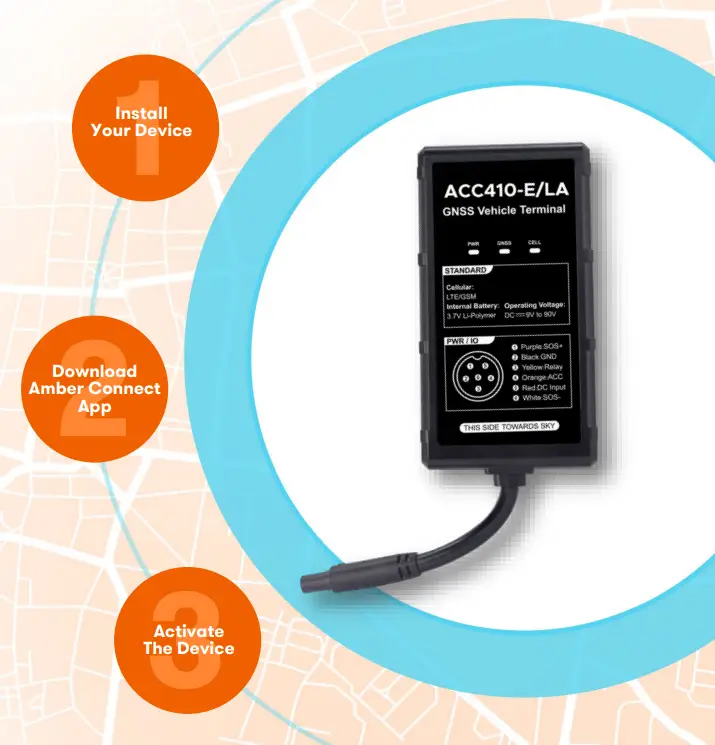

Product overview

• Real-time tracking
• Driving behavior analysis (4 types) Serial port (optional)
• Over-speed alert
• SOS alert
• Tamper alert
• Removal alert
• Power-supply-cut alert
• Low power alert
• Vibration alert
• Geo-fence

Standard Parts List

Specification

Product setup

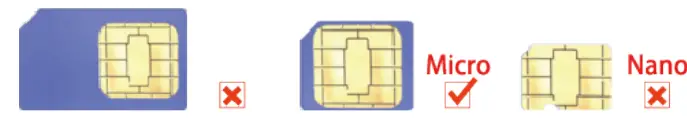

1. Prepare a micro SIM card that supports the same network with this device

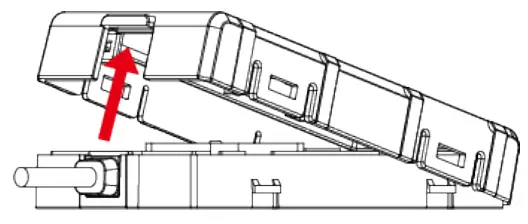

2. Remove the upper cover of the device.

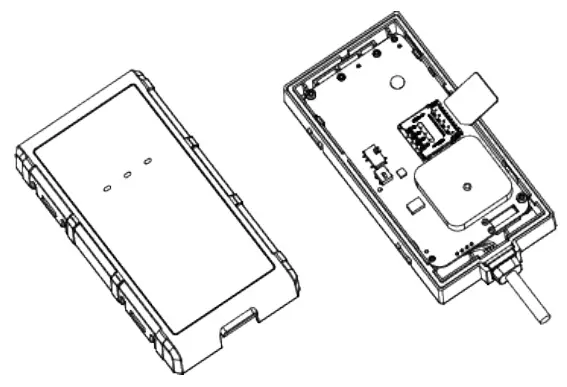

3. Insert the SIM card into the slot and toggle the switch to ON

4. To ensure waterproof takes effect, make sure the silicon rubber ring is installed in place.

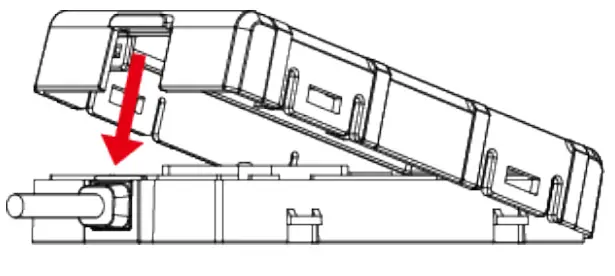

5. Press the upper case down and make sure all 5 clips are completely in place

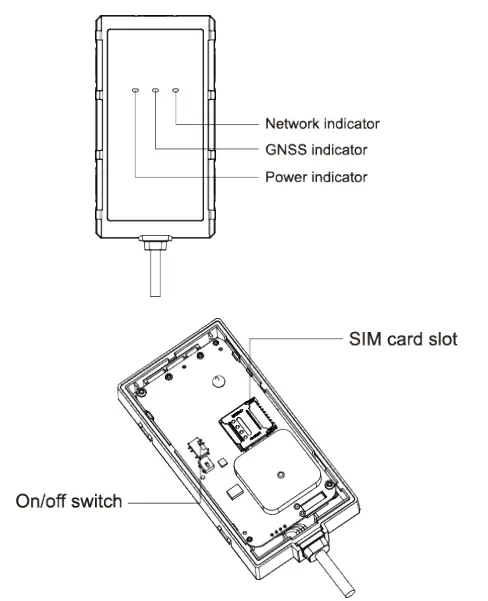

LED indications

Power Status (Red)

GNSS Status (Blue)

Cellular Status (Green)

Power supply Status (Red, Blue, Green)

Interfaces

6 Pin Standard Version

6 Pin RS485/TTL Version (Optional)

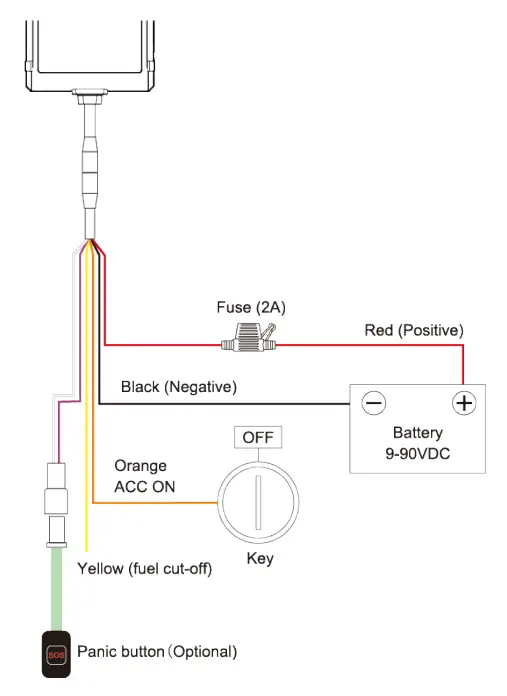

Wiring of Standard Version

Tips for finding the right wires:

1. Use a multi-meter to find out the positive and negative sides of the vehicle battery. Note: No matter whether the ignition key is switched to ON or OFF, the current battery voltage can be shown in the multi-meter.
2. The way to find ACC wire: Connect multi meter’s black probe lo the negative side, and connect the red probe to a random wire, at this moment, the voltage shown in the multimeter is 0V; turn the key to ON, if the supply voltage is shown, that’s the correct ACC wire.
3. Connect the two connectors together, if the vehicle has no connector, please connect the device’s wires to the corresponding vehicle wires.

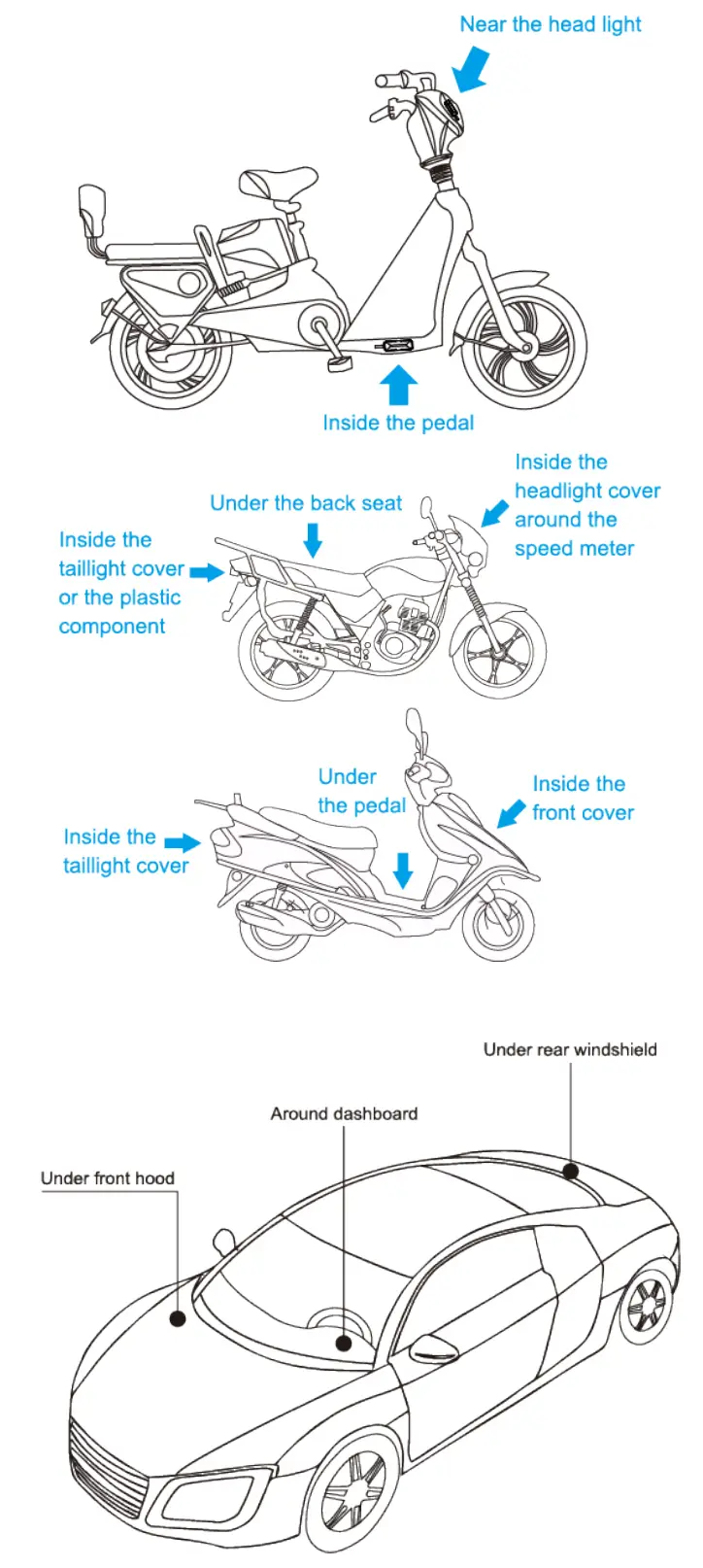

Installation recommendation

Please install the device under the guidance of professional personnel.
Note:

1. The device should face up to the sky.
2. Metal thermal barrier or heating layer, which are always installed on the windshield, may affect the signal, please avoid installing the device under these objects.

Platform & APP

1. Login service platform Please login to the designated service platform to set and operate the device.
2. Download APP Please download and install the APP on the designated website, APP store or Google Play store.

Troubleshooting

Warranty instructions

1. The warranty is valid only when the warranty card is properly completed and upon presentation of the proof of purchase consisting of the original invoice indicating the date of purchase, model, and serial No. of the product. We reserve the right to refuse a warranty if this information has been removed or changed after the original purchase of the product from the dealer.
2. Our obligations are limited to repair of the defect or replacement of the defective part or at its discretion replacement of the product itself.
3.  Warranty repairs must be carried out by our Authorized Service Centre. Warranty cover will be void, even if a repair has been attempted by any unauthorized service center.
4. Repair or replacement under the terms of this warranty does not provide the right to extension or renewal of the warranty period.
5. The warranty is not applicable to cases other than defects in material, design and workmanship
