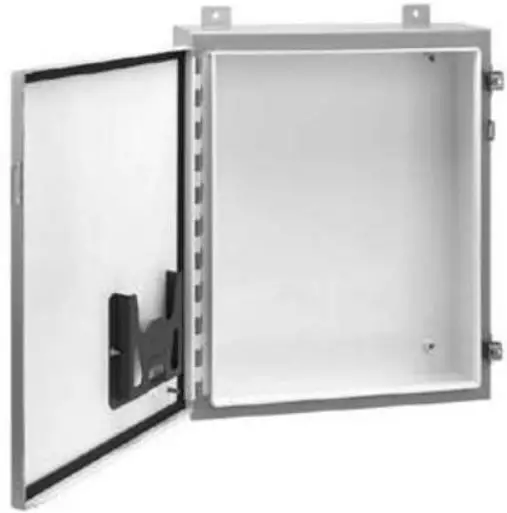

nVent HOFFMAN UU5040SP ULTRX Swing Out Panel Fits

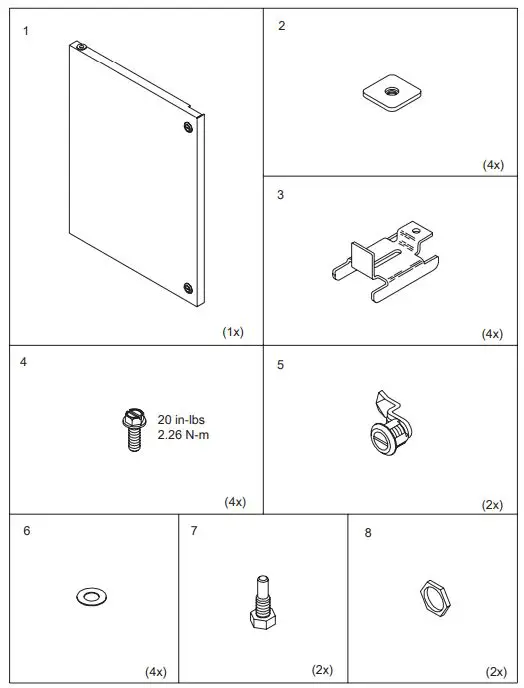

Parts
- Place rubber bumpers onto brackets.
- Mount brackets to enclosure rails.

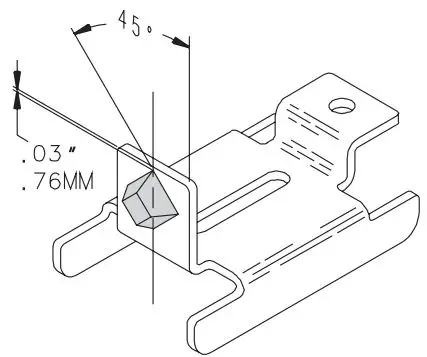

- Assemble latch assemblies; orient as shown.
- Mount pivot pins. Do not tighten top pin until panel is positioned onto the brackets.
- Assemble panel to brackets; use spacers to center panel vertically; tighten top pivot pin.
- Position and adjust panel to desired location inside the enclosure; tighten all screws to 20 in-Ibs.
NOTE: Panel may be hinged from either side.

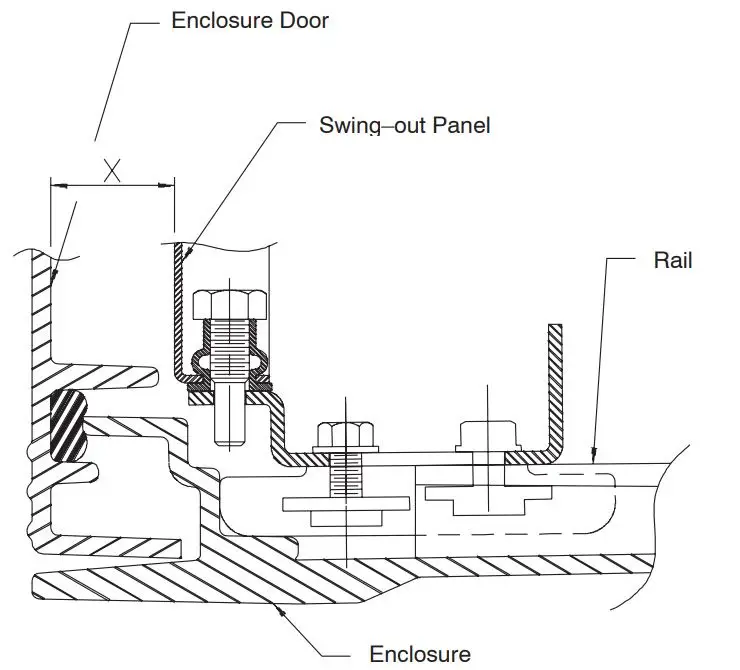

Installation Instructions
| Enclosure | X | X |
| Minimum | Maximum | |
| 20x16x8 | .98in / 24.9mm | 4.28in / 108.7mm |
| 20x16x12 | .98in / 24.9mm | 8.28in / 210.3mm |
| 24x20x10 | .98in / 24.9mm | 6.28in / 159.5mm |
| 24x24x8 | .98in / 24.9mm | 4.28in / 108.7mm |
| 24x24x12 | .98in / 24.9mm | 8.28in / 210.3mm |
| 30x24x12 | .98in / 24.9mm | 8.28in / 210.3mm |
| 40x32x12 | .98in / 24.9mm | 8.28in / 210.3mm |
