nVent HOFFMAN PPV32B Air Inlet Grille Instruction Manual

Air Inlet Grille

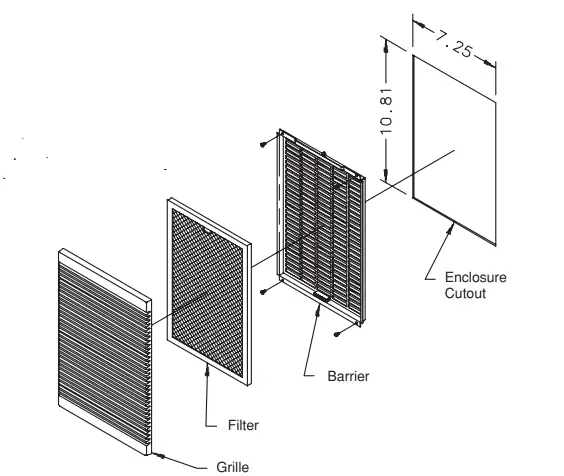

1. Make 7.25 x 10.81 inch cutout into enclosure as shown.
2. Using the barrier as a template, position barrier (top first) into cutout, offset flange to the top, and finally, drill four (4) .110 inch diameter holes into enclosure.
3. Fasten barrier into position using the four (4) #6–32, self–tapping screws.
4. Place filter into barrier.
5.  Hook grille on top flange of barrier and pivot down into secured position.
