SOLTEK COMPUTER, INC.
SL-67EB

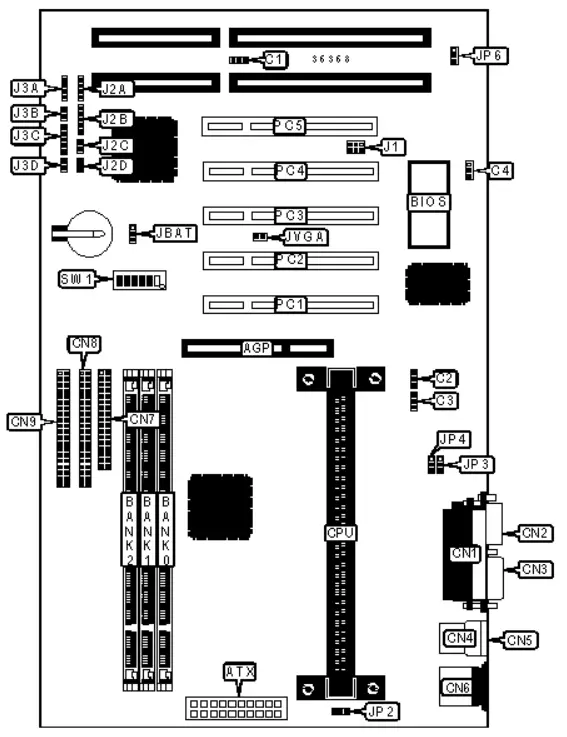

SL-67EB Mainboard
| Device Type | Mainboard |
| Processor | Pentium II/Celeron |
| Processor Speed | 233/266/300/333/350/400/450/500MHz |
| Chip Set | Intel 440BX |
| Maximum Onboard Memory | 768MB (SDRAM & PC100 supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 170mm |
| I/O Options | 32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, SB-link connector, wake on LAN connector |
CONNECTIONS | |||
| Purpose | Purpose | Purpose | Location |
| AGP slot | AGP slot | IDE interface 2 | CN8 |
| ATX power connector | ATX power connector | IDE interface 1 | CN9 |
| Power fan power | C1 | SB-link connector | J1 |
| CPU fan power | C2 | IDE interface LED | J2A |
| Chassis fan power | C3 | IR connector | J2B |
| Wake on LAN connector | C4 | Soft off power supply | J2C |
| Parallel port | CN1 | Green PC connector | J2D |
| Serial port 2 | CN2 | Speaker | J3A |
| Serial port 1 | CN3 | Reset switch | J3B |
| USB connector 1 | CN4 | Power LED & keylock | J3C |
| USB connector 2 | CN5 | Green PC LED | J3D |
| PS/2 mouse port | CN6 | 32-bit PCI slots | PC1 |
| Floppy drive interface | CN7 | ||
| USER CONFIGURABLE SETTINGS | |||
| Function | Label | Position | |
| » | CMOS memory normal operation | JBAT | Pins 1 & 2 closed |
| CMOS memory clear | JBAT | Pins 2 & 3 closed | |
| » | Keyboard power on disabled | JP2 | Pins 1 & 2 closed |
| Keyboard power on enabled | JP2 | Pins 2 & 3 closed | |
| » | Power lost recovery normal operation | JP6 | Pins 2 & 3 closed |
| Power lost recovery normal enabled | JP6 | Pins 1 & 2 closed | |
| » | Normal VGA card installed | JVGA | Closed |
| Special VGA card installed | JVGA | Open | |
| DIMM CONFIGURA | |||
| Size | Bank 0 | Bank 1 | Bank 2 |
| 8MB | (1) 1M x 64 | None | None |
| 16MB | (1) 2M x 64 | None | None |
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None |
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None |
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 32MB | (1) 4M x 64 | None | None |
| 32MB | (1) 2M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None |
| 40MB | (1) 2M x 64 | (1) 2M x 64 | (1) 1M x 64 |
| 48MB | (1) 4M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 56MB | (1) 4M x 64 | (1) 2M x 64 | (1) 1M x 64 |
| 64MB | (1) 8M x 64 | None | None |
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
| 72MB | (1) 8M x 64 | (1) 1M x 64 | None |
| 72MB | (1) 4M x 64 | (1) 4M x 64 | (1) 1M x 64 |
| 80MB | (1) 8M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| Size | Bank 0 | Bank 1 | Bank 2 |
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
| 88MB | (1) 8M x 64 | (1) 2M x 64 | (1) 1M x 64 |
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
| 104MB | (1) 8M x 64 | (1) 4M x 64 | (1) 1M x 64 |
| 112MB | (1) 8M x 64 | (1) 4M x 64 | (1) 2M x 64 |
| 128MB | (1) 16M x 64 | None | None |
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
| 136MB | (1) 16M x 64 | (1) 1M x 64 | None |
| 136MB | (1) 8M x 64 | (1) 8M x 64 | (1) 1M x 64 |
| 144MB | (1) 16M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
| 152MB | (1) 16M x 64 | (1) 2M x 64 | (1) 1M x 64 |
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
| 168MB | (1) 16M x 64 | (1) 4M x 64 | (1) 1M x 64 |
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
| 200MB | (1) 16M x 64 | (1) 8M x 64 | (1) 1M x 64 |
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
| 256MB | (1) 32M x 64 | None | None |
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
| 264MB | (1) 32M x 64 | (1) 1M x 64 | None |
| 272MB | (1) 32M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 272MB | (1) 32M x 64 | (1) 2M x 64 | None |
| 288MB | (1) 32M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 288MB | (1) 32M x 64 | (1) 4M x 64 | None |
| 320MB | (1) 32M x 64 | (1) 4M x 64 | (1) 4M x 64 |
| 320MB | (1) 32M x 64 | (1) 8M x 64 | None |
| 384MB | (1) 32M x 64 | (1) 8M x 64 | (1) 8M x 64 |
| 384MB | (1) 32M x 64 | (1) 16M x 64 | None |
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
| 512MB | (1) 32M x 64 | (1) 16M x 64 | (1) 16M x 64 |
| 512MB | (1) 32M x 64 | (1) 32M x 64 | None |
| 768MB | (1) 32M x 64 | (1) 32M x 64 | (1) 32M x 64 |
| Note: Board accepts SDRAM & PC100 memory. | |||
| CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU. |
CPU SPEED SELECTION
| CPU speed | Clock speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 233MHz | 66MHz | 3.5x | On | Off | Off | On | Off | On |
| 266MHz | 66MHz | 4x | Off | On | On | On | Off | On |
| 300MHz | 66MHz | 4.5x | Off | On | Off | On | Off | On |
| 333MHz | 66MHz | 5x | Off | Off | On | On | Off | On |
| 350MHz | 100MHz | 3.5x | On | Off | Off | On | Off | On |
| 400MHz | 100MHz | 4x | Off | On | On | On | Off | On |
| 450MHz | 100MHz | 4.5x | Off | On | Off | On | Off | On |
| 500MHz | 100MHz | 5x | Off | Off | On | On | Off | On |
USB SELECTION
| Setting | JP3 | JP4 | |
| → | Redirect USB1 to AGP port | Pins 1 & 2 closed | Pins 1 & 2 closed |
| Redirect all USB ports to USB connector | Pins 2 & 3 closed | Pins 2 & 3 closed | |
