Solton Rb 82 System 1 Instruction Manual

SOLTON RB 82 System 1

ABOUT

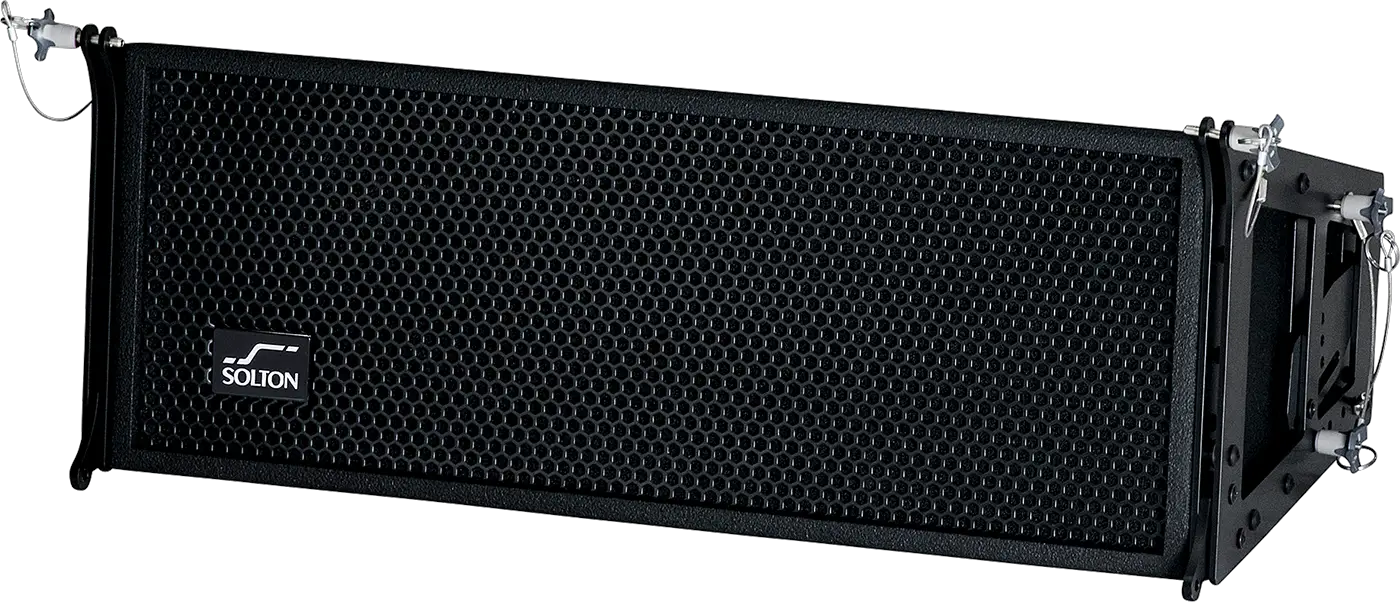

The RB 82 is a 2-way, full range line array cabinet that combines superior sound quality with easiness and flexibility in a simple system. With a 100°H x 10°V nominal dispersion pattern it combines high output capability with excellent sound performance in a compact enclosure, made of 15 mm birh plywood. It features two powerful 8” drive units for the mid-bass range, and one low-distortion Ribbon horn driver for extended high frequency response. An advanced passive crossover, with PTC driver protection, matches the components working perfectly together. Angle adjustment from 0° to 12° between each cabinet. The RB 82 vertical line array element is suited to a wide variety of mobile and installed applications where a flexible and easy to use vertical array systems is needed.

Key features

• High output Line Array element.
• High quality, low compression, low distortion HF drivers
• Very stable horizontal coverage
• Passive operation
• Advanced crossover with HF protection
• Angle adjustment from 0° to 12° between each cabinet.
• Stacked operation possible
• Fast integral flying system for up to 16 enclosures
• Compact size, very good output/weight ratio

Application

• Theaters
• Sport facilities with reasonable speaker quantity
• Entertainment Venues
• Clubs
• Corporate AV events
• Contemporary churches

Recommended with

• Subs:
  A 218 Sub, A 18/1000
• Amps:
  DX4, QX 2400
• Controller:
  DSP 206 N

Specification

For more informations please check our webside or contact us.

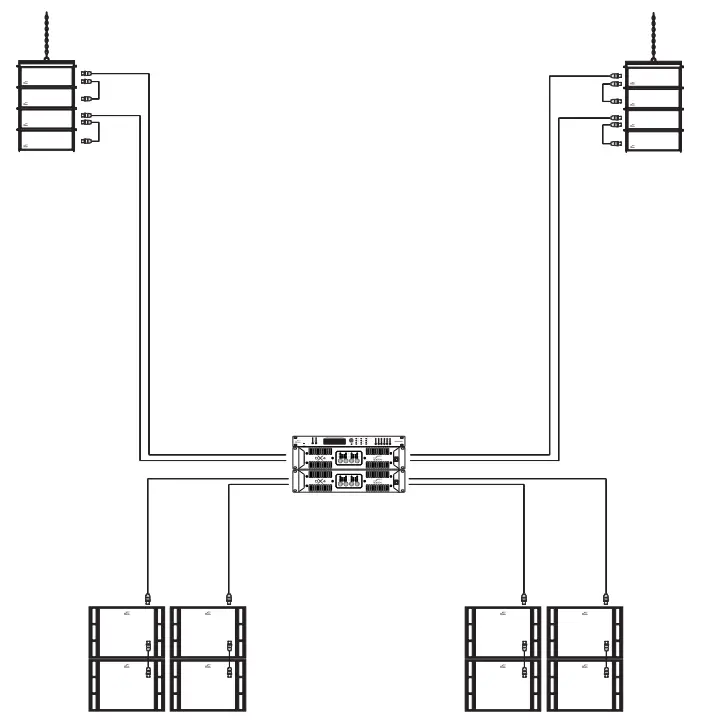

SYSTEM 1

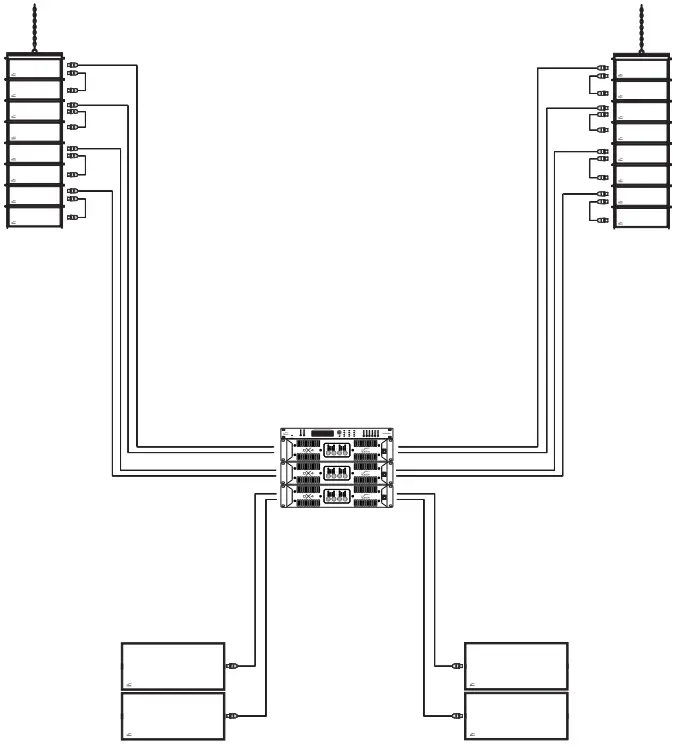

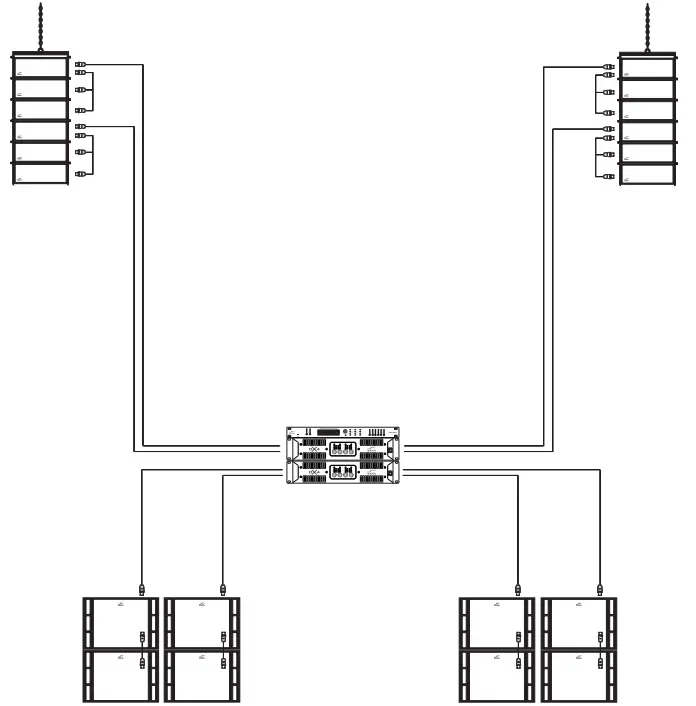

SYSTEM 2

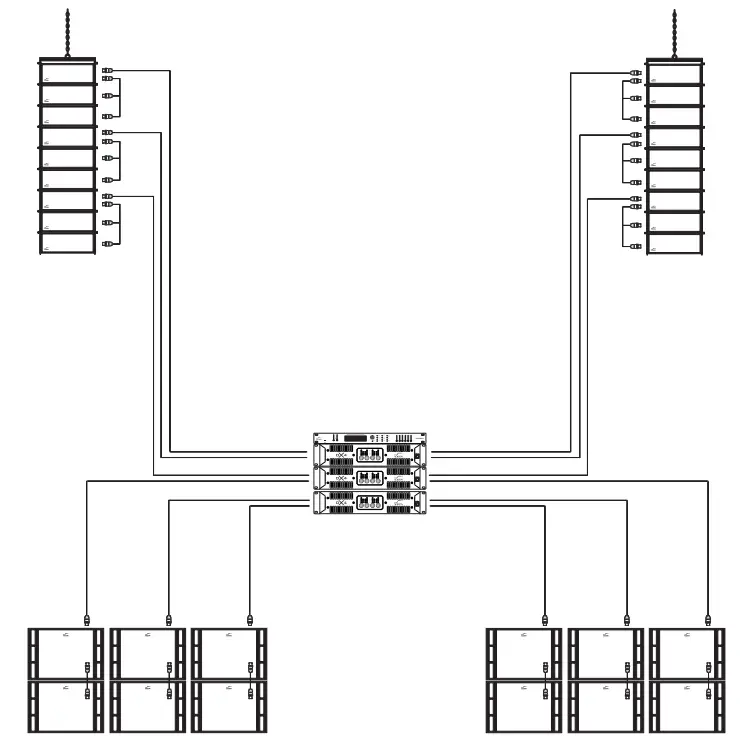

SYSTEM 3

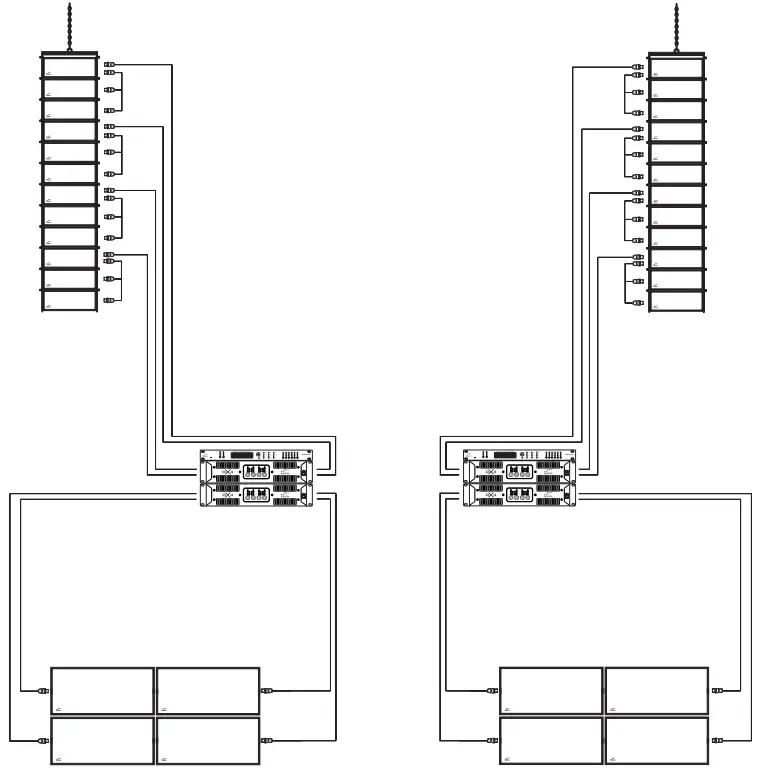

SYSTEM 4

SYSTEM 5

SOLTON Acoustic GmbH & Co KG | Oberer Mühlweg 6 | Pocking/Rottau | GERMANY
www.solton.de
