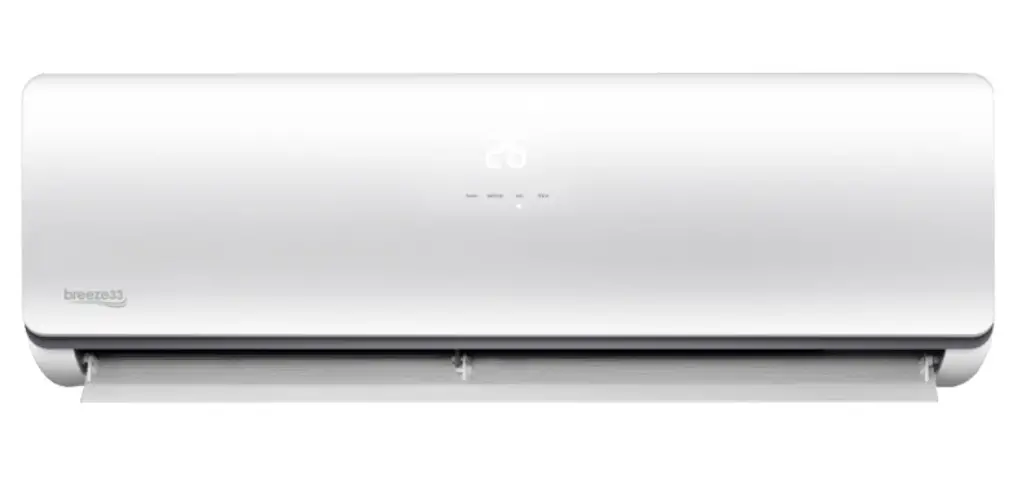

breeze33 BZ33-HYP18WALL2-G2-P 18,000 BTU Indoor Multi Zone Hyper Pro Unit
REPLACEMENT PARTS GUIDE
FACTORY CODE: 22022011016461
BZ33-HYP18WALL2-G2-P

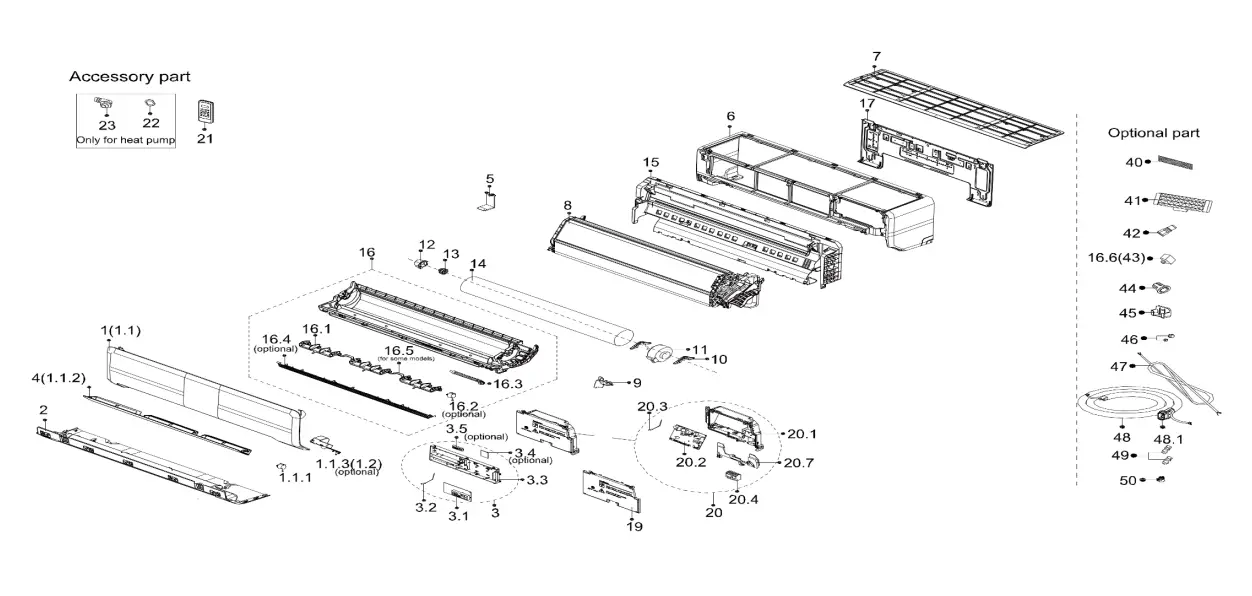

Part # Replacement Part Part Name Qty Part # Replacement Part Part Name Qty
| 1 | 12122000A87626 | Panel assembly | 1 | 16 | 12122000027682 | Chassis assembly (below) | 1 | |
| 1.1 | 12122000A83215 | Panel assembly | 1 | 16.1 | 12122000026617 | Horizontal louver | 6 | |
| 1.1.1 | 11002010001446 | Stepper motor | 1 | 16.1 | 12122000026616 | Horizontal louver | 6 | |
| 1.1.2 | 12122000027035 | Horizontal louver | 1 | 16.2 | 11002010001486 | Stepper motor | 1 | |
| 1.2 | 17422000004555 | Smart eye subassembly | 1 | 16.3 | 12100501000032 | Drain hose | 1 | |
| 2 | 12122000A83310 | Panel assembly | 1 | 16.5 | 12122000027024 | Connecting rod of louver | 1 | |
| 3 | 17222000A60970 | Display box subassembly | 1 | 17 | 12222000A06971 | Installation plate subassembly | 1 | |
| 3.1 | 17122000049837 | Display board subassembly | 1 | 19 | 12122000026601 | Cover of electronic control box subassembly | 1 | |
| 3.2 | 11201007003103 | Room Temperature Sensor | 1 | 20 | 17222000033440 | Electronic control box subassembly (mid & low-end) | 1 | |
| 3.3 | 12122000026921 | Display box | 1 | 20.1 | 12122000026606 | Electronic control box subassembly | 1 | |
| 3.4 | 17120100000394 | Humidity sensor subassembly | 1 | 20.2 | 17122000051062 | Main control board subassembly | 1 | |
| 5 | 12122000026621 | Chassis support | 1 | 20.3 | 11201007003445 | Pipe temperature sensor | 1 | |
| 6 | 12122000A83289 | Panel frame assembly | 1 | 20.4 | 17400401000577 | Wire joint | 1 | |
| 7 | 12122000027040 | Filter filter subassembly | 1 | 20.7 | 12122000026605 | Electrical control box holder | 1 | |
| 8 | 15822000A18563 | Evaporator assembly | 1 | 21 | 17317000A64073 | Remote controller | 1 | |
| 9 | 12122000027026 | Pipe clamp board | 1 | 22 | 12600701000039 | Seal ring | 1 | |
| 10 | 12122000011994 | Fixing board of fan motor | 2 | 23 | 12100509000061 | Drain hose | 1 | |
| 11 | 11002015011867 | Brushless DC motor | 1 | 40 | 12100204000685 | Air freshening filter | 1 | |
| 12 | 12122000000350 | Bearing holder | 1 | 42 | 15500209000001 | Check valve | 1 | |
| 13 | 12622000000131 | Bearing components | 1 | 45 | 12122000029201 | Bracket of remote controller | 1 | |
| 14 | 12100102000131 | Cross flow fan | 1 | 46 | 15500406000012 | Copper nut | 1 | |
| 15 | 12122000027029 | Chassis assembly (above) | 1 | 46 | 15500406000016 | Copper nut | 1 |
