breeze33 BZ33-MSAHU24-G2-P 24,000 BTU Indoor Air Handling Unit
FACTORY CODE: 22023111000311

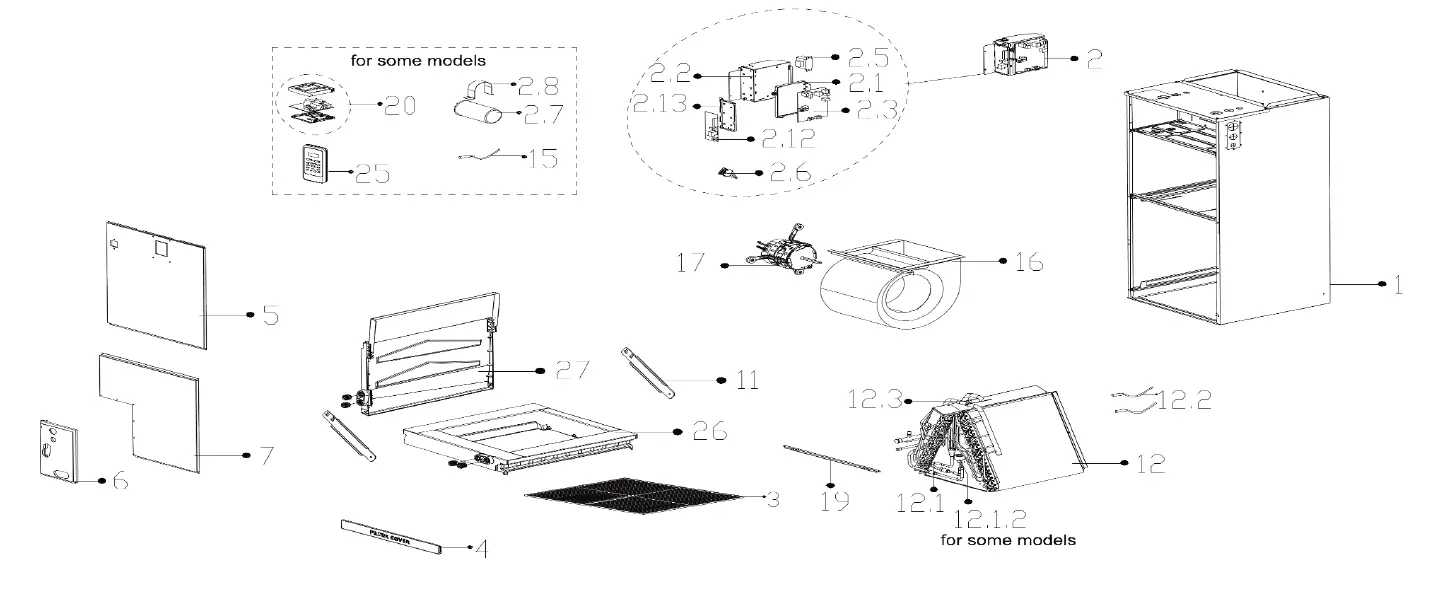

SPARE PARTS
| 1 | 12223100000662 | Chassis assembly | 1 | 11 | 12223100000663 | Bracket for water collector | 2 | |
| 2 | 17223000008202 | Duct electronic control box subassembly | 1 | 12 | 15823100000583 | Evaporator assembly | 1 | |
| 2.1 | 12123000000920 | Installation plate for main board | 1 | 12.1 | 15123000012910 | Evaporator inlet pipe subassembly | 1 | |
| 2.2 | 12223100000631 | E-part box subassembly | 1 | 12.2 | 11201007003441 | Pipe temperature sensor | 1 | |
| 2.3 | 17123000008577 | Duct main control board subassembly | 1 | 12.3 | 15123000012909 | Evaporator outlet pipe subassembly | 1 | |
| 2.5 | 11203103000087 | Linear transformer | 1 | 15 | 11201007003563 | Room temperature sensor | 1 | |
| 2.6 | 17400401000097 | Wire joint | 1 | 16 | 12200101000018 | Fan assembly | 1 | |
| 2.12 | 17122000055387 | Data transfer module control board printed board subassembly | 1 | 17 | 11002015013969 | Brushless DC motor | 1 | |
| 2.13 | 12120300000522 | Bracket of main control board | 1 | 19 | 12223100000665 | Clamp for cover plate assembly | 1 | |
| 3 | 12223000014170 | Air filter | 1 | 20 | 17317100006495 | Wired controller | 1 | |
| 4 | 12223100000654 | Dust mesh | 1 | 25 | 17317000A64085 | Remote controller | 1 | |
| 5 | 12223100000664 | Upper cover plate assembly | 1 | 26 | 12123100000025 | Main water collector assembly | 1 | |
| 6 | 12223100000711 | Clamp for connecting pipe assembly | 1 | 27 | 12123100000026 | Deputy water collector assembly | 1 | |
| 7 | 12223100000666 | Under cover plate assembly | 1 |
Due to continuing product improvements, specifications may change without notice. Visit breeze33.com for current product information.
