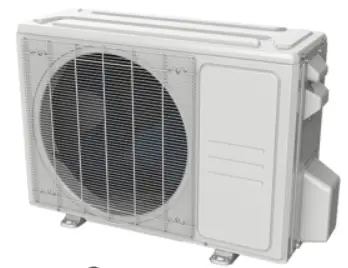

breeze33 BZ33-HP18OUT2-G2-C Mini Split Air Conditioner

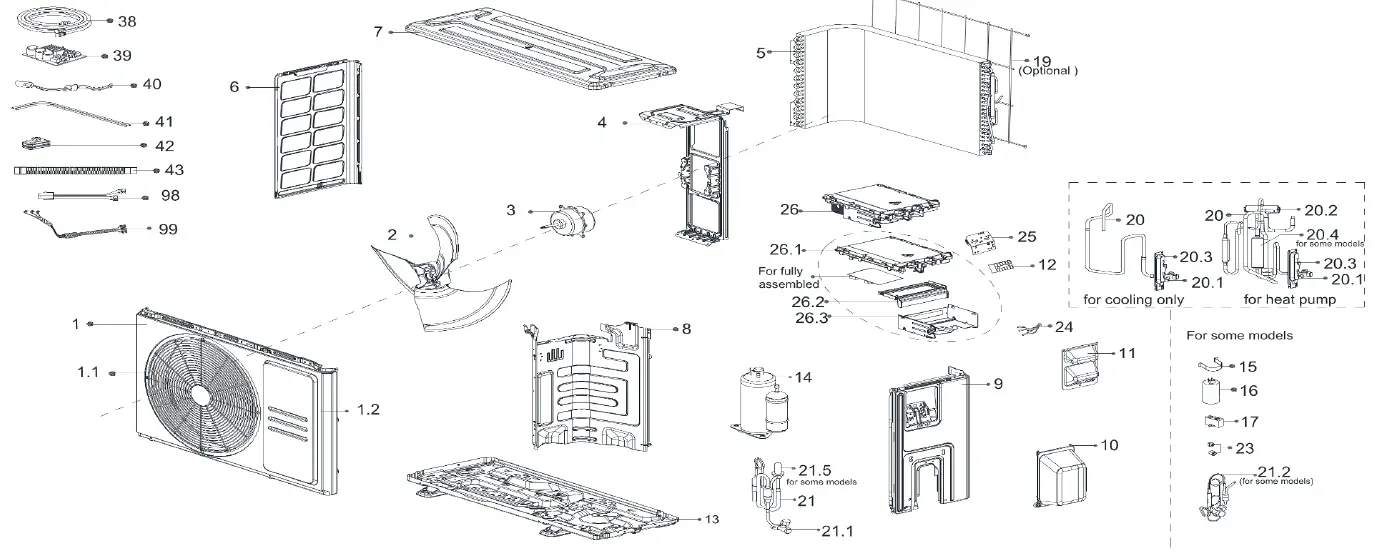

Optional Function Parts
| 1 | 12222000A06298 | Front panel assembly | 1 | 20 | 15422000017792 | 4-Way valve assembly | 1 | |
| 1.1 | 12222000A06299 | Front panel | 1 | 20.1 | 15500204000058 | Gas valve | 1 | |
| 1.2 | 12222000A06299 | Front panel | 1 | 20.2 | 15500216001783 | 4-Way valve | 1 | |
| 2 | 12100105000881 | Axial flow fan | 1 | 20.3 | 12222200005738 | Valve plate | 1 | |
| 3 | 11002015012128 | Brushless DC motor | 1 | 21 | 15422000004813 | Liquid valve assembly | 1 | |
| 4 | 12222000013200 | Supporter of fan motor | 1 | 21.1 | 15500208000028 | Liquid valve | 1 | |
| 5 | 15822000010396 | Condenser assembly | 1 | 23 | 15500406000012 | Copper nut | 1 | |
| 6 | 12222000013197 | Left supporter | 1 | 23 | 15500406000016 | Copper nut | 1 | |
| 7 | 12222000013193 | Top cover assembly | 1 | 24 | 11201011000067 | Combination sensor | 1 | |
| 8 | 12222000014125 | Partition board assembly | 1 | 25 | 12222000002259 | Terminal board | 1 | |
| 9 | 12222000013190 | Right clapboard assembly | 1 | 26 | 17222000037707 | Electronic control box subassembly | 1 | |
| 10 | 12122000007150 | Water collector | 1 | 26.1 | 12122000024223 | Support of electronic control box | 1 | |
| 11 | 12222000010966 | Big handle assembly | 1 | 26.2 | 12122000024222 | Fixing board | 1 | |
| 12 | 17400401000068 | Terminal | 1 | 26.3 | 12222000012106 | Electronic installing box subassembly | 1 | |
| 13 | 12222000014127 | Chassis assembly | 1 | 40 | 17402001000603 | Crankcase electric heating strip | 1 | |
| 14 | 11103020003919 | DC inverter rotary compressor | 1 | 41 | 17402002000464 | Electric heating tube | 1 | |
| 19 | 12222000013667 | Rear net | 1 | 99 | 17401203012697 | Compressor wire subassembly | 1 |
