MINI SPLIT
REPLACEMENT PARTS GUIDE
BZ33-HYP485Z2-G2-P
ID# .3547995
FACTORY CODE: 22022316001165

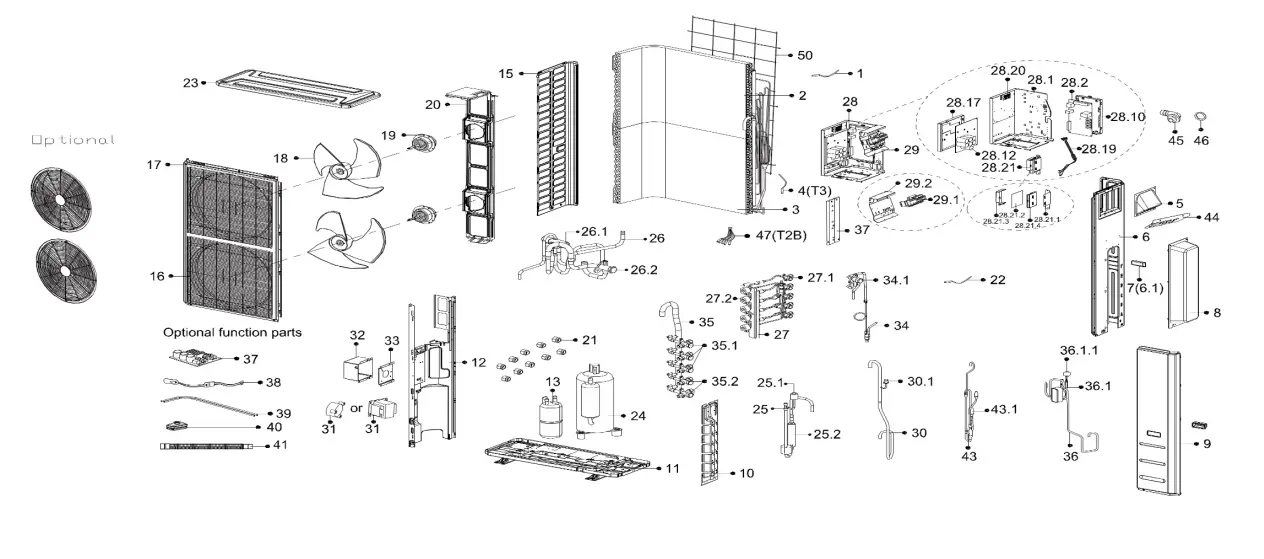

BZ33-HYP485Z2-G2-P Mini Split 48000 BTU Outdoor 5 Zone Hyper Pro Heat Pump Unit
| Part # | Replacement Part | Part Name | Qty |
| 1 | 1.1201E+13 | Room temperature sensor | 1 |
| 2 | 1.5822E+13 | Condenser assembly | 1 |
| 3 | 1.5822E+13 | Condenser assembly | 1 |
| 4 | 1.1201E+13 | Pipe temperature sensor | 1 |
| 5 | 1.22223E+13 | Big handle assembly | 1 |
| 6 | 1.2222E+13 | Rear right clapboard assembly | 1 |
| 6.1 | 1.21007E+13 | Handle | 1 |
| 8 | 1.2122E+13 | Water collector | 1 |
| 9 | 1.2222E+13 | Front right clapboard assembly | 1 |
| 10 | 1.2222E+13 | Valve plate | 1 |
| 11 | 1.2222E+13 | Chassis assembly | 1 |
| 12 | 1.2222E+13 | Partition board assembly | 1 |
| 13 | 1.55005E+13 | Liquid-storage tank | 1 |
| 15 | 1.22222E+13 | Left side plate assembly of cabinet | 1 |
| 16 | 1.2222E+13 | Air outlet grille | 2 |
| 17 | 1.2222E+13 | Front panel | 1 |
| 18 | 1.21001E+13 | Axial flow fan | 2 |
| 19 | 1.1002E+13 | Brushless DC motor | 2 |
| 20 | 1.2222E+13 | Supporter subassembly of fan motor | 1 |
| 21 | 1.55004E+13 | Copper nut | 3 |
| 21 | 1.55004E+13 | Copper nut | 5 |
| 21 | 1.55004E+13 | Copper nut | 5 |
| 22 | 1.1201E+13 | Discharge temperature sensor | 1 |
| 23 | 1.22222E+13 | Top cover assembly | 1 |
| 24 | 1.1103E+13 | DC inverter rotary compressor | 1 |
| 25 | 1.5122E+13 | Discharge pipe assembly | 1 |
| 25.1 | 1.74005E+13 | Pressure switch | 1 |
| 25.2 | 1.55005E+13 | Muffler | 1 |
| 26 | 1.5422E+13 | 4-Way valve assembly | 1 |
| 26.1 | 1.55002E+13 | 4-Way valve | 1 |
| 26.2 | 1.55002E+13 | Gas valve | 1 |
| 27 | 1.5422E+13 | Liquid valve assembly | 1 |
| 27.1 | 1.55002E+13 | Liquid valve | 5 |
| 27.2 | 1.55002E+13 | Electronic expansion valve subassembly | 5 |
| 28 | 1.7222E+13 | Electronic control box subassembly | 1 |
| 28.1 | 1.2222E+13 | Installation plate of electric parts subassembly | 1 |
| 28.2 | 1.7122E+13 | Outdoor main control board subassembly | 1 |
| 28.1 | 1.2122E+13 | Electronic installing box | 1 |
| 28.12 | 1.7122E+13 | Inverter module subassembly | 1 |
| 28.17 | 1.2122E+13 | Electronic installing box | 1 |
| 28.19 | 1.74012E+13 | Compressor wire subassembly | 1 |
| 28.21 | 1.72223E+13 | Middle connection board subassembly | 1 |
| 28.21.1 | 1.2122E+13 | Cover of electronic control box | 1 |
| 28.21.2 | 1.7122E+13 | Inverter control board subassembly | 1 |
| 28.21.3 | 1.2222E+13 | Support of electronic control box | 1 |
| 28.21.4 | 1.2122E+13 | Electronic installing box | 1 |
| 29 | 1.7222E+13 | Terminal board subassembly | 1 |
| 29.1 | 1.74004E+13 | Terminal | 1 |
| 29.1 | 1.74004E+13 | Wire joint | 1 |
| 29.1 | 1.74004E+13 | Terminal | 1 |
| 29.2 | 1.22223E+13 | Terminal installation subassembly | 1 |
| 30 | 1.5122E+13 | Suction pipe assembly | 1 |
| 30.1 | 1.74005E+13 | Pressure switch | 1 |
| 34 | 1.5422E+13 | Liquid valve assembly | 1 |
| 34.1 | 1.55002E+13 | Liquid valve | 1 |
| 35 | 1.5422E+13 | Gas valve assembly | 1 |
| 35.1 | 1.55002E+13 | Gas valve | 3 |
| 35.2 | 1.55002E+13 | Gas valve | 2 |
| 36 | 1.57001E+13 | Plate heat exchanger subassembly | 1 |
| 36.1 | 1.5422E+13 | Electronic expansion valve subassembly | 1 |
| 36.1.1 | 1.55002E+13 | Electric expansive valve | 1 |
| 37 | 1.5122E+13 | Radiator subassembly | 1 |
| 38 | 1.7402E+13 | Crankcase electric heating strip | 1 |
| 39 | 1.7402E+13 | Electric heating tube | 1 |
| 43 | 1.5422E+13 | Electronic expansion valve subassembly | 1 |
| 43.1 | 1.55002E+13 | Electronic expansion valve body | 1 |
| 44 | 1.2222E+13 | Waterproof board | 1 |
| 47 | 1.1201E+13 | Pipe temperature sensor | 1 |
| 50 | 1.2222E+13 | Rear net | 1 |
Due to continuing product improvements, specifications may change without notice.
Visit breeze33.com for current product information.
