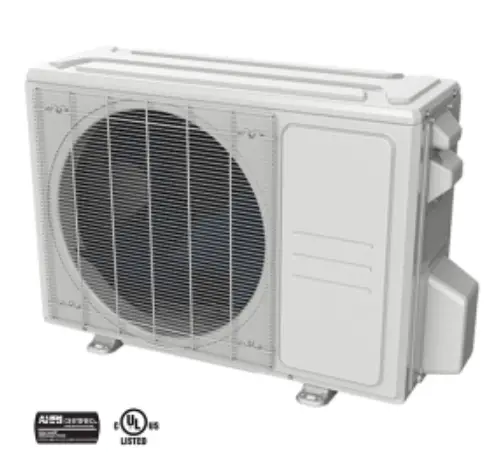

breeze33 BZ33-HYP18OUT2-G2-P Mini Split Single Zone Hyper Pro Unit
Instruction

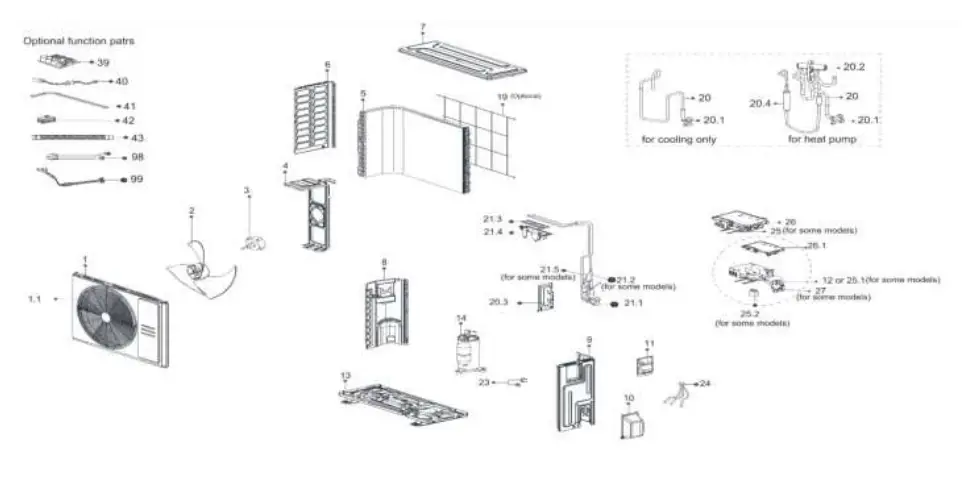

REPLACEMENT PARTS GUIDE
| Part # | Replacement Part | Part Name | Qty | Part # | Replacement Part | Part Name | Qty | |
| 1 | 12222000A06282 | Front panel assembly | 1 | 20.3 | 12222200005738 | Valve plate | 1 | |
| 1.1 | 12222000A06283 | Front panel | 1 | 20.4 | 15122000027215 | Muffler subassembly | 1 | |
| 2 | 12100105000841 | Axial flow fan | 1 | 20.7 | 15122000025163 | Muffler subassembly | 1 | |
| 3 | 11002015000366 | Brushless DC motor | 1 | 21 | 15422000018633 | Liquid valve assembly | 1 | |
| 4 | 12222000012371 | Supporter of fan motor | 1 | 21.1 | 15500208000028 | Liquid valve | 1 | |
| 5 | 15822000009796 | Condenser assembly | 1 | 21.2 | 15500210001848 | Throttle valve element | 1 | |
| 6 | 12222000013472 | Left supporter | 1 | 21.3 | 11203803001176 | Radiator | 1 | |
| 7 | 12222000013465 | Top cover assembly | 1 | 21.4 | 12122000011478 | U-typed support with copper pipe | 1 | |
| 8 | 12222000013245 | Partition board assembly | 1 | 21.5 | 15500213000047 | Electronic expansion valve subassembly | 1 | |
| 9 | 12222000013466 | Right clapboard assembly | 1 | 23 | 15500406000012 | Copper nut | 1 | |
| 10 | 12122000007150 | Water collector | 1 | 23 | 15500406000016 | Copper nut | 1 | |
| 11 | 12222000010966 | Big handle assembly | 1 | 24 | 11201011000188 | Combination sensor | 1 | |
| 12 | 17400401000068 | Terminal | 1 | 25 | 12222000014405 | Terminal board subassembly | 1 | |
| 13 | 12222000014054 | Chassis assembly | 1 | 26 | 17222000038687 | Electronic control box subassembly | 1 | |
| 14 | 11103020006879 | DC inverter rotary compressor | 1 | 26.1 | 12122000008999 | Electronic installing box | 1 | |
| 19 | 12222000013085 | Rear net | 1 | 40 | 17402001000603 | Crankcase electric heating strip | 1 | |
| 20 | 15422000018634 | 4-Way valve assembly | 1 | 41 | 17402002000544 | Tube type electric heater | 1 | |
| 20.1 | 15500204000058 | Gas valve | 1 | 99 | 17401203012697 | Compressor wire subassembly | 1 | |
| 20.2 | 15500216000026 | 4-Way Valve | 1 |
