MINI SPLIT
REPLACEMENT PARTS GUIDE
BZ33-HP09WALL1-G2-C
ID# .3548009
FACTORY CODE: 22022011018365

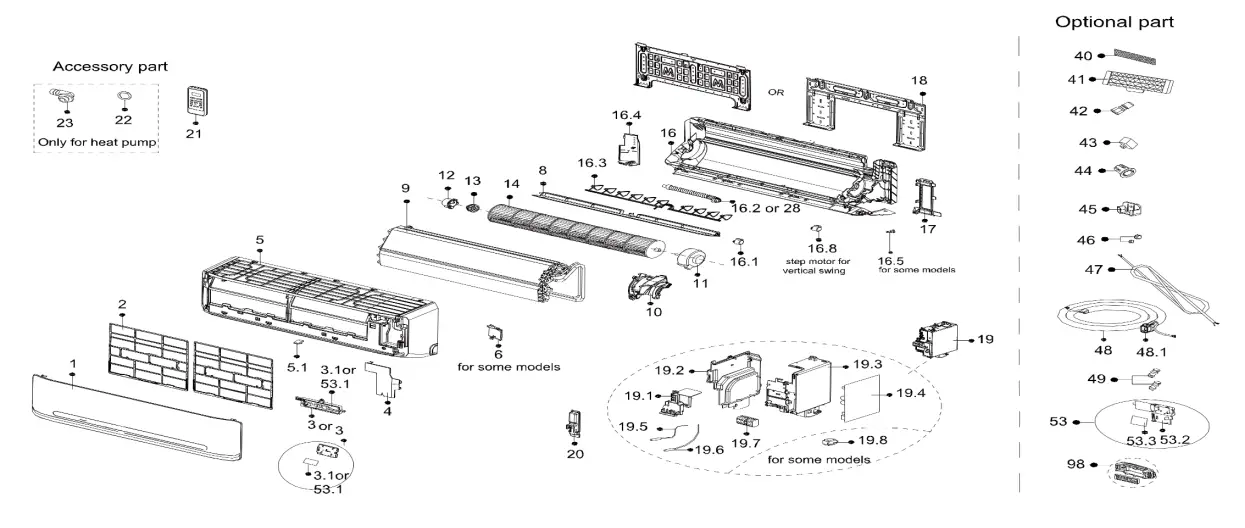

BZ33-HP09WALL1-G2-C Mini Split 9000 BTU Indoor Single Zone Heat Pump Unit
| Part # | Replacement Part | Part Name | Qty |
| 1 | 12122000A74812 | Panel assembly | 1 |
| 2 | 1.21002E+13 | Air filter | 2 |
| 3 | 17222000A07664 | Display box subassembly | 1 |
| 3.1 | 17122000A09452 | Display board subassembly | 1 |
| 4 | 1.2122E+13 | Cover of electrical equipment | 1 |
| 5 | 12122000A65217 | Panel frame assembly | 1 |
| 5.1 | 1.2122E+13 | Screw cap | 1 |
| 6 | 1.2122E+13 | Front cover of chassis (right) | 1 |
| 8 | 1.2122E+13 | Horizontal louver assembly | 1 |
| 9 | 15822000A16941 | Evaporator assembly | 1 |
| 10 | 1.2122E+13 | Fan motor cover | 1 |
| 11 | 1.1002E+13 | Brushless DC motor | 1 |
| 12 | 1.2122E+13 | Bearing holder | 1 |
| 13 | 1.2622E+13 | Bearing components | 1 |
| 14 | 1.21001E+13 | Cross flow fan | 1 |
| 16 | 1.2122E+13 | Chassis assembly | 1 |
| 16.1 | 1.1002E+13 | Stepper motor | 1 |
| 16.2 | 1.21005E+13 | Drain hose | 1 |
| 16.3 | 1.2122E+13 | Vertical vane subassembly | 1 |
| 16.4 | 1.2122E+13 | Front cover of chassis (left) | 1 |
| 16.5 | 1.2122E+13 | Insulated axis | 1 |
| 17 | 1.2122E+13 | Pipe clamp board | 1 |
| 18 | 12222000A00811 | Installation plate | 1 |
| 19 | 1.7222E+13 | Electronic control box subassembly (mid & low-end) | 1 |
| 19.1 | 1.2122E+13 | Electronic control box | 1 |
| 19.2 | 1.2122E+13 | Left cover of electronic control box | 1 |
| 19.3 | 1.2122E+13 | Right cover of electronic control box | 1 |
| 19.4 | 1.7122E+13 | Main control board subassembly | 1 |
| 19.5 | 1.1201E+13 | Room temperature sensor | 1 |
| 19.6 | 1.1201E+13 | Pipe temperature sensor | 1 |
| 19.7 | 1.74004E+13 | Terminal | 1 |
| 20 | 1.2122E+13 | Cover of electronic control box | 1 |
| 21 | 17317000A64074 | Remote controller | 1 |
| 22 | 1.26007E+13 | Seal ring | 1 |
| 23 | 1.21005E+13 | Drain hose | 1 |
| 40 | 1.21002E+13 | Air freshening filter | 1 |
| 42 | 1.55002E+13 | Check valve | 1 |
| 45 | 1.2122E+13 | Bracket of remote controller | 1 |
| 46 | 1.55004E+13 | Copper nut | 1 |
| 46 | 1.55004E+13 | Copper nut | 1 |
| 53 | 17222000A07664 | Display box subassembly | 1 |
| 53.1 | 17122000A09452 | Display board subassembly | 1 |
| 53.3 | 17122000A09452 | Display board subassembly | 1 |
Due to continuing product improvements, specifications may change without notice.
Visit breeze33.com for current product information.
