EPN-51795
FLIP LATCH
Read all instructions prior to installing product.
Refer to manufacturers safety instructions when operating any tools.
To register your product, please visit: barretteoutdoorliving.com

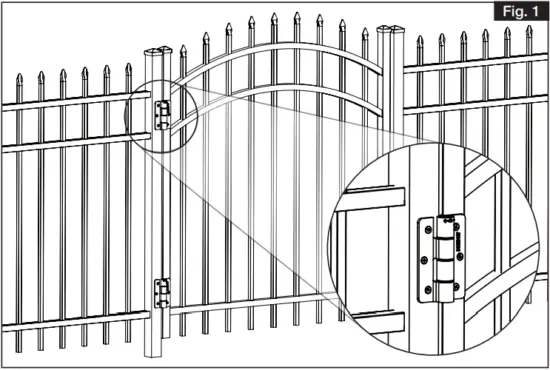

1. Install Boerboel Gate Hinges before installing latch (Fig. 1).

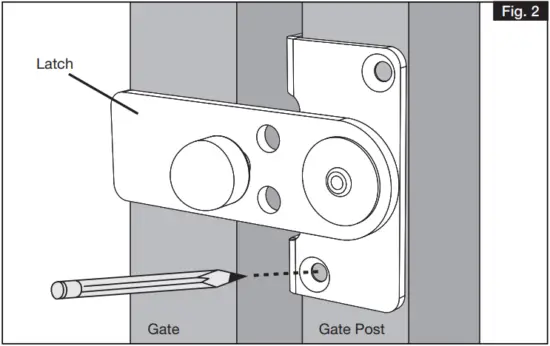

2. Once hinges are installed and gate is aligned, mark pilot holes for latch on post through screw holes. Then drill using 3/32″ bit (Fig. 2).

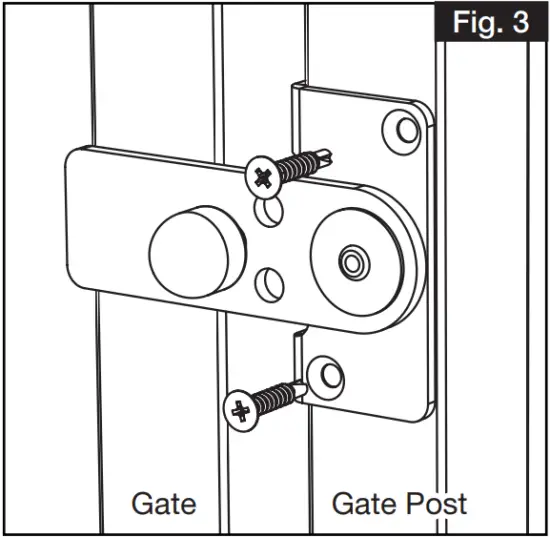

3. Install latch with two 1″ Phillips screws. Align catch to latch and along outside edge of gate. Mark pilot holes for catch on gate through screw holes. Then, drill using a 3/32″ bit (Fig. 3).
4. Install catch with two 1″ Phillips screws (Fig. 4).
WARNING:
• Improper installation of this product can result in personal injury. Always wear safety goggles when cutting, drilling and assembling the product.
• Incorrect installation may cause harm to the gate or individual.
NOTICE:
• DO NOT attempt to assemble the kit if parts are missing or damaged.
• DO NOT return the product to the store, for assistance or replacement parts call: 1-877-265-2220.
Please read the instructions completely before assembling. Retain manual and your dated sales slip for future reference or warranty claims.
To obtain and review a copy of the warranty please visit:
barretteoutdoorliving.com. You may also contact us at 1-877-265-2220 or email [email protected]
TOOLS NEEDED:
| Gate | |
| Safety Glasses | |
| Level | |
| Tape Measure |
| 3/32″ Drill Bit | |
| Pencil | |
| Phillips Driver Bit | |
| Drill |
COMPONENT LIST:
| QTY | Description |

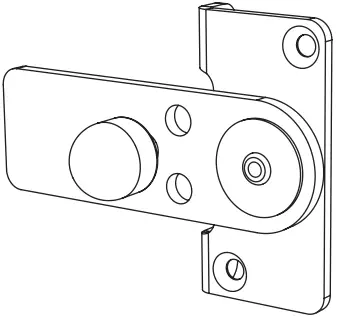

1 | Latch |
1 | Catch |
4 | 1″ Phillips Screws |
Screws Catch Latch
Barrette Outdoor Living
7830 Freeway Circle, Cleveland, OH. 44130
barretteoutdoorliving.com • (877) 265-2220
REV 5.21
