HV3205 Recess Recessed Step Light
Installation Guide
Recess Recessed Step Light Installation Instructions
Product Specifications
| Model No. | HV3205W-SS316 | HV3205W-BLK | HV3205W-WHT | HV3205N-SS316 | HV3205N-BLK | HV3205N-WHT | HV3205C-55316 | HV3205C-BLK | HV3205C-WHT | |
| HV3215W-55316 | HV3215W-BLK | HV3215W-WHT | HV3215N-SS316 | HV3215N-BLK | HV3215N-WHT | HV3215C-55316 | HV3215C-BLK | HV3215C-WHT | ||
| Name | Races | |||||||||
| Material | 316StainlessSteel | Aluminum | 316StainlessSteel | Aluminum | 316StainlessSteel | Aluminum | ||||
| Colour | Stainless Steel | Black | White | Stainless Steel | Black | White | StainlessSteel | Black | White | |
| IP Rating | IP67 | |||||||||
| Input Voltage | 12y DC | |||||||||
| Lamp Base | Built-in LED | |||||||||
| LampWattage | 1x 3w | |||||||||
| Colour Temp | 3000k | 4000k | 5500k | |||||||
| Lumens | 1801m | 1851m | 190Im | |||||||
| CRI | > 80 | |||||||||
| Wiring | Parallel | |||||||||
| Dimmable | No | |||||||||
| Warranty | 3 Years Replacement* | |||||||||

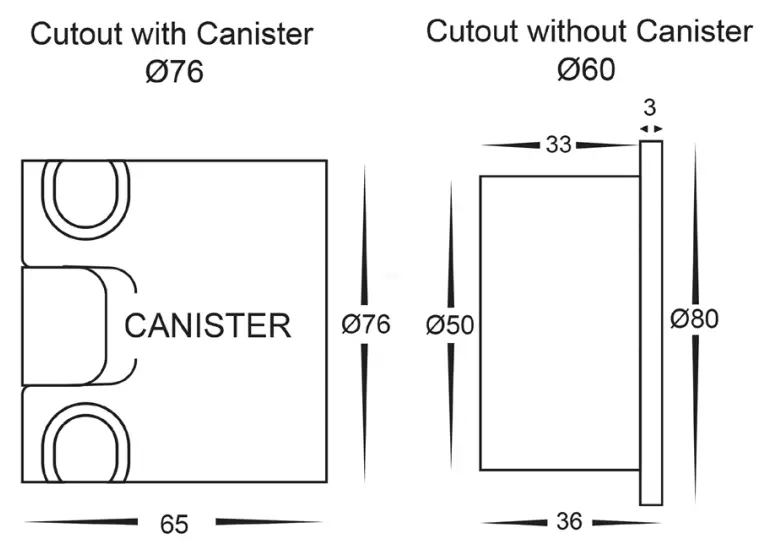

HV3205 Dimensions
HV3215 Dimensions
Important Safety Issues:
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required and cannot be installed more than 25m from LED Driver, if not within this allowance warranty will be voided.
- Aluminum and 304SS fittings must not be installed within 5km of any saltwater environments.
- All 316 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on the fitting. (Warranty does not cover Tea Staining)
- Aluminum and 304SS fittings must not be installed within 5km of any saltwater environments.
- All o-rings and seals must be in place correctly to maintain the warranty.
- These instructions may be updated at any time due to product improvements, Please visit the website for the most current installation instructions.
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off )
- Make a hole where the fitting is to be placed using dimensions provided on line drawings,
- Using an appropriate 12v DC LED Driver – DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
- If installing into concrete, insert the canister making sure it is flush with the wall.
- Connect the cable – If more than one fitting is installed, wiring must be done in parallel.
- Strip back the cable on both fitting and cable run and twist the positive cables together. Then connect neutral cables together
- Solder all joins using solder and either a heat gun or butane gas torch.
- Cover connections using an adhesive-lined heat shrink or gel cap to make the connection watertight. Failure to do this will void the warranty.
- Heat the heat shrink or crimp the gel cap making sure all connections are covered.
- Insert fitting into hole or canister pushin on clips and inserting into position
- If installed outside, apply silicon around the edge of the fitting to prevent any water from getting inside to electrical connections.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
Warranty Terms & Conditions*
Additional Information
 |  |
| https://havit.com.au/pages/warranty-terms-and-conditions | https://havit.com.au/ |
Contact Details:
143 Beauchamp Road
Matraville NSW 2036
Australia
Tel: 02 9381 8300
Fax: 02 9666 8881
Email: [email protected]
Web: www.havit.com.au
